3.3 Sensor connections
The electronic circuits of the 762 VITO Interfaces are protected against electrical static
discharge during transport and storage by metal jumpers placed on the temperature probe
connectors. A dummy resistor of 10 is placed between the red and brown wires (VITO-
MTT & VITO-LT) to detect the absence of a temperature probe.
There is also placed a dummy capacitor on the water probe connectors to detect the
absence of a water probe. Refer to figure 11.
Depending on the type of probe, the jumpers and dummy resistor and/or the dummy
capacitor must be removed. Refer to table below.
Jumpers and dummy
resistor on temperature
probe connectors
Dummy capacitor on
water probe
connectors
764/767 VITO temperature
probe
766/768 VITO temperature &
water probe
front module (temp.):
remove
front module (temp.):
n.a.
rear module (water):
do not remove
rear module (water):
remove

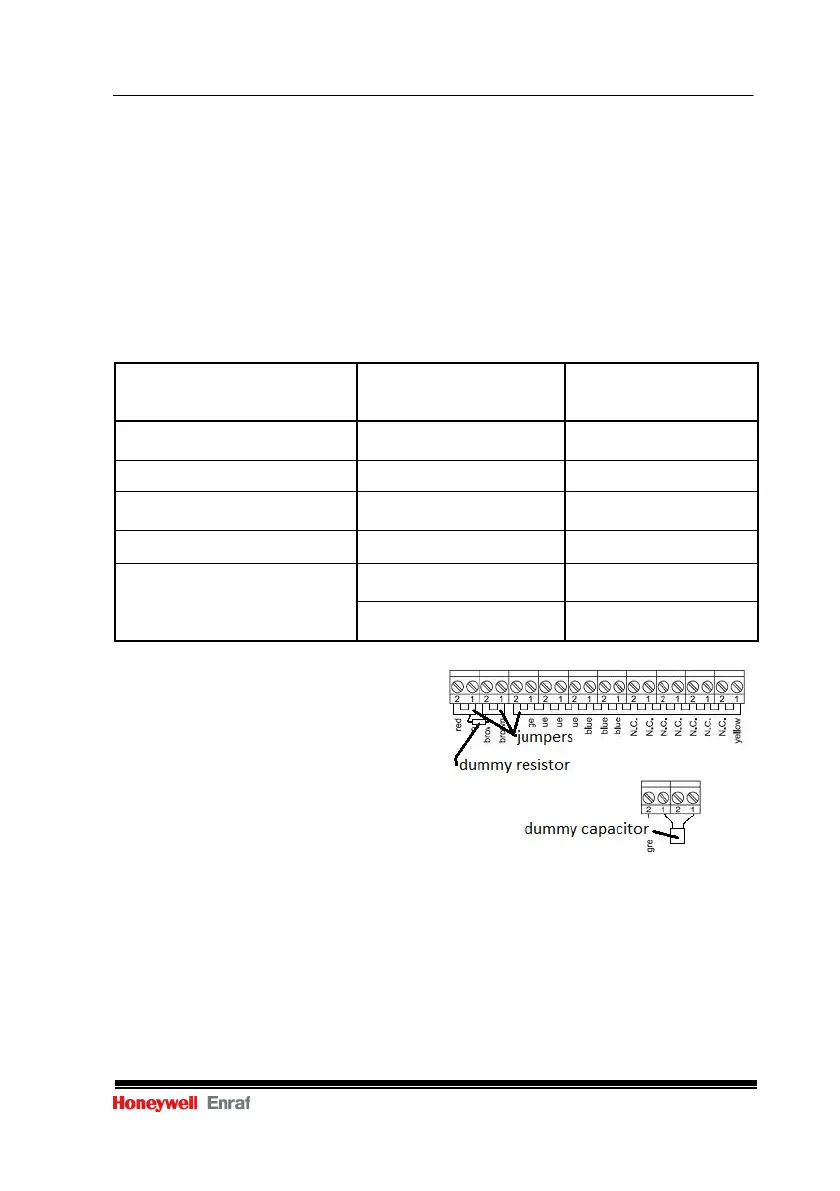

Figure 11 Location of jumpers and
dummy resistor/capacitor
Cut the temperature and water probe wiring to approximate length
Note:
It is recommended to loop the wires one time and strip each wire
approximate 10 – 12 mm (
6
/
16
– ½”).
Use the proper tools for removal of the insulation and make sure the
copper core is no carved.
