GB
MU0H-1420 GE23 R0618 9 Honeywell GmbH

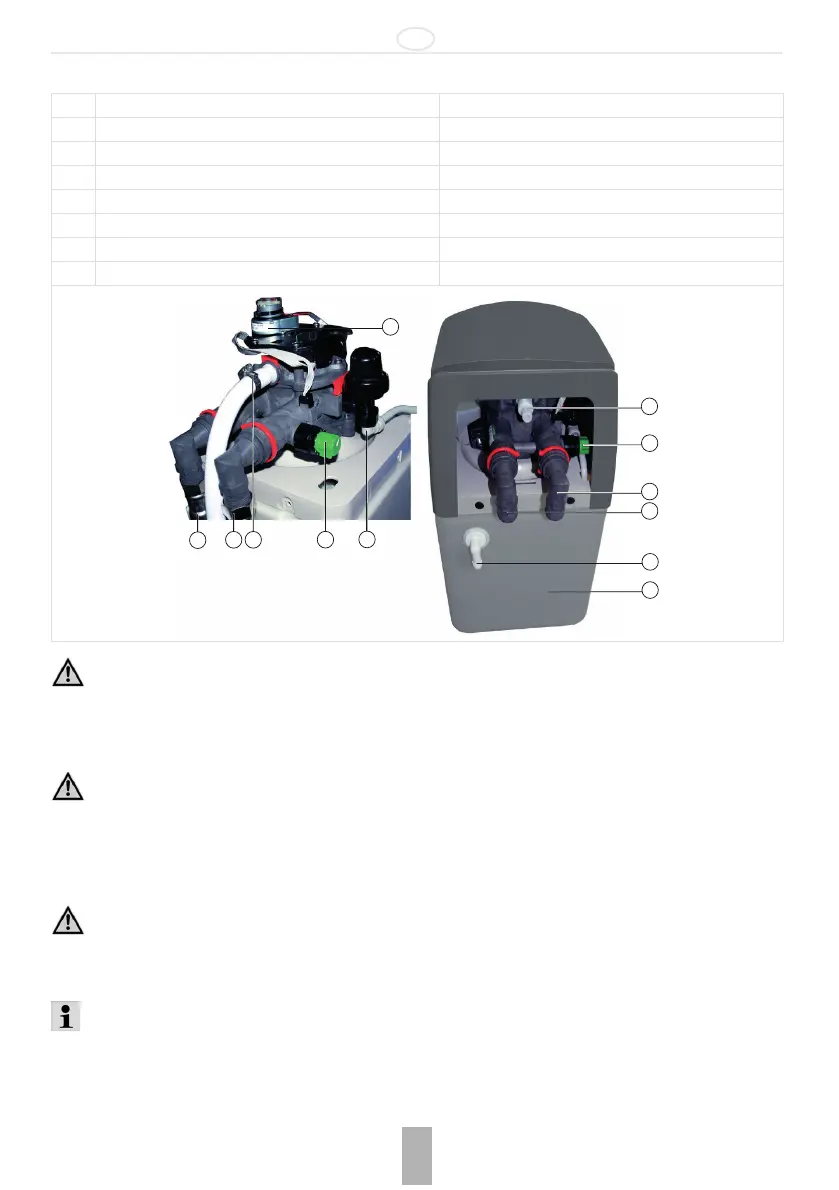

3.5 Technical overview of device
CAUTION!
The waste water system must be at least DN50!
Use only the flexible DN20 hoses included in the
delivery. Ensure a correct sealing and setting of all
pipes before first commissioning.
CAUTION!
The rinse water hose and the hose on the safety
overflow of the brine tank need to be mounted acc.
to EN 1717 and EN 14743 with at least 20 mm
distance (free outflow) to the highest possible
drainage water level.
CAUTION!
Drainage from the overflow of the brine tank should
always be connected. Drain connections according
to standard EN 1717.
Protection of device: To increase the lifetime of your
softener ensure it is kept in a clean, dry place with an
ambient temperature between 5 and 40 °C to avoid
damage to resin or components.
3.6 Installing your softener
1. Positioning the water softener:
It is very important to establish the supply water pressure
before installing the water softener.
If the supply water pressure is low then the water softener
may not operate effectively.
If it is too high, then components inside the unit may be
damaged.
It should be noted that supply water pressure can increase at
periods of low water usage e.g. overnight.
If therefore, the daytime pressure exceeds 8.0 bar or if you
are unsure about pressure, then a pressure reducing valve
should be fitted.
Where the pressure is less than 1.0 bar a booster pump may
be required.
2. Inlet and outlet connections:
With the bypass valve open and the inlet/outlet valves closed
the unit can be connected to the plumbing system.
Arrows on the inlet and outlet piping from the valve will
confirm the direction of flow.
Connections can be made with either, conventional copper
tube and fittings, or the high flow flexible hoses supplied,
ensure hoses are not kinked as this may restrict flow.
1 Servo motor for control valve
2 Waste water connection external drainage of waste water
3 Blending control flow regulation
4 Outlet connection (softened water) for flexible hose, with thread
3
/
4
"
5 Inlet connection (feed water) for flexible hose, with thread
3
/
4
"
6 Overflow connection for flexible hose, threadless
3
/
4
"
7 Brine storage cabinet salt filling
8 Connection to brine internal connection
1
2
3
4
5
6
7
8
3
4
2
5
