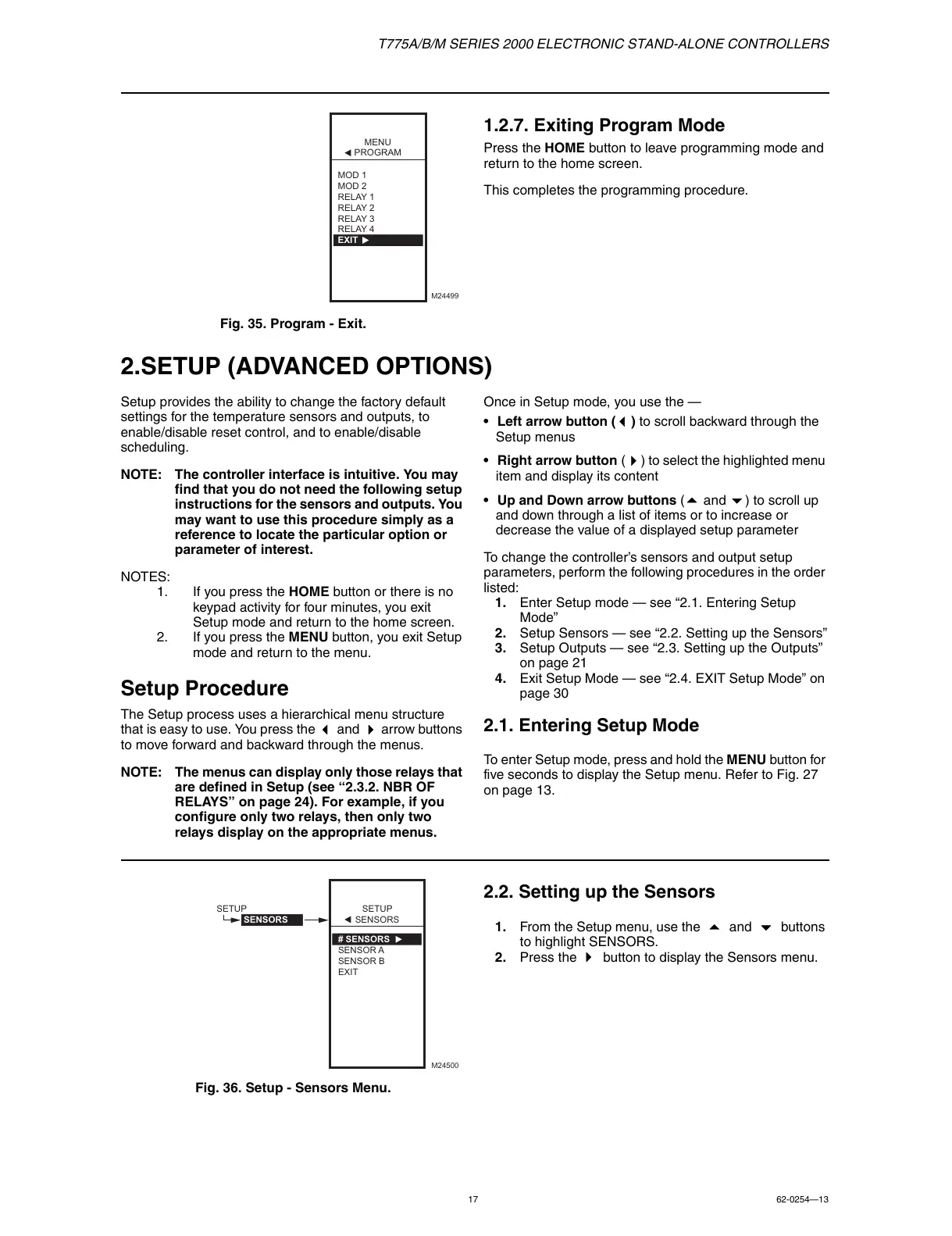

T775A/B/M SERIES 2000 ELECTRONIC STAND-ALONE CONTROLLERS
17 62-0254—13
Fig. 35. Program - Exit.
1.2.7. Exiting Program Mode
Press the HOME button to leave programming mode and
return to the home screen.
This completes the programming procedure.
2.SETUP (ADVANCED OPTIONS)
Setup provides the ability to change the factory default
settings for the temperature sensors and outputs, to
enable/disable reset control, and to enable/disable
scheduling.
NOTE: The controller interface is intuitive. You may
find that you do not need the following setup
instructions for the sensors and outputs. You
may want to use this procedure simply as a
reference to locate the particular option or
parameter of interest.
NOTES:
1. If you press the HOME button or there is no
keypad activity for four minutes, you exit
Setup mode and return to the home screen.
2. If you press the MENU button, you exit Setup
mode and return to the menu.
Setup Procedure
The Setup process uses a hierarchical menu structure
that is easy to use. You press the
and arrow buttons
to move forward and backward through the menus.
NOTE: The menus can display only those relays that
are defined in Setup (see “2.3.2. NBR OF
RELAYS” on page 24). For example, if you
configure only two relays, then only two
relays display on the appropriate menus.
Once in Setup mode, you use the —
• Left arrow button (
) to scroll backward through the
Setup menus
• Right arrow button (
) to select the highlighted menu
item and display its content
• Up and Down arrow buttons (
and ) to scroll up
and down through a list of items or to increase or
decrease the value of a displayed setup parameter
To change the controller’s sensors and output setup
parameters, perform the following procedures in the order
listed:
1. Enter Setup mode — see “2.1. Entering Setup
Mode”
2. Setup Sensors — see “2.2. Setting up the Sensors”
3. Setup Outputs — see “2.3. Setting up the Outputs”
on page 21
4. Exit Setup Mode — see “2.4. EXIT Setup Mode” on
page 30
2.1. Entering Setup Mode
To enter Setup mode, press and hold the MENU button for
five seconds to display the Setup menu. Refer to Fig. 27
on page 13.
Fig. 36. Setup - Sensors Menu.
2.2. Setting up the Sensors
1. From the Setup menu, use the and buttons
to highlight SENSORS.
2. Press the
button to display the Sensors menu.
MENU
PROGRAM
MOD 1
MOD 2
RELAY 1
RELAY 2
RELAY 3
RELAY 4
EXIT
M24499
SETUP
SENSORS
SETUP
SENSORS
# SENSORS
SENSOR A
SENSOR B
EXIT
M24500
