4
7

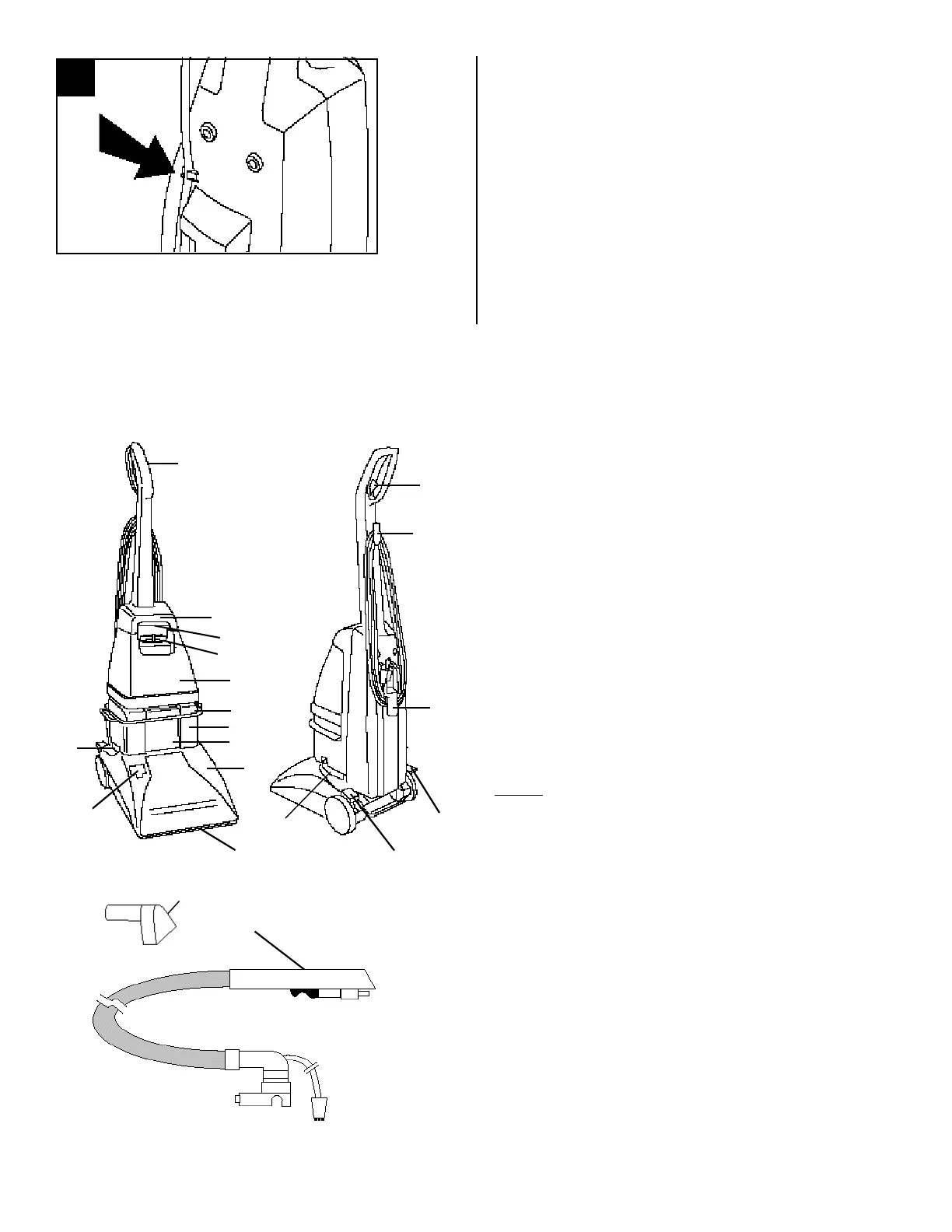

Press or slide cord into cord clip on back of handle. Pull cord
tight (Fig. 7)
The assembled deep cleaner will look like the drawing below.
Carpet cleaning
machine description
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
1. Hand grip
2. Solution trigger: press to release clean solution.
3. Cord hooks: wrap cord around hooks for storage.
The top hook can be rotated right or left for quick and easy
cord release.
4. Carrying handle
5. Clean solution tank handle
6. Clean solution tank cap/ measuring cup
7. Clean solution tank: holds cleaning solution.
8. Recovery tank lid
9. Recovery tank: holds dirty solution.
10. Recovery tank “front panel”
11. Hood
12. Nozzle
13. Upholstery and stair cleaning connection (some models
only): push door open to connect stair/upholstery tool
“solution tube”.
14. Recovery tank latches: one on each side of tank.
15. ON/OFF pedal
16. Handle release pedal: step on pedal to lower handle
to operating position.
17. Stair/upholstery nozzle
18
19
20
21
HOSE: Stretch hose out and identify the following:
18. Nozzle connector end of hose
19. Trigger
20. Converter end of hose
21. Solution hose
17
This deep cleaner is intended for household use.
