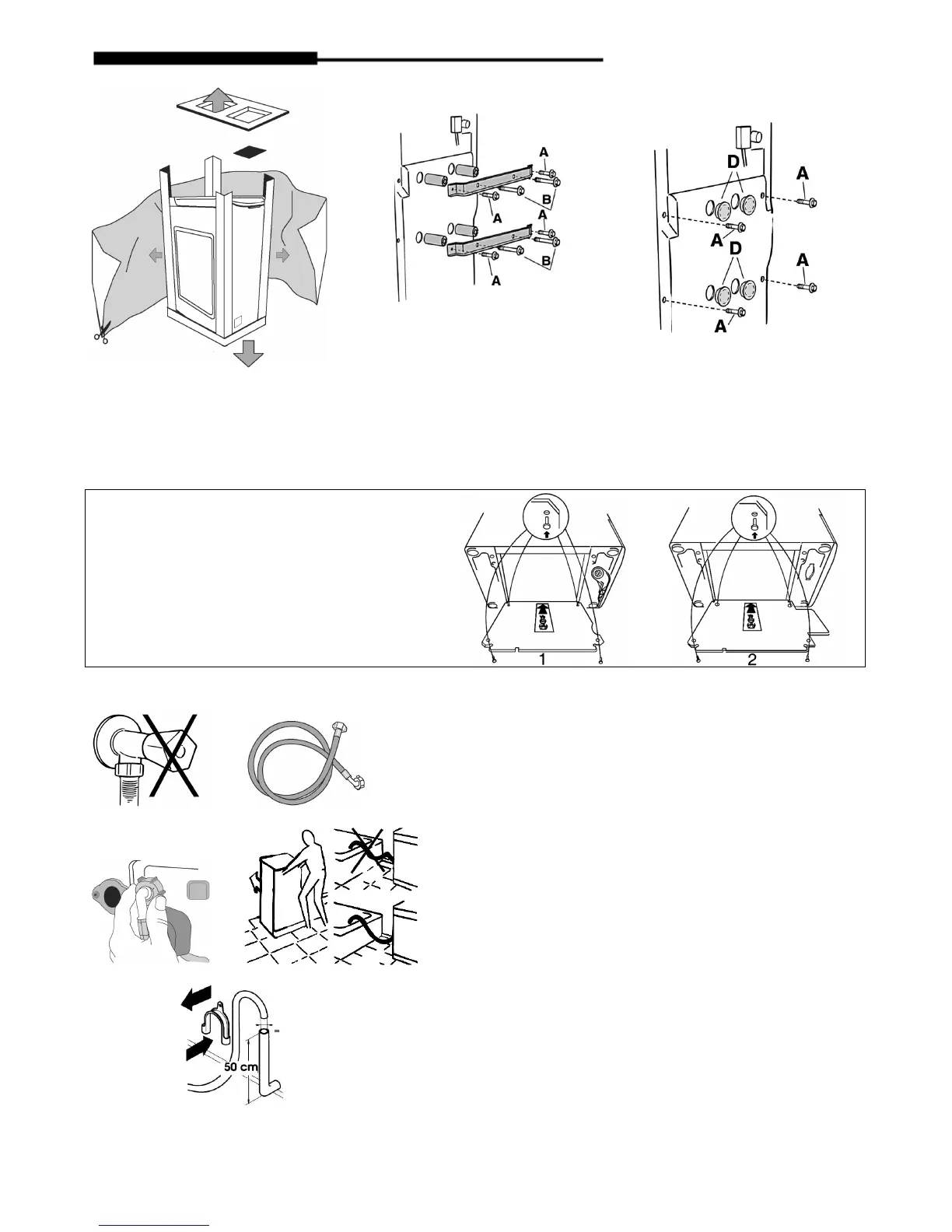

• Unpack the appliance.
• Remove the 4 screws (A) from
both clamps and the 4
screws (B).
• Replace the 4 screws (A) and
fit the trims provided (D).
If your model offers this function:
Position the protection sheet as shown in the
diagram.
1.- Washing machine with wheel trolley.
2.- Washing machine without wheel trolley.
ATTENTION: DO NOT TURN THE TAP ON
• The washing machine should be connected to the
water mains via the new tube supplied with the
appliance (inside the drum). Do not use the old tube for
this purpose.
• Connect one end of the water inlet pipe with the elbow
bend to the electrovalve (top rear part of the machine)
and the other end to a tap or a plumbed-in 3/4" gas
threaded connection.
• Place the washing machine close to the wall, ensuring
that there are no bends or kinks anywhere in the tube.
Hook the outlet pipe to the edge of the sink or preferably
to a fixed drainage outlet of a diameter greater than that
of the outlet pipe and at a height of min. 50 cm. and a
maximum of 75 cm. from the floor.
If necessary, use the curved accessory to attach and
support the outlet pipe more securely.
5
