Connection of the machine to the
drain
This machine must be connected in accordance with the water supply
regulations. Water byelaws prohibit connection to a surface water drain.
Decide which plumbing option suits you best then follow the instructions
below.
Option 1
Waste pipe connection (waste trap)
Fit the hooked end support to the outlet pipe. Position at least 800mm off the
floor.
After removing the blanking plug or cutting the membrane from the waste
system securely fix the outlet pipe to the drainage system, using a hose clip.
Secure the hooked end support up to at least 800mm to avoid water being
drawn back into the machine.
10
All machines are tested with water prior to leaving the
factory so a small amount of water may remain in the
drum and drain hose.
Flooding could occur if any part of the installation is
not completed correctly.

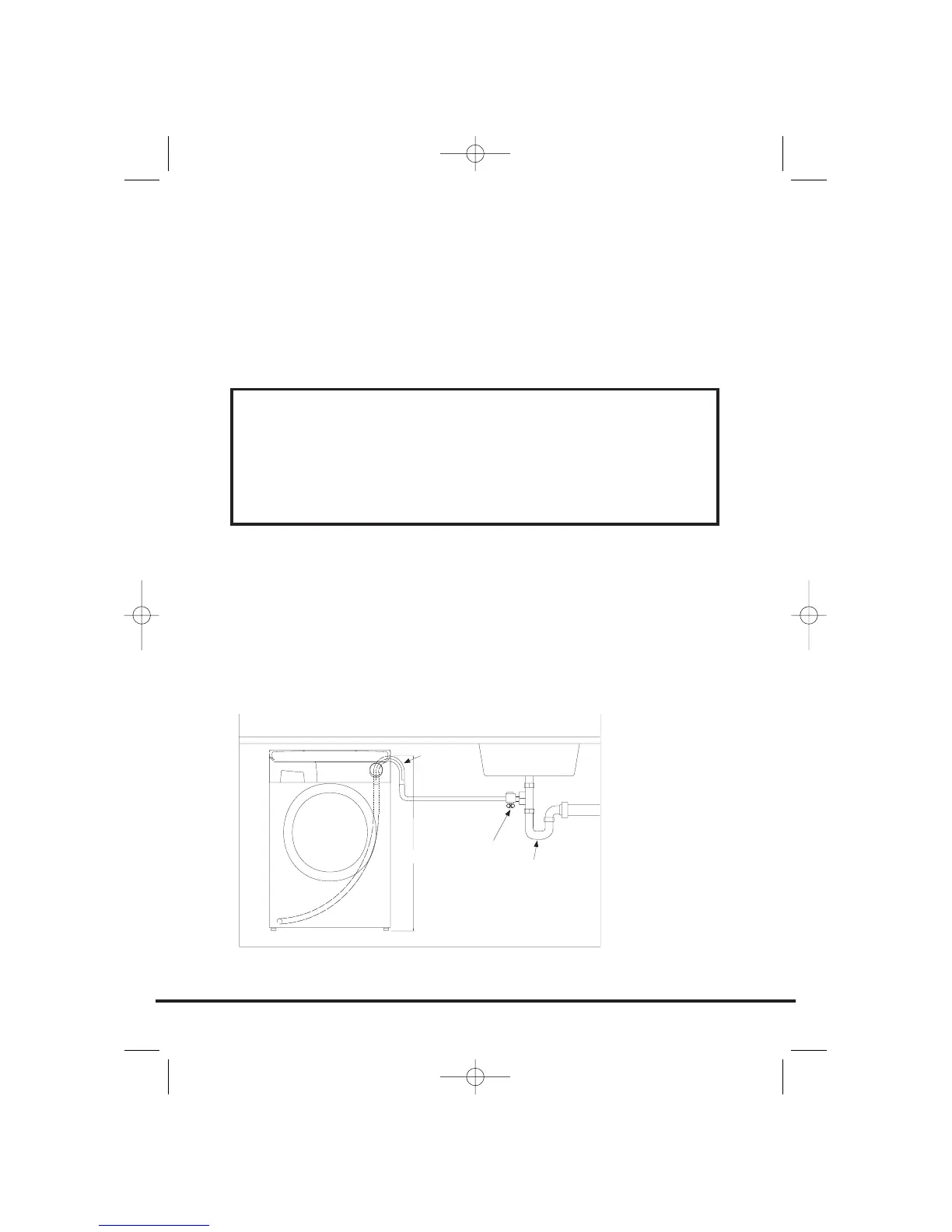

800 mm
hose clip
hooked end support
sink
flexible
discharge hose
trap with hose
adaptor
