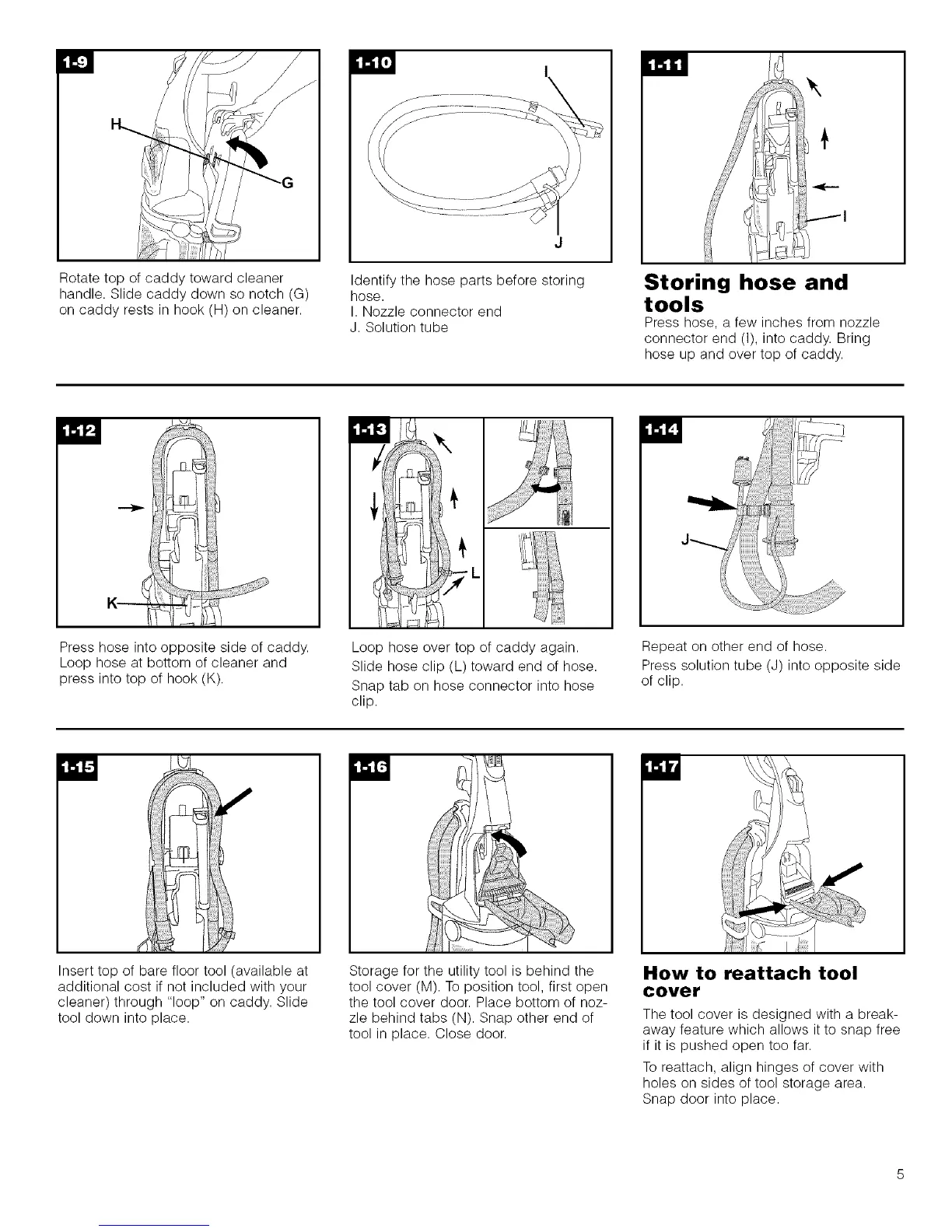

Rotate top of caddy toward cleaner
handle. Slide caddy down so notch (G)
on caddy rests in hook (H) on cleaner.
Identify the hose parts before storing
hose.
I. Nozzle connector end
J. Solution tube
Storing hose and
tools
Press hose, a few inches from nozzle
connector end (I), into caddy. Bring
hose up and over top of caddy.
EEEIEEP_
+
yL_
Press hose into opposite side of caddy.
Loop hose at bottom of cleaner and
press into top of hook (K).
Loop hose over top of caddy again.
Slide hose clip (L) toward end of hose.
Snap tab on hose connector into hose
clip.
Repeat on other end of hose.
Press solution tube (J) into opposite side
of clip.
EEkJ
EEl-1
Insert top of bare floor tool (available at
additional cost if not included with your
cleaner) through "loop" on caddy. Slide
tool down into place.
Storage for the utility tool is behind the
tool cover (M). To position tool, first open
the tool cover door. Place bottom of noz-
zle behind tabs (N). Snap other end of
tool in place. Close door.
How to reattach tool
cover
The tool cover is designed with a break-
away feature which allows it to snap free
if it is pushed open too far.
To reattach, align hinges of cover with
holes on sides of tool storage area.
Snap door into place.
