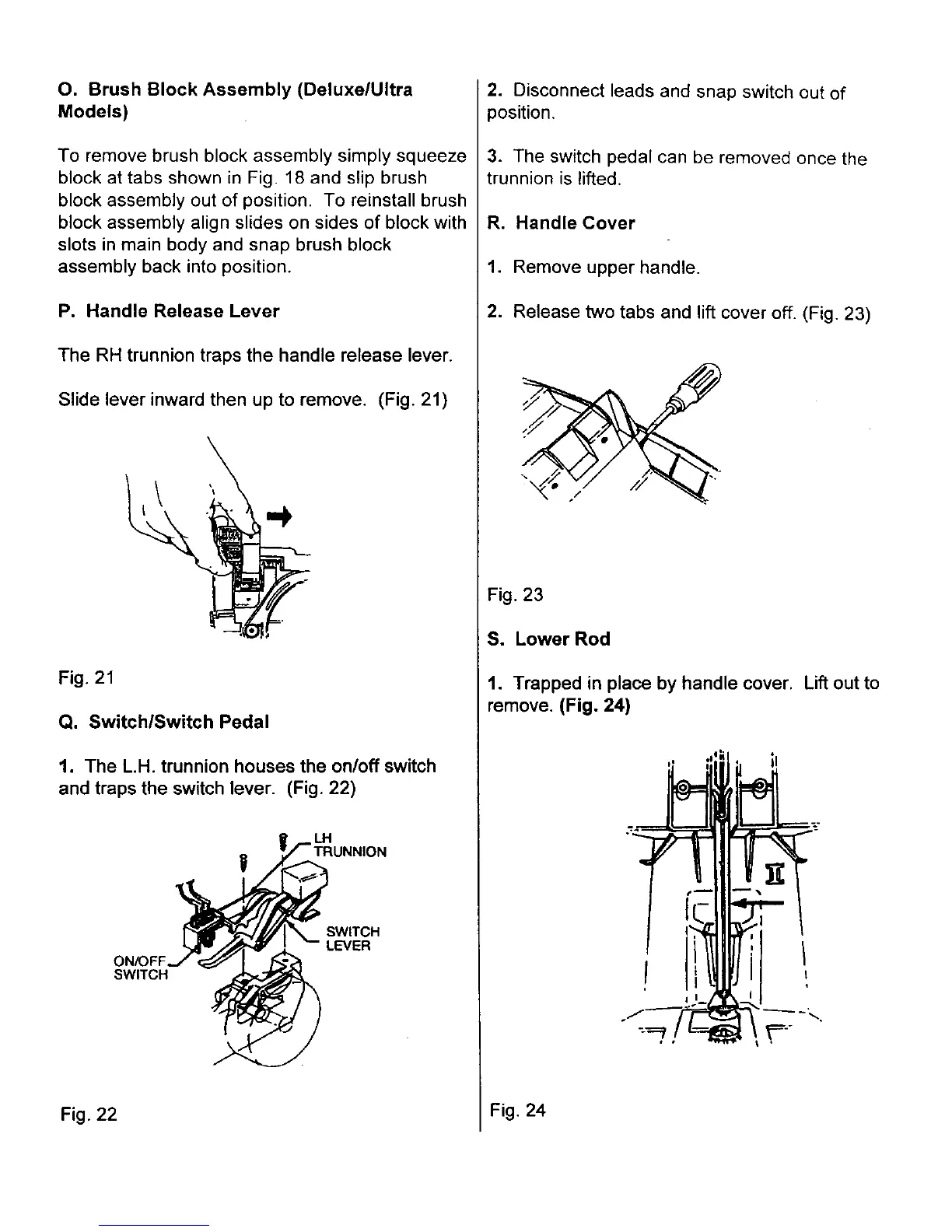

O. Brush Block Assembly (Deluxe/Ultra
Models)
To remove brush block assembly simply squeeze
block at tabs shown in Fig. 18 and slip brush
block assembly out of position. To reinstall brush
block assembly align slides on sides of block with
slots in main body and snap brush block
assembly back into position.
P. Handle Release Lever
The RH trunnion traps the handle release lever.
Slide lever inward then up to remove. (Fig. 21)
Fig. 21
Q. SwitchlSwitch Pedal
1. The L.H. trunnion houses the on/off switch
and traps the switch lever. (Fig. 22)
TRUNNION
SWITCH
SWITCH
2. Disconnect leads and snap switch out of
_osition.
3. The switch pedal can be removed once the
trunnion is lifted.
R. Handle Cover
1. Remove upper handle.
2. Release two tabs and lift cover off. (Fig. 23)
Fig. 23
S. Lower Rod
1. Trapped in place by handle cover. Lift out to
remove. (Fig. 24)
:7.
Fig. 22 Fig. 24
