4.18 Turn tool so bottom faces up. Rotate the
latches (A) on either side of tool.
4.19 Remove bottom plate (B).
4.20 Remove any debris and/ or hair from brushroll.
Replace bottom plate by aligning tabs along front
edge of tool. Rotate latches back into locked position.
A
4.19
B
HOSE: How to Clean
4.17
A
4.17 To remove hose for tool use, press the hose release button (A) and pull
hose end out.
Clear away debris or obstructions from hose. Do not use sharp objects to clean
out hose as they can cause damage. To lock back into place, push hose into
hose tube until you hear a click.
BRUSHROLL: How to Clean

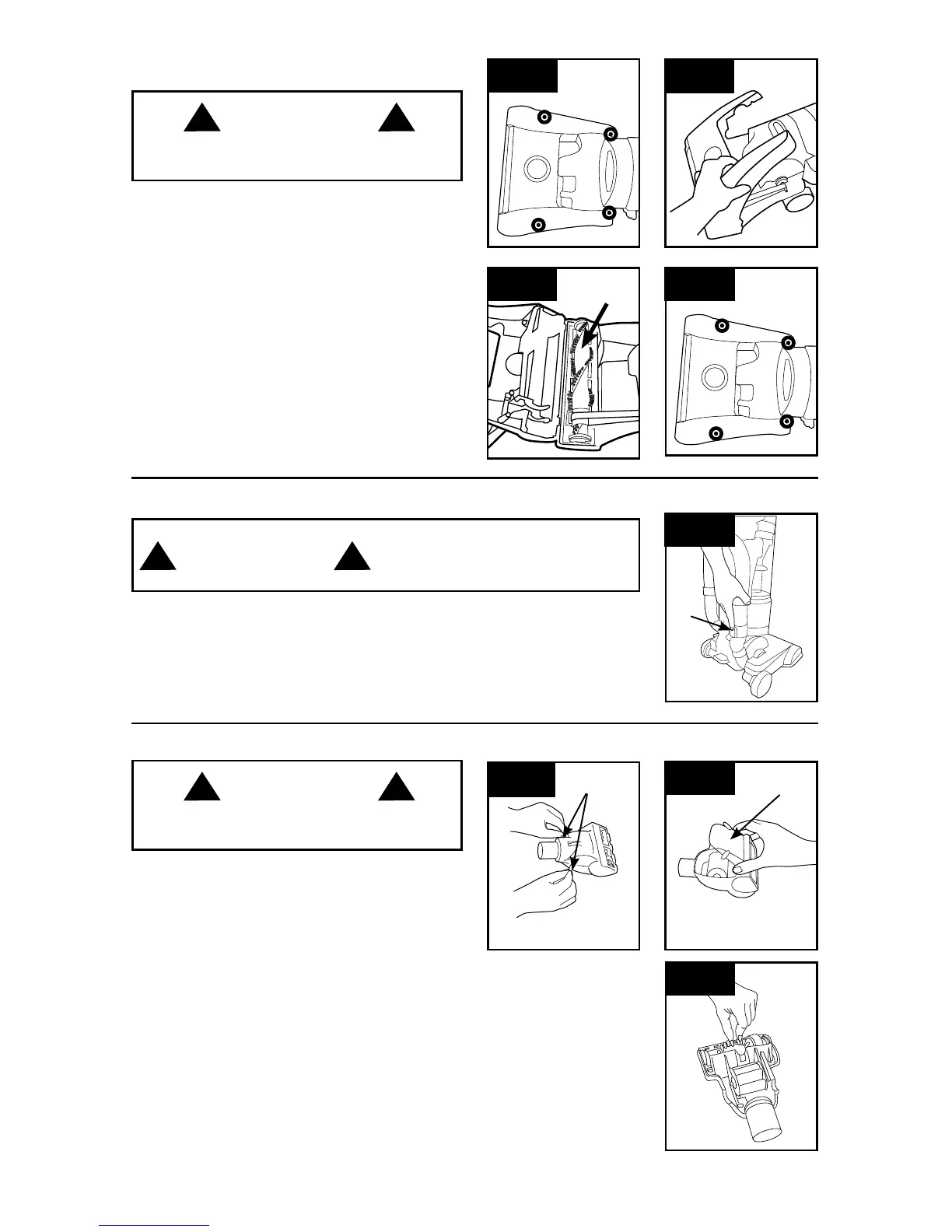

4.13 Depress handle release pedal and place
handle in low position. Lay vacuum down in
hortizontal position with nozzle facing down as in
Fig. 4.14. Remove (4) screws on nozzle lid.
4.14 Pivot off nozzle cover.
4.15 Remove any debris and/or hair from brushroll
(A).
4.16 Reposition nozzle plate cover and insert (4)
screws.
4.13
4.14
4.15
CAUTION
! !
CAUTION
! !
To reduce the risk of injury from moving parts
- Unplug before servicing.
To reduce the risk of injury from moving parts
- Unplug before servicing.
Actual model may vary from images shown.
A
4.16
WARNING
! !
To reduce the risk of personal injury
- Unplug before cleaning or servicing.
