Polarized plug
To reduce the risk of electric shock,
this appliance has a polarized plug
(one blade is wider than the other).
This plug will fit in a polarized outlet
only one way. If the plug does not fit
fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified
electrician to install the proper outlet.
Do not change the plug in any way.
2. How to use
5
Cleaner description

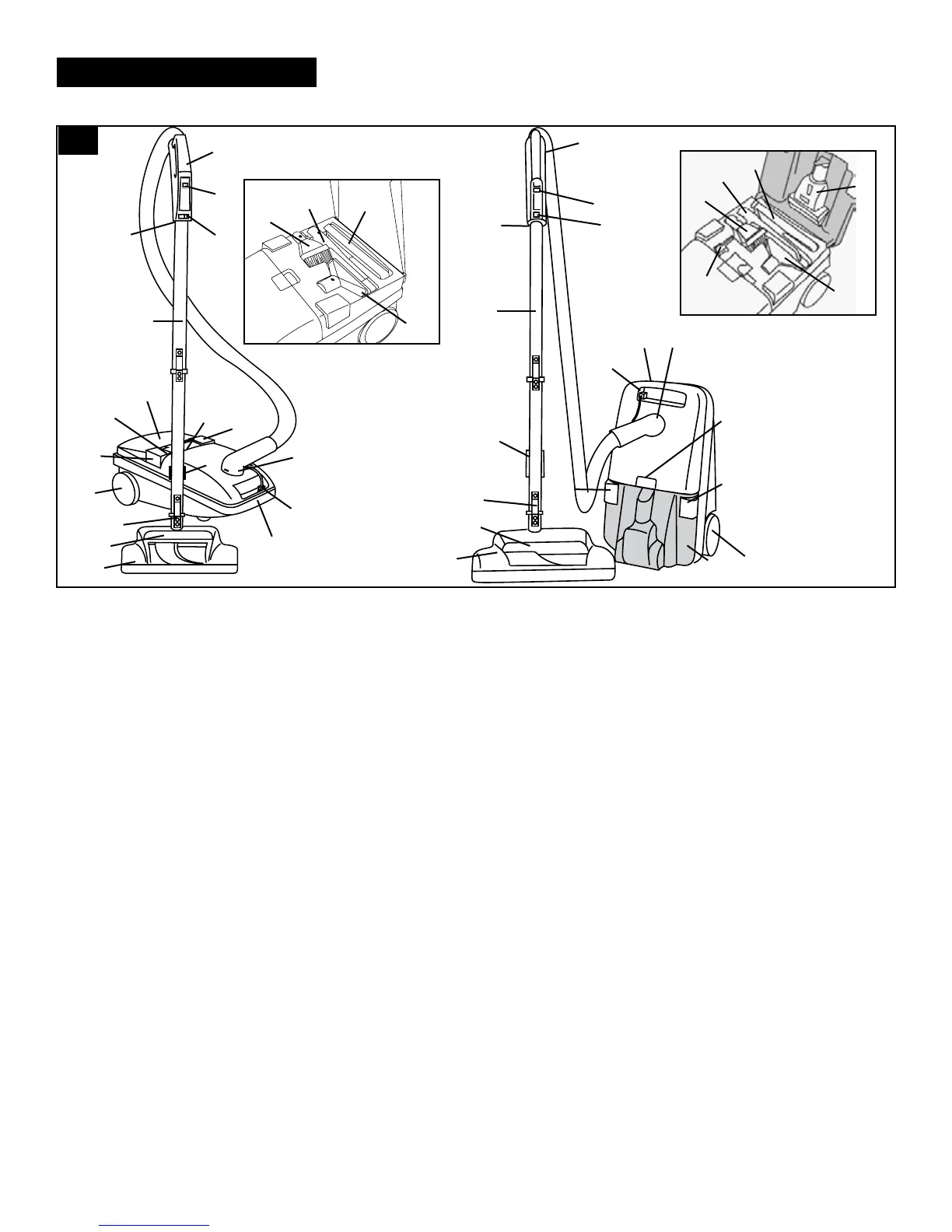

The assembled cleaner will look like one of these drawings.
Operate cleaner only at voltage
specified on data plate on bottom
of cleaner.
A. Canister cleaner
B. WindTunnel™ powered nozzle
C. Extra paper bag (one bag is
installed in cleaner)
D. Extension wands and hose
1. WindTunnel™ carpet and floor
power nozzle: automatically ad-
justs to different carpet pile heights.
2. Headlight
3. Spring latch: locks extension
wands together or locks wand to
nozzle or tool.
4. Wand storage clip: place
cleaner on end and hook clip onto
bottom of cleaner.
5. Extension wands: used with rug
and floor nozzle. One or both
wands may be used with cleaning
tools.
6. Wand/tool latch: used to lock
hand grip to extension wands or
cleaning tools.
12. Hard floor tool
13. Furniture nozzle
14. Powered hand tool: stores in
tool lid (some models)
15. Large wheels: provide easy
towing when cleaner is pulled over
carpet, area rugs and door sills.
16. Cord rewind pedal: step on
pedal to rewind cord for storage.
1
2
3
4
5
6
9
10
11
12
15
16
17
18
19
20
21
22
23
13
7
8
7. Floor surface selector but-
ton:
push button toward RUG for carpet
cleaning or BARE for hard surface
floor cleaning.
8. Hand grip
9. Receptacle: connects power
nozzle cord underneath hand grip.
10. Dusting brush
11. Crevice tool
2-1
S3630
S3639
Continued fl
1
2
3
4
5
6
9
10
11
12
14
15
22
20
17
18
19
16
21
23
13
8
7
