3

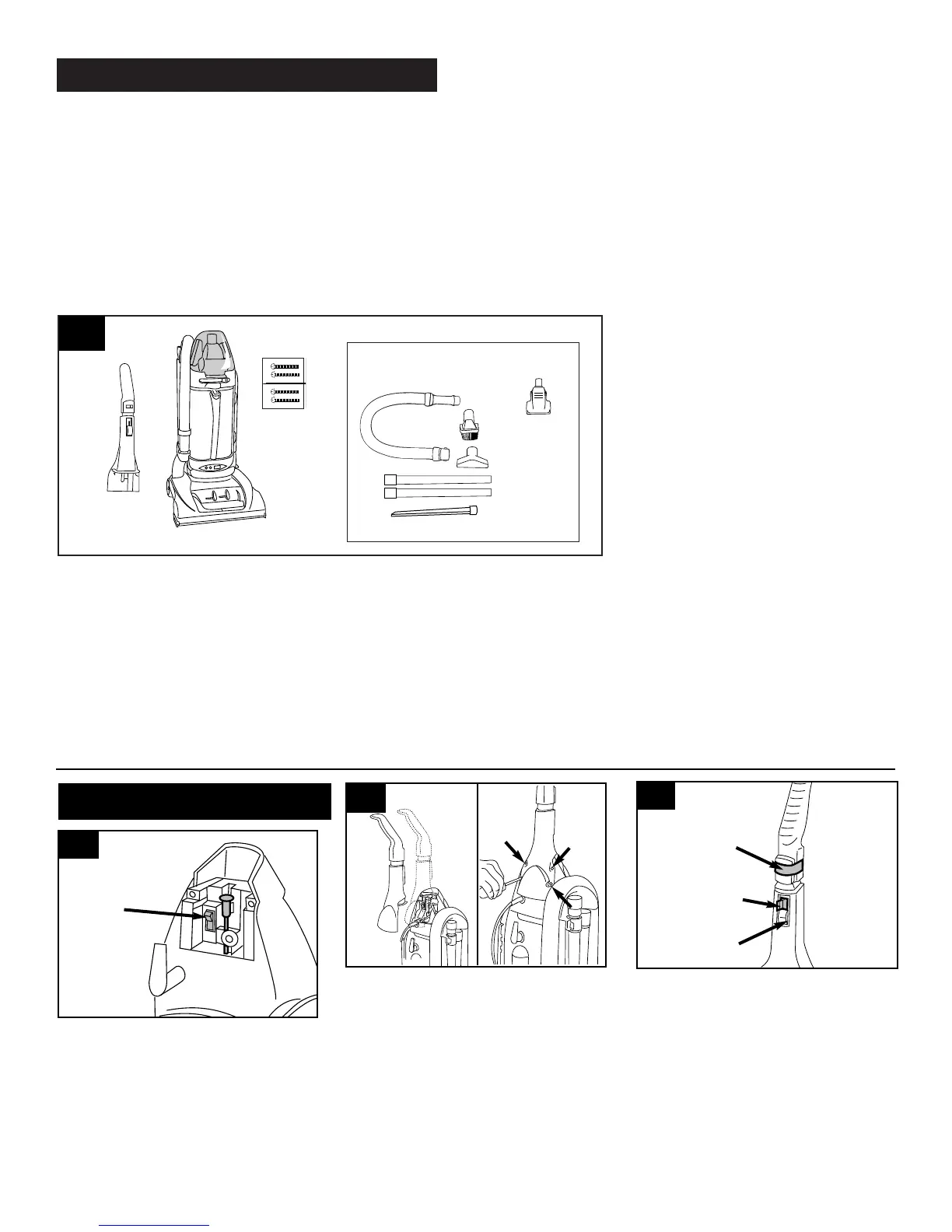

1. Assembling cleaner
Carton contents
Remove all parts from carton and
identify each item shown. Make
sure all parts are located before
disposing of packing.
A. Handle section
B. Cleaner body
C. Handle screw packet (in bag
with owner’s manual)
Note: The white switch lock above the
ON/OFF switch aids in the assembly of
your cleaner. Assembly can be contin-
ued if the switch lock is missing.
However, do not remove the switch
lock until assembly is completed.
1-1
A
B
D
C
F
E
I
H
G
This cleaner was inspected and packaged carefully before being shipped from the
factory. If you should happen to need assistance during assembly or operation,
Visit us online at www.hoover.com to find the service outlet nearest you
(click on the “Service” button) OR
Call 1-800-944-9200 for an automated referral of authorized service
outlet locations (U.S. only) OR
Call 1-330-499-9499 to speak with a representative in our Consumer
Response Center.
Continued
➜
Easy 3-step assembly
Looking at the back of the cleaner,
make sure switch (A) is in the OFF
position.
It may be necessary to move the
hose in order to attach the handle.
Slide handle into back of cleaner.
Push 4 screws into holes on back of
handle.
Using a Phillips screw driver, tighten
screws securely.
1-2
1-3
A
1-4
B
C
D
Remove switch lock (B) above ON-
OFF switch (C) on front of handle by
pulling it straight out. Dispose of
lock.
If switch lock has come off during
assembly, make sure switch is in
OFF position (down) before plug-
ging cord into electrical outlet.
Remove label (D) from self-propel
button.
Accessories
The accessories are packed on the
cleaner.
Not all accessories are included with
every model.
D. Hose*
E. Dusting brush
F. Furniture nozzle
G. Wands
H. Crevice wand
I. Powered hand tool
*some models include an extra hose
To Next Page
