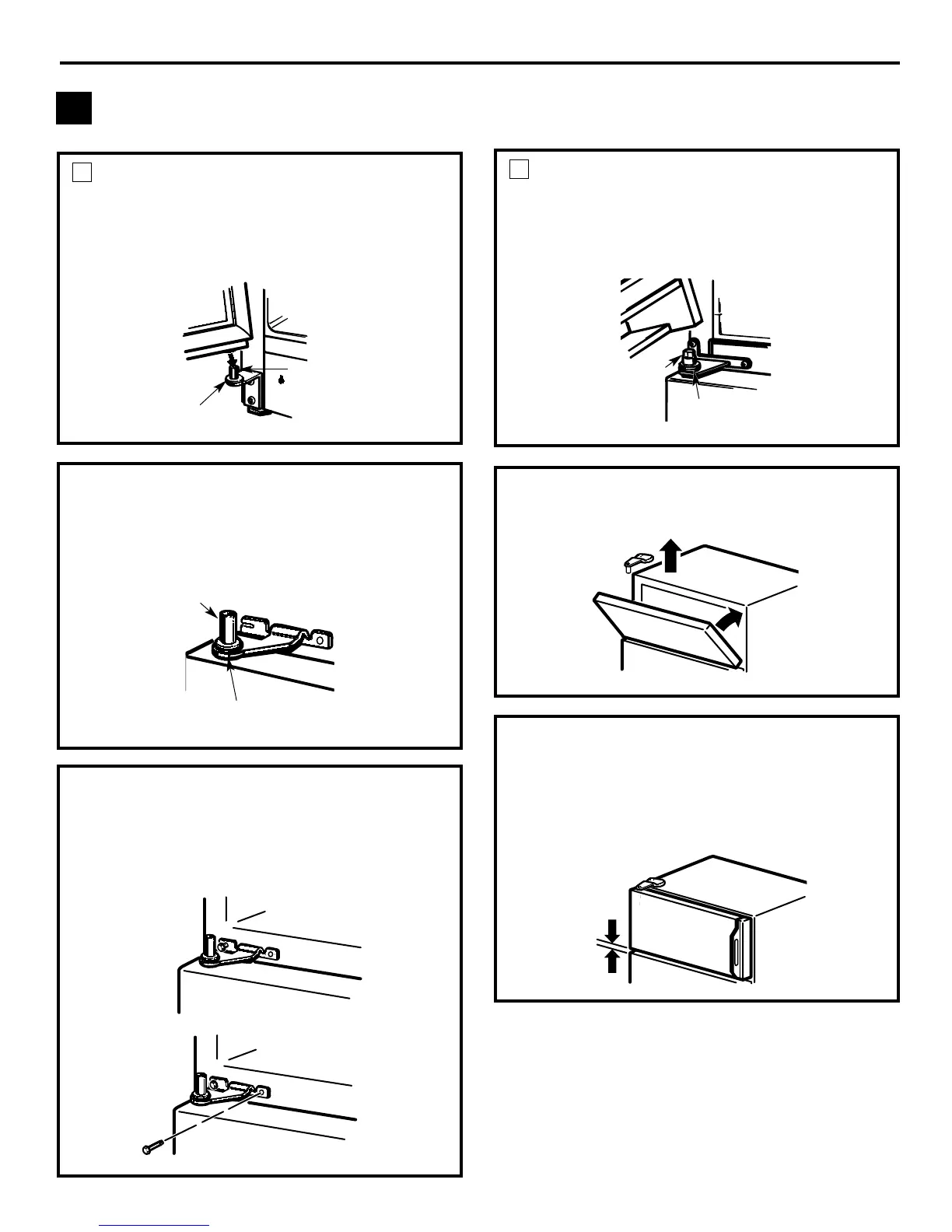

6.2 Rehang the freezer door
6.2.1 Lower the freezer door onto the center
hinge pin. Be sure the washer and spacer
are in place on the pin.
Installation Instructions
6.1 Rehang the fresh food door
6.1.1 Lower the fresh food door onto the bottom
hinge pin. Be sure the washer is in place on
the pin.
REHANGING THE DOORS
6
6.1.2 Insert the pin on the center hinge into the
socket in the top of the door. Place the
spacer, then the washer, on the hinge pin.
NOTE: The center hinge must be turned over
as shown when mounted on the left side.
6.1.3 Tilt the door toward the cabinet. As the door
is brought into position, slide the hinge under
the head of the screw which earlier had been
partly driven into the outermost hole. Insert
the remaining screw, then tighten both screws
securely.
Hinge Pin
Plastic
Washer
Plastic Washer
and Spacer
Hinge Pin
REHANGING THE DOORS (CONT.)
6
Center Hinge Pin
Plastic Washer
and Spacer
6.2.2 Tilt the door toward the cabinet, lifting the top
hinge so the pin fits into the socket on the top
of the door.
6.2.3 Make sure the door is slightly above the top of
the cabinet and the gap between the doors is
even across the front. Tighten the top hinge
screws. Do not overtighten these screws—
tighten them until they are just snug, then turn
them another one-half turn.
REVERSING THE DOOR SWING
(CONT.)
2
