Page 29

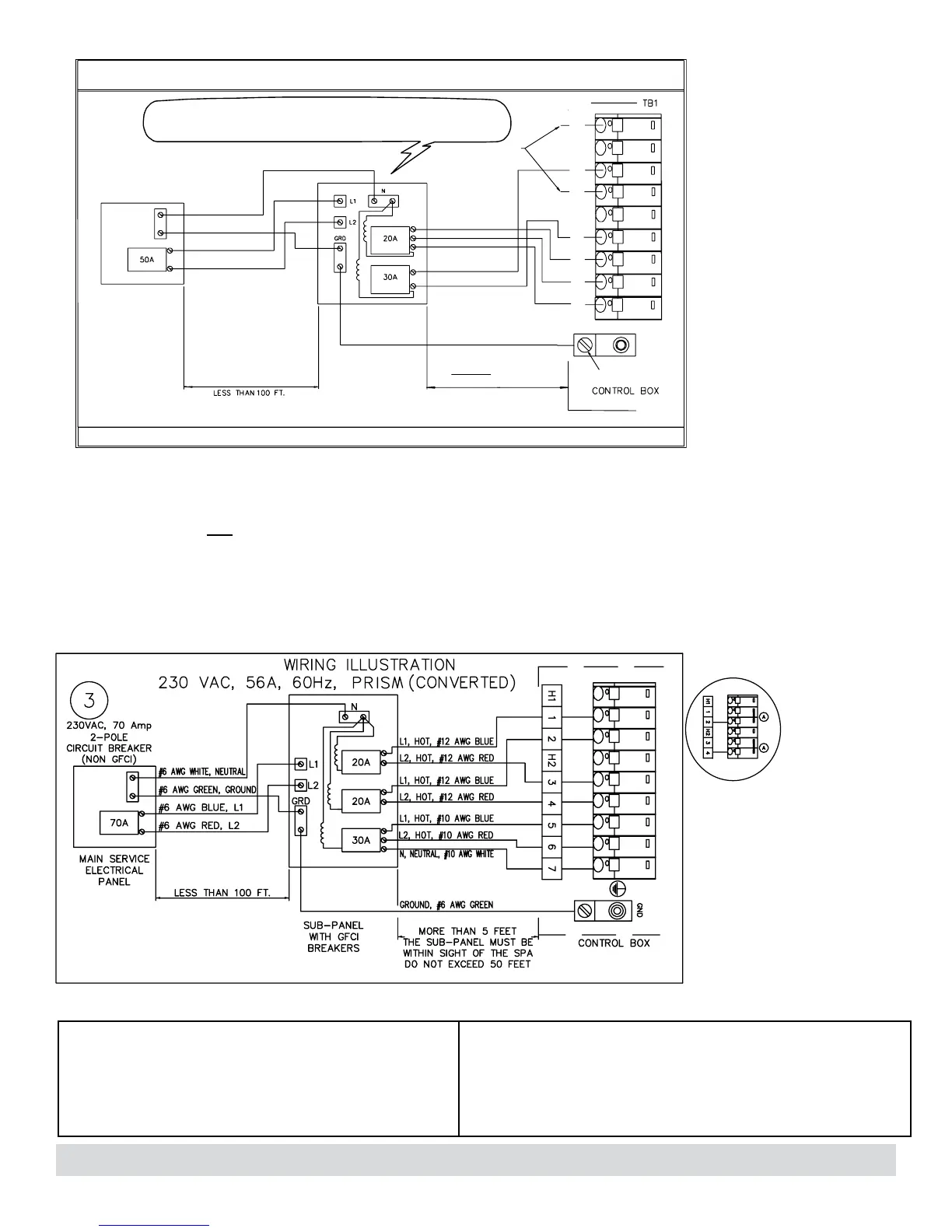

230 VOLT CONVERTED PRISM
The PRISM will require an additional 20 amp breaker in order to operate
the heater and jet pump 3 at the same time. Without the additional 20
amp breaker, the heater will NOT operate while the jets are used with jet
pump 3 on.
This subpanel requires a 70 amp, single phase, 230 volt, four wire
service (two line, one neutral, one ground). The ground wire must never
be less than #10 AWG. Use NEC 250-122 (table) and local codes for
more information. A minimum #6 AWG solid copper bond wire is also
required.
Mount the subpanel in the vicinity of the spa, but not within five feet, in
accordance with local codes.
HOT SPRING SPAS MUST BE WIRED IN ACCORDANCE WITH
ALL APPLICABLE LOCAL ELECTRICAL CODES. ALL ELECTRICAL
WORK SHOULD BE DONE BY AN EXPERIENCED LICENSED
ELECTRICIAN. WE RECOMMEND THE USE OF APPROPRIATE
ELECTRICAL CONDUIT, FITTINGS, AND WIRE FOR ALL CIRCUITS.
IMPORTANT: Service Technician must reconfigure spa using the soft
jumpers to allow spa heater to run concurrent with jet pump.
NOTE: Long wiring runs may require larger-gauge wire than stated.
Remove power
jumpers A from TB-1
CAUTIONS
USE COPPER CONDUCTORS ONLY
USE SUPPLY WIRES SUITABLE FOR 75°C/167°F.
DISCONNECT ALL SUPPLY CONNECTIONS BEFORE SERVICING.
CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND-FAULT INTERRUPTER.
THESE SPAS ARE INTENDED FOR USE WITH GFCI SUBPANEL PROVIDED.
ALL CANADIAN SPA MODELS USE #8 AWG GREEN, GROUND.
INCORRECT WIRING WILL DAMAGE CIRCUIT BOARDS.
REFER TO THE WIRING INSTRUCTIONS INCLUDED WITH THE SUB-PANEL
FOR DETAILED WIRING INSTRUCTIONS.
System Ground Terminal
GRD
** Refer to NEC 250-122 (table)
*PROVIDED WITH HOT TUB.
IMPORTANT: ALL WIRING SHOULD BE COPPER.
NOTE: The wire connections to GFCI breakers are for reference only. Always ensure the white neutral wire is connected to the load neutral of the 20 amp breaker.
MAIN SERVICE
ELECTRICAL
PANEL
230V, 50 Amp,
2-POLE,
CIRCUIT BREAKER
(NON GFCI)
1
2
H1
3
4
5
FACTORY
WIRED
HEATER
L2 # 10 AWG RED
L1 # 10 AWG BLUE
L2 # 12 AWG RED
L1 # 12 AWG BLUE
N # 12 AWG WHITE
GROUND # 10 AWG GREEN
# 8 AWG WHITE, NEUTRAL
# 10 AWG GREEN, GROUND**
# 8 AWG BLUE, L1
# 8 AWG RED, L2
*SUBPANEL
WITH GFCI
BREAKERS
Minimum 5 FEET
The Subpanel must be
within sight of the spa
Do not exceed 50 FEET.
H2
6
7
IMPORTANT!
THE EXACT PHYSICAL LOCATION OF THE TERMINALS ON THE GFCI BREAKER
WILL VARY BETWEEN MANUFACTURERS. CONNECTING THE HOT WIRE TO THE
NEUTRAL TERMINAL WILL CAUSE IRREVERSIBLE DAMAGE TO THE CONTROL BOX.
BEAM II
230 volt permanently connected model
Electrical Requirements
To Next Page
