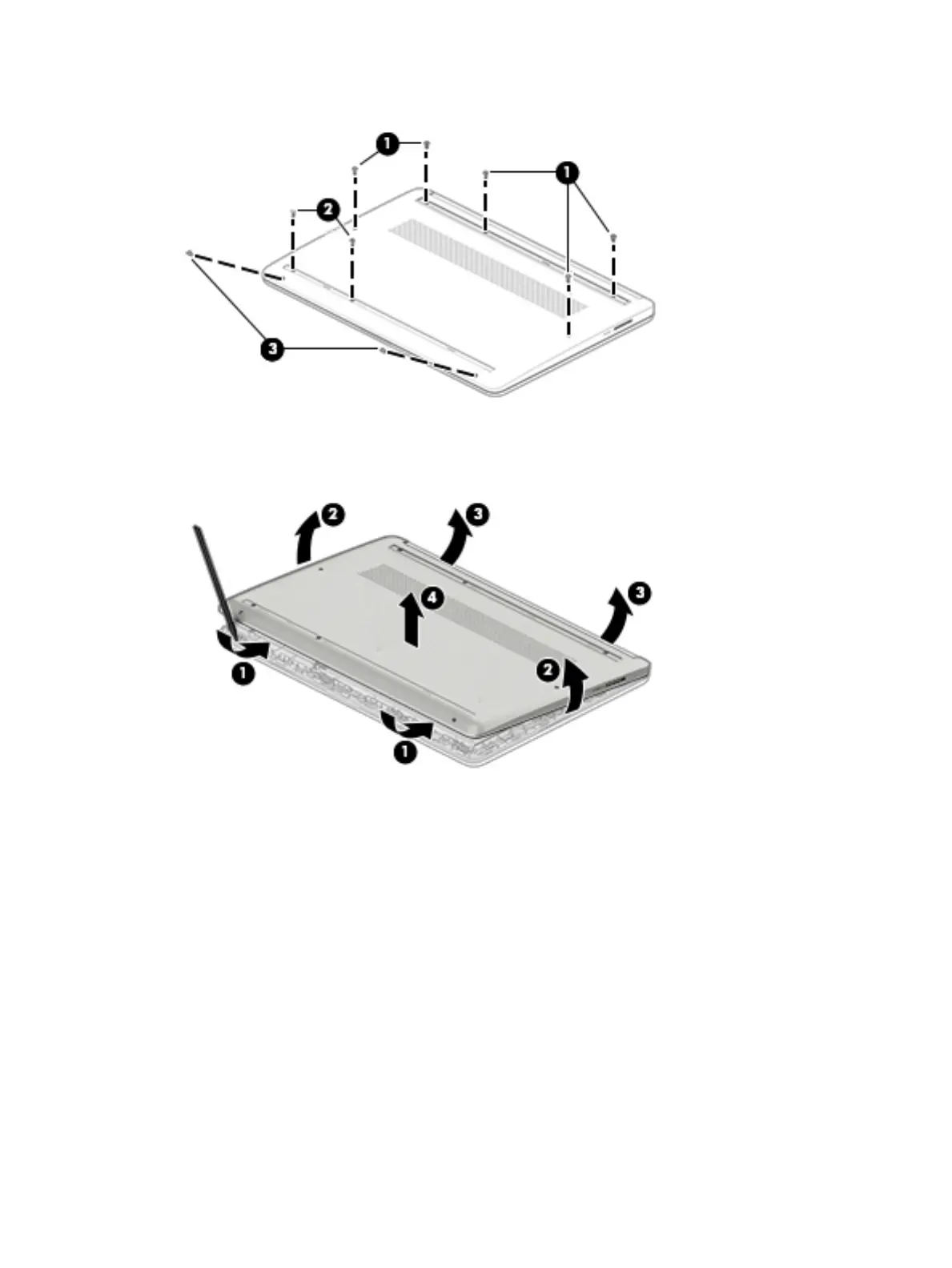

4. Remove the two Phillips M2.0 × 4.0 screws (3) from the bottom edge of the bottom cover.
5. Insert a plastic tool between the bottom cover and the computer chassis (1), and then ex and lift the
sides (2) and the top edge (3) of the bottom cover enough to separate it from the computer.
6. Remove the bottom cover from the computer (4).
Reverse this procedure to install the bottom cover.
28 Chapter 5 Removal and replacement procedures for authorized service provider parts
