Power connector cable
Description Spare part number
Power connector cable 931613-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 33), if installed.
6. Remove the bottom cover (see Bottom cover on page 43).
7. Remove the display (see Display assembly on page 69).

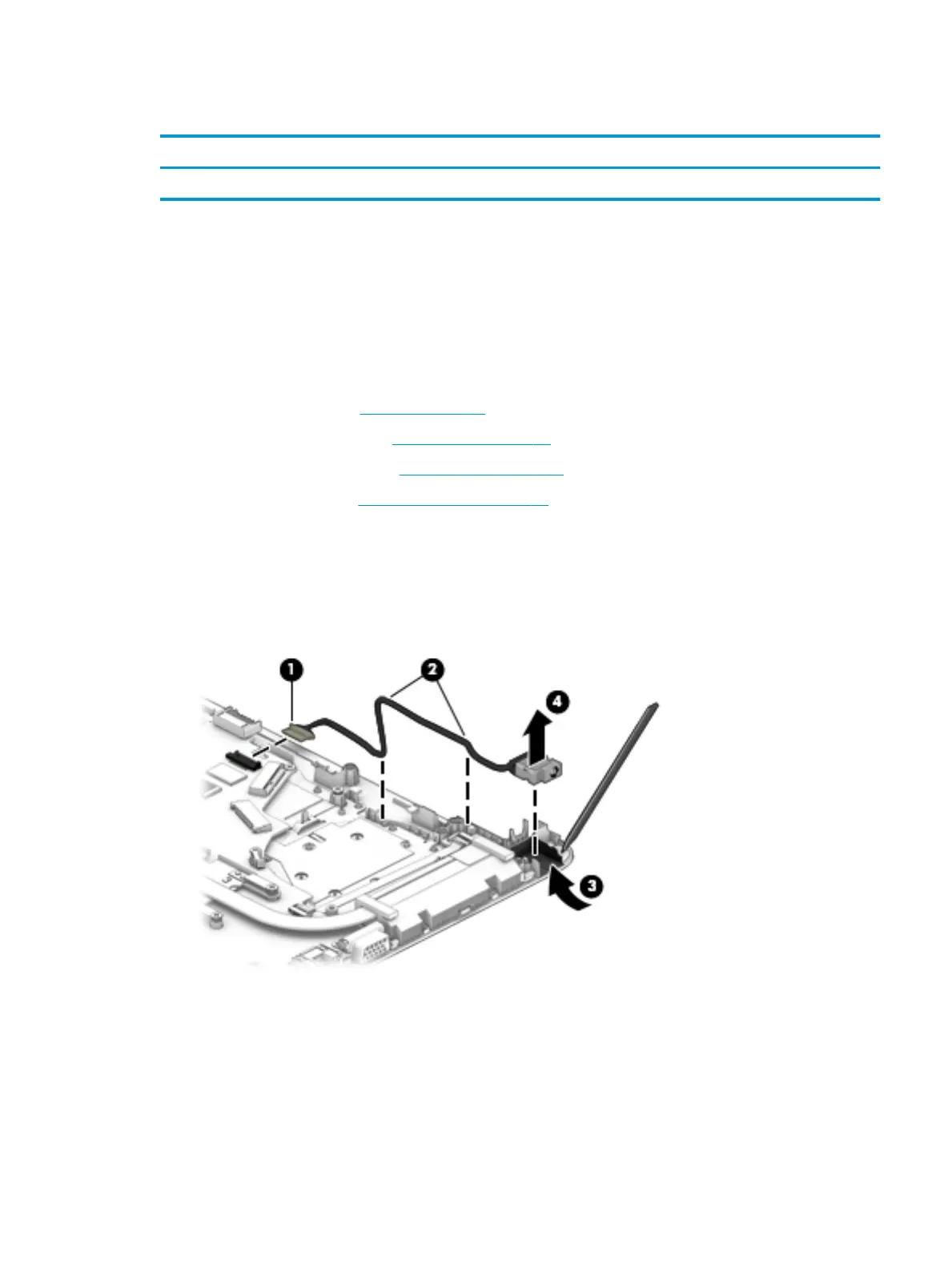

To remove the power connector cable:
1. Disconnect the power connector cable from the system board (1).
2. Remove the cable from its routing path in the computer (2).
3. Use a tool to pry the connector out of the computer (3), and then remove the power connector cable (4).
Reverse this procedure to install the power connector cable.
Component replacement procedures 79
