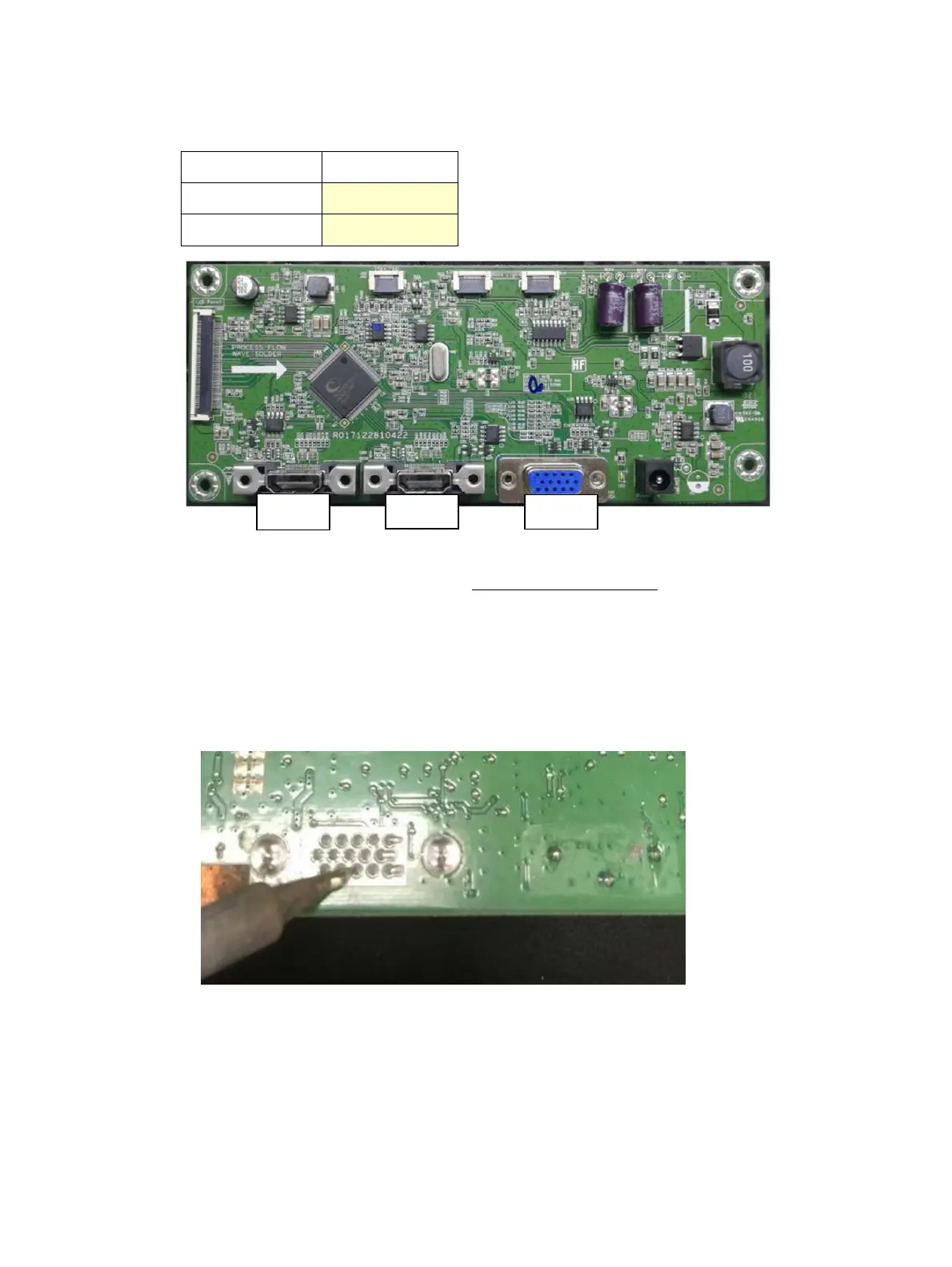

The connectors are on the main board.

The connectors identifiers are as follows:

Connector Location

VGA

P100

HDMI

P200/P201

Before repairing connectors, follow these steps:

▲ Prepare the monitor for disassembly. See Preparation for disassembly

on page 9.

VGA P100

Repair the VGA connector:

1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently

push down with the soldering iron once everything is molten to move the P100 out of the through holes.

2) Lift the P100 connector from the PCB..

3) Place the new component on the PCB. Be sure that it matches the PCB footprint.

4) Solder the new component.

HDMI connector P200/P201

Repair the HDMI connector:

P100

P200

P201
