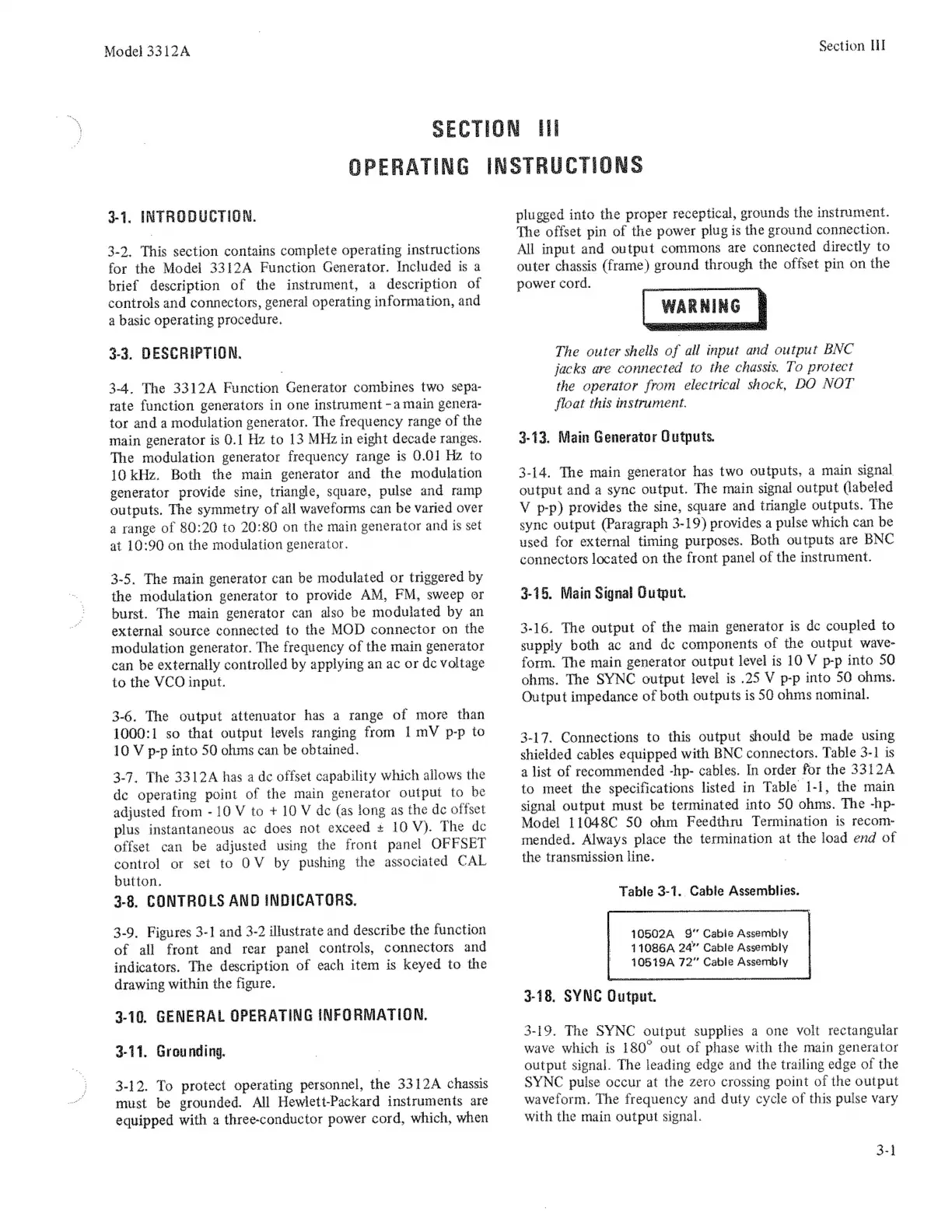

Modei
3312A
Section
HI
SECTION
IH
OPERATING
3-1.
INTRODUCTION.
3-2.
This
section
contains
complete
operating
instructions
for
the
Model
3312A
Function
Generator.
Included
is
a
brief
description
of
the
instrument,
a
description
of
controls
and
connectors,
general
operating
information,
and
a
basic
operating
procedure.
3-3.
DESCRIPTION.
3-4.
The
3312A
Function
Generator
combines
two
sepa-
rate
function
generators
in
one
instrument
-a
main
genera-
tor
and
a
modulation
generator.
The
frequency
range
of
the
main
generator
is
0.1
Hz
to
13
MHz
in
eight
decade
ranges.
The
modulation
generator
frequency
range
is
0.01
Hz
to
10
kHz.
Both
the
main
generator
and
the
modulation
generator
provide
sine,
triangle,
square,
pulse
and
ramp
outputs.
The
symmetry
of
all
waveforms
can
be
varied
over
a
range
of
80:20
to
20:80
on
the
main
generator
and
is
set
at
10:90
on
the
modulation
generator.
3-5,
The
main
generator
can
be
modulated
or
triggered
by
the
modulation
generator
to
provide
AM,
FM,
sweep
or
burst.
The
main
generator
can
also
be
modulated
by
an
external
source
connected
to
the
MOD
connector
on
the
modulation
generator.
The
frequency
of
the
main
generator
ean
be
externally
controlled
by
applying
an
ac
or
dc
voitage
to
the
VCO
input.
3-6.
The
output
attenuator
has
a
range
of
more
than
{000:1
so
that
output
levels
ranging
from
I
mV
p-p
to
10
V
p-p
into
50
ohms
can
be
obtained.
3-7.
The
3312A
has
a
de
offset
capability
which
allows
the
de
operating
point
of
the
main
generator
output
to
be
adjusted
from
-
10
V
to
+
10
V
de
(as
long
as
the
de
offset
plus
instantaneous
ac
does
not
exceed
+
10
V).
The
de
offset
can
be
adjusted
using
the
front
panel
OFFSET
control
or
set
to
OV
by
pushing
the
associated
CAL
button.
3-8.
CONTROLS
AND
INDICATORS.
3-9.
Figures
3-1
and
3-2
illustrate
and
describe
the
function
of
all
front
and
rear
panel
controls,
connectors
and
indicators.
The
description
of
each
item
is
keyed
to
the
drawing
within
the
figure.
3-10.
GENERAL
OPERATING
INFORMATION.
3-11.
Grounding.
3-12.
To
protect
operating
personnel,
the
3312A
chassis
must
be
grounded.
All
Hewlett-Packard
instruments
are
equipped
with
a
three-conductor
power
cord,
which,
when
INSTI
U
CTION
plugged
into
the
proper
receptical,
grounds
the
instrument.
The
offset
pin
of
the
power
plug
is
the
ground
connection.
All
input
and
output
commons
are
connected
directly
to
outer
chassis
(frame)
ground
through
the
offset
pin
on
the
power
cord.
The
outer
shells
of
all
input
and
output
BNC
jacks
are
connected
to
the
chassis.
To
protect
the
operator
from
electrical
shock,
DO
NOT
float
this
instrument.
3-13.
Main
Generator
Outputs.
3-14.
The
main
generator
has
two
outputs,
a
main
signal
output
and
a
sync
output.
The
main
signal
output
(labeled
V
p-p)
provides
the
sine,
square
and
triangle
outputs.
The
sync
output
(Paragraph
3-19)
provides
a
pulse
which
can
be
used
for
external
timing
purposes.
Both
outputs
are
BNC
connectors
located
on
the
front
panel
of
the
instrument.
3-15.
Main
Signal
Output.
3-16.
The
output
of
the
main
generator
is
de
coupled
to
supply
both
ac
and
de
components
of
the
output
wave-
form.
The
main
generator
output
level
is
10
V
p-p
into
50
ohms.
The
SYNC
output
level
is
.25
V
p-p
into
50
ohms.
Output
impedance
of
both
outputs
is
50
ohms
nominal.
3-17.
Connections
to
this
output
should
be
made
using
shielded
cables
equipped
with
BNC
connectors.
Table
3-1
is
a
list
of
recommended
-hp-
cables.
In
order
for
the
3312A
to
meet
the
specifications
listed
in
Table
1-1,
the
main
signal
output
must
be
terminated
into
50
ohms.
The
-hp-
Model
11048C
50
ohm
Feedthru
Termination
is
recom-
mended.
Always
place
the
termination
at
the
load
end
of
the
transmission
line.
Table
3-4..
Cable
Assemblies.
10502A
9"
Cable
Assembly
11086A
24”
Cable
Assembly
10519A
72”
Cable
Assembly
3-18.
SYNC
Output.
3-19.
The
SYNC
output
supplies
a
one
volt
rectangular
wave
which
is
180°
out
of
phase
with
the
main
generator
output
signal.
The
leading
edge
and
the
trailing
edge
of
the
SYNC
pulse
occur
at
the
zero
crossing
point
of
the
output
waveform.
The
frequency
and
duty
cycle
of
this
pulse
vary
with
the
main
output
signal.
3-1
