HP 3400A Service Manual

[iz]

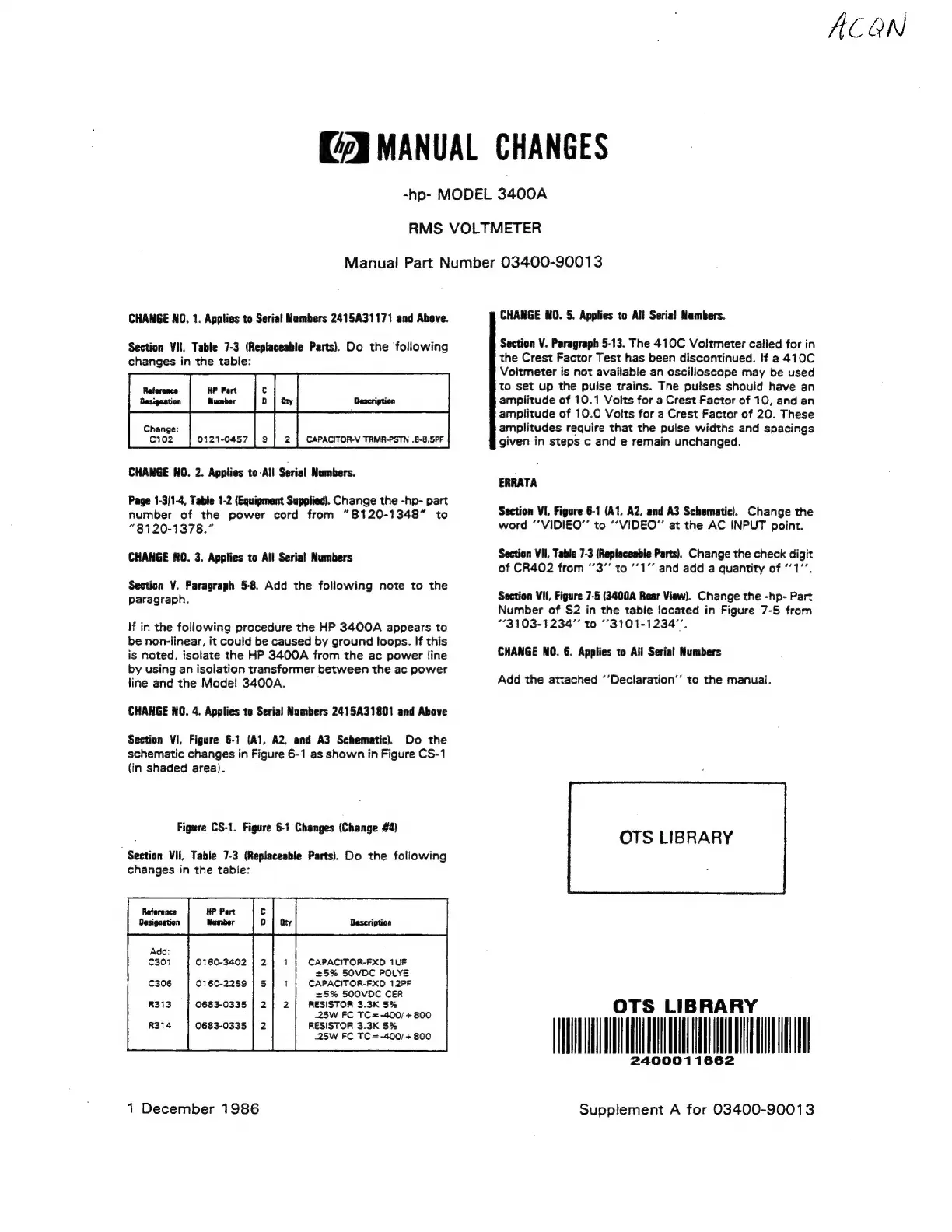

MANUAL
CHANGES
-hp- MODEL 3400A
RMS VOLTMETER
Manual! Part Number 03400-90013
CHANGE NO. 1. Applies to Serial Numbers 2415A31171 and Above.
Section VII, Table 7-3 (Replaceable Parts). Do the following
changes in the table:
Reference
Desigestion Description
Change:
C102 0121-0457 CAPACITOR-V TRMR-PSTN .8-8.5PF
CHANGE NO. 2. Applies to-All Serial Numbers.
Page 1-3/1-4, Table 1-2 (Equipment Supplied). Change the -hp- part
number of the power cord from ”8120-1348” to
“8120-1378.”
CHANGE NO. 3. Applies to All Serial Numbers
Section V, Paragraph 5-8. Add the following note to the
paragraph.
If in the following procedure the HP 3400A appears to
be non-linear, it could be caused by ground loops. If this
is noted, isolate the HP 3400A from the ac power line
by using an isolation transformer between the ac power
line and the Mode! 3400A.
CHANGE NO. 4. Applies to Serial Numbers 2415A31801 and Above
Section Vi, Figure 6-1 (A1, A2, and A3 Schematic). Do the
schematic changes in Figure 6-1 as shown in Figure CS-1
(in shaded area).
Figure CS-1. Figure 6-1 Changes (Change #4)
Section Vii, Table 7-3 (Replaceable Parts). Do the following
changes in the table:
0160-3402 CAPACITOR-FXD 1UF
25% SOVDC POLYE
CAPACITOR-FXD 12PF
=5% SOOVDC CER
RESISTOR 3.3K S%
.25W FC TC =-400/ +800
RESISTOR 3.3K 5%
.25W FC TC =-400/ +800
0160-2259
0683-0335
0683-0335
1 December 1986
CHANGE NO. 5. Applies to All Serial Numbers.
Section V. Paragraph 5-13. The 410C Voltmeter called for in
the Crest Factor Test has been discontinued. If a 410C
Voltmeter is not available an oscilloscope may be used
to set up the puise trains. The pulses should have an
amplitude of 10.1 Volts for a Crest Factor of 10, and an
amplitude of 10.0 Volts for a Crest Factor of 20. These
amplitudes require that the puise widths and spacings
given in steps c and e remain unchanged.
ERRATA
Section Vi, Figure 6-1 (A1, A2, and A3 Schematic). Change the
word ‘’VIDIEO”’ to ‘“VIDEO”’ at the AC INPUT point.
Section Vil, Table 7-3 (Replaceable Parts). Change the check digit
of CR402 from ‘’3”’ to ‘’*1’’ and add a quantity of ’1’’.
Section Vil, Figure 7-5 (3400A Rear View). Change the -hp- Part
Number of S2 in the table located in Figure 7-5 from
*°3103-1234” to “°3101-1234"’.
CHANGE NO. 6. Applies to Ail Serial Numbers
Add the attached ‘’Deciaration’’ to the manual.
OTS LIBRARY
OTS LIBRARY
2400011662
Supplement A for 03400-90013
ACGN
