Removing or Installing an Expansion Card
The computer has two standard PCI expansion slots that can accommodate an expansion card up to
17.46 cm (6.875 inches) in length. The computer also has one PCI Express x1 expansion slot and one
ADD2/SDVO expansion slot.

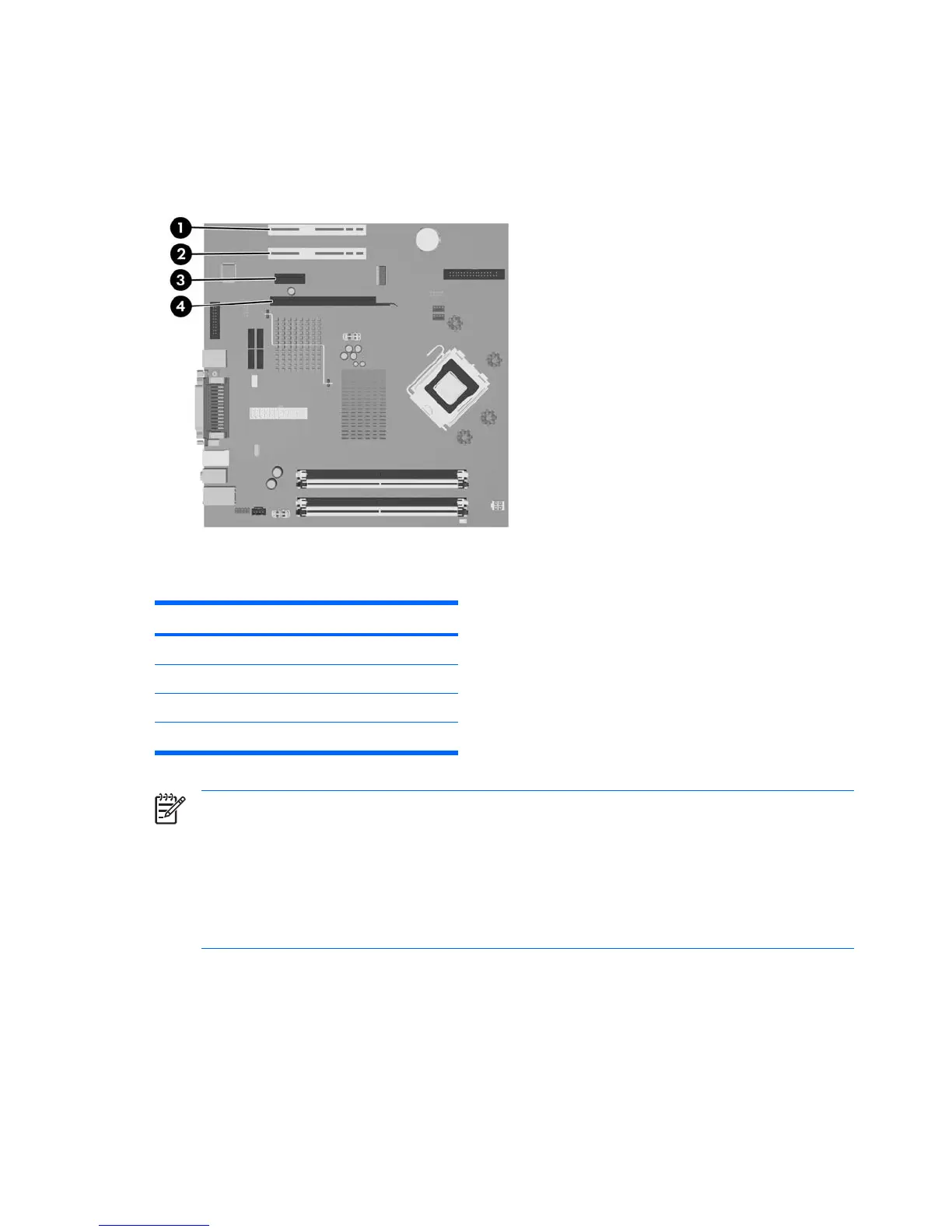

Figure 2-7 Expansion Slot Locations
Item Description
1 PCI expansion slot
2 PCI expansion slot
3 PCI Express x1 expansion slot
4 ADD2/SDVO expansion slot
NOTE The dc5700 platform only supports the use of normal (or non-reversed) layout ADD2
(Advanced Digital Display 2) adapter cards inserted into the SDVO (Serial Digital Video Output)
connector on the platform's system board. ADD2 cards are used to give multi-monitor capabilities
to the integrated graphics controller.
The ADD2/SDVO connector on the system board has the physical appearance of a PCI Express
x16 connector; however, the platform does NOT support the use of conventional PCI Express
cards or reversed-layout ADD2 cards.
To remove, replace, or add an expansion card:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
