Front Panel Controls

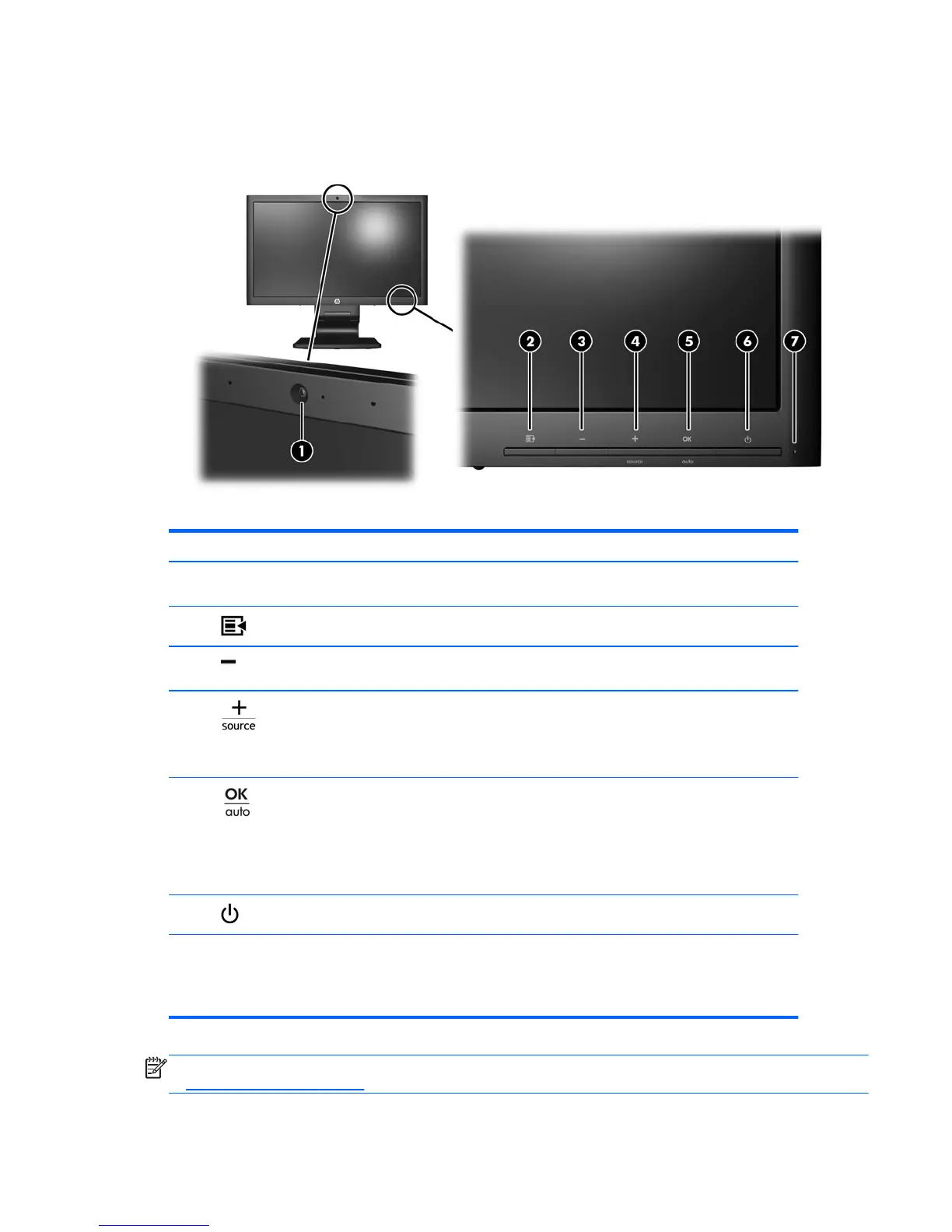

Figure 2-11 Monitor Front Panel Controls
Table 2-1 Monitor Front Panel Controls
Control Function
1 Webcam with Dual
Microphone Array
Active = Blue LED
2
Menu Opens, selects or exits the OSD menu.
3
Minus If the OSD menu is on, press to navigate backward through
the OSD menu and decrease adjustment levels.
4
Plus/source If the OSD menu is on, press to navigate forward through
the OSD menu and increase adjustment levels.
If the OSD menu is inactive, press to activate the source
button that chooses the video signal input (USB or VGA)
5
OK/auto If the OSD menu is on, press to select the highlighted
menu item.
If the OSD menu is inactive, press to activate the auto
adjustment feature to optimize the screen image. The auto
adjustment feature only functions if the active video signal
is VGA.
6
Power Turns the monitor on or off.
7 Power LED Blue = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library
at
http://www.hp.com/go/sml.
Front Panel Controls 13
