Mounting the Monitor
The monitor panel can be attached to a wall, swing arm, or other mounting fixture.
NOTE: This apparatus is intended to be supported by UL or CSA Listed wall mount bracket.
1. Remove the monitor panel from the pedestal base. Refer to Removing the Monitor Pedestal Base
on page 15.
CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To
attach a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long
screws are required. Longer screws must not be used because they may damage the monitor. It is
important to verify that the manufacturer’s mounting solution is compliant with the VESA standard
and is rated to support the weight of the monitor display panel. For best performance, it is
important to use the power and video cables provided with the monitor.
2. To attach the monitor to a swing arm, insert four 10mm screws through the holes on the swing arm
plate and into the mounting holes on the monitor.

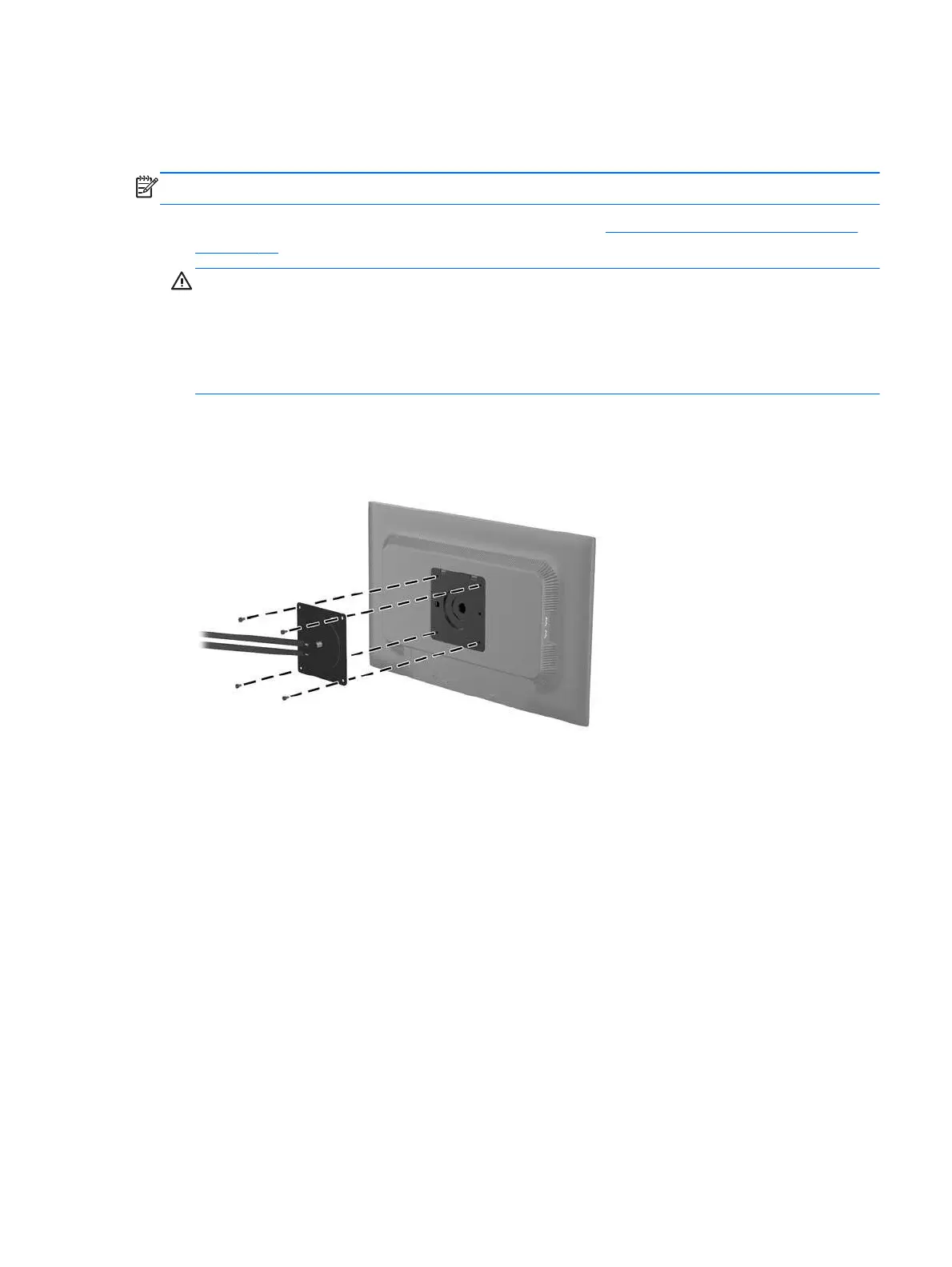

Figure 2-19 Mounting the Monitor
To attach the monitor to other mounting fixtures, follow the instructions included with the mounting
fixture to ensure that the monitor is safely attached.
3. Reconnect the cables to the monitor panel.
