Removal and Replacement Procedures
Maintenance and Service Guide 6–15

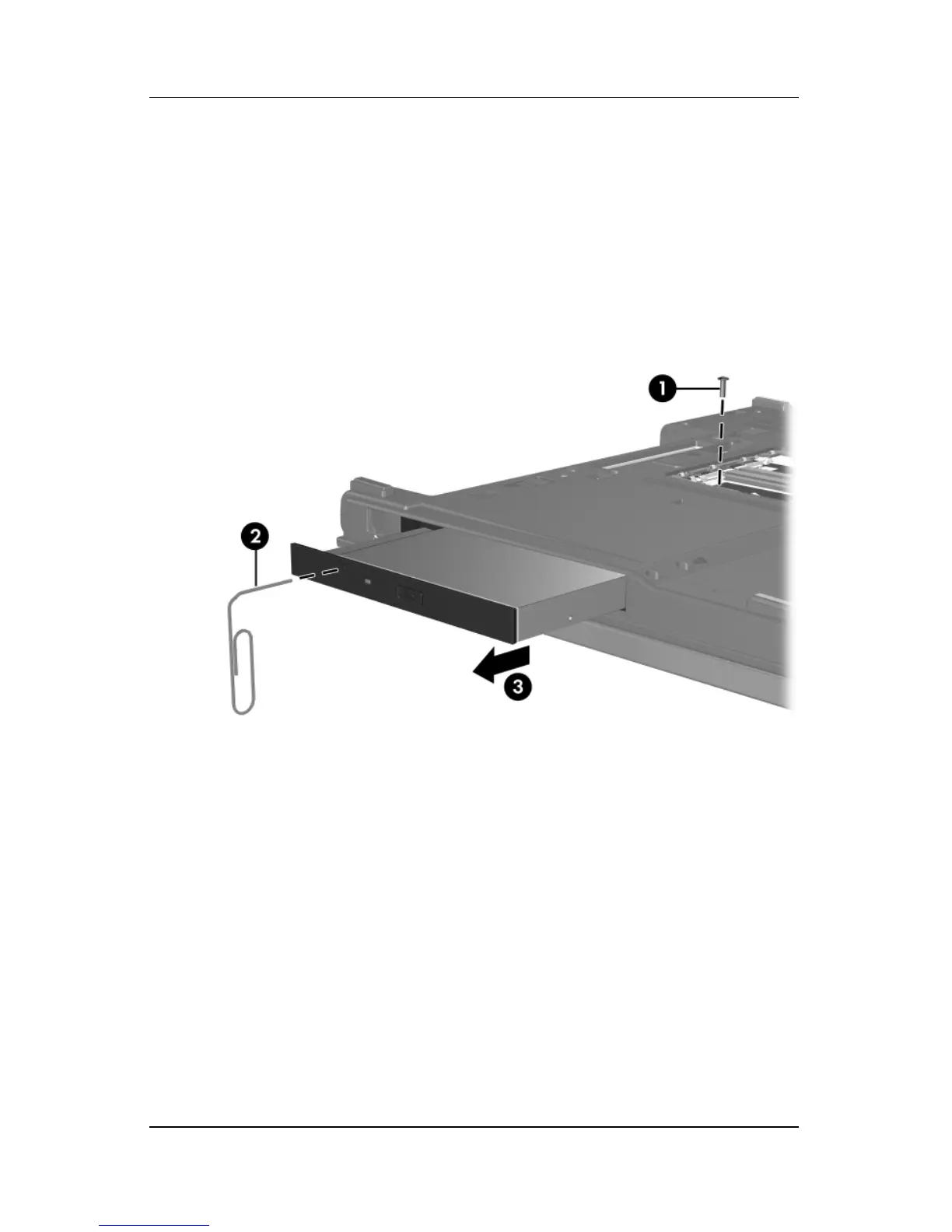

4. Remove the Torx T8M2.5×9.0 screw 1 that secures the
optical drive to the notebook.
5. Insert a thin tool, such as an unbent paper clip 2, into the
media tray release hole and release the media tray.
6. Use the media tray to slide the optical drive out of the
notebook 3.
7. Remove the optical drive.
Removing the Optical Drive
Reverse the above procedure to install an optical drive.
