HP FlexNetwork MSR3012 User Manual

12

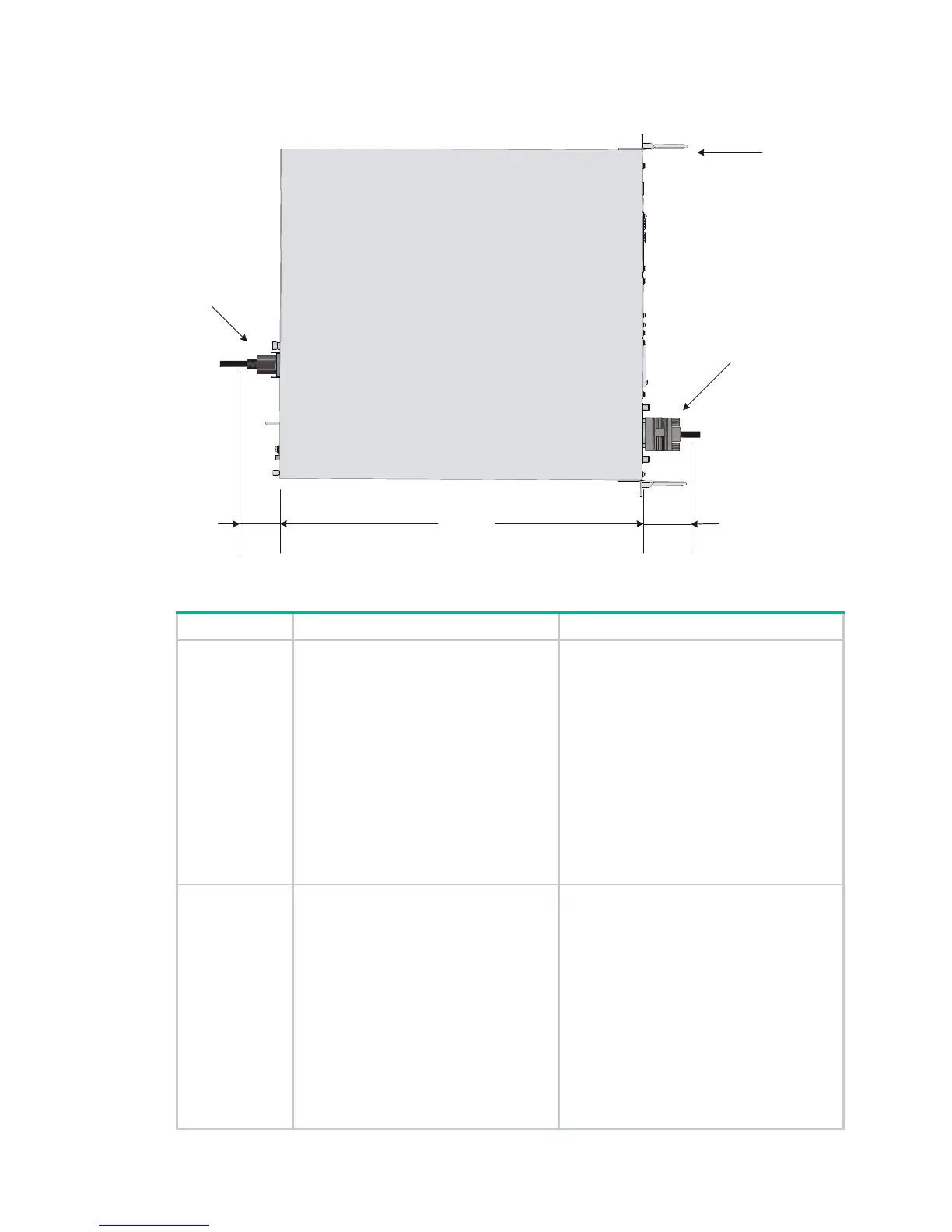

Figure 11 Rack-mounting clearances for the MSR3044/3064
Table 6 Rack-mounting clearance requirements
Model Router dimensions Rack clearance requirements
3012/3024
• Width—440 mm (17.32 in)
• Height—44.2 mm (1.74 in) (1 RU)
• Total depth—608 mm (23.94 in)
{ 483 mm (19.02 in) for the
chassis
{ 65 mm (2.56 in) for connecting
an RPS power cord at the front
of the chassis
{ 60 mm (2.36 in) for connecting
an E1 cable at the rear of the
chassis
The rack must meet all the following
requirements:
• A minimum of 80 mm (3.15 in) between
the front rack post and the front door.
• A minimum of 550 mm (21.65 in)
between the front rack post and the rear
door.
• 290 mm (11.42 in) to 430 mm (16.93 in)
between the front and rear rack posts,
with a clearance of 160 mm (6.30 in)
between the rear rack post and the rear
door, or 450 mm (17.72 in) to 610 mm
(24.02 in) between the front and rear
rack posts.
3044
• Width—440 mm (17.32 in)
• Height—88.2 mm (3.47 in) (2 RU)
• Total depth—600 mm (23.62 in)
{ 480 mm (18.90 in) for the
chassis
{ 60 mm (2.36 in) for connecting
an RPS power cord at the front
of the chassis
{ 60 mm (2.36 in) for connecting
an E1 cable at the rear of the
chassis
The rack must meet all the following
requirements:
• A minimum of 80 mm (3.15 in) between
the front rack post and the front door.
• A minimum of 550 mm (21.65 in)
between the front rack post and the rear
door.
• 310 mm (12.20 in) to 440 mm (17.32 in)
between the front and rear rack posts,
with a clearance of 160 mm (6.30 in)
between the rear rack post and the rear
door, or 465 mm (18.31 in) to 595 mm
(23.43 in) between the front and rear
rack posts.
480mm
E1 cable
60mm
Front mounting
bracket
Power cord
60mm
