HP G7000 - Notebook PC Maintenance And Service Guide

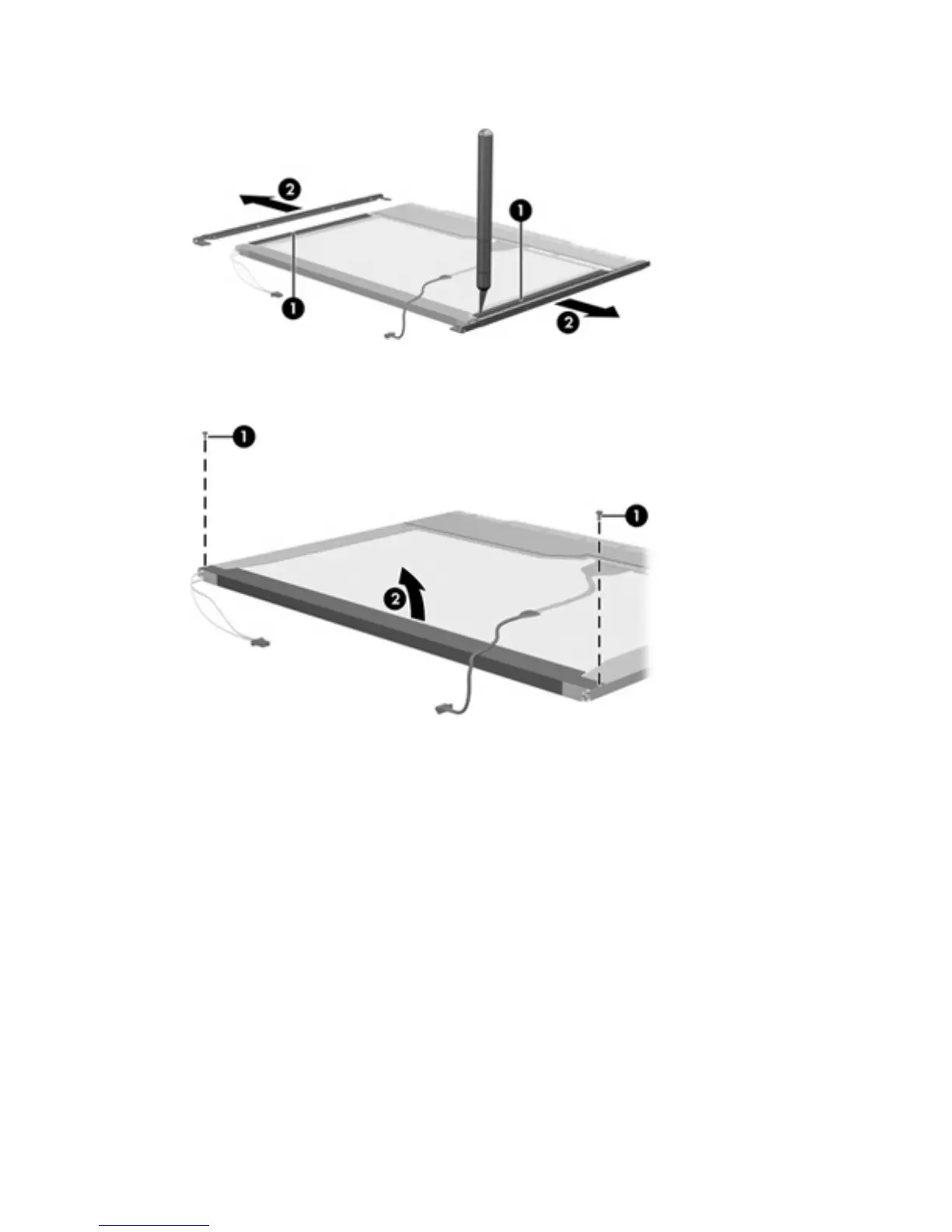

10. Remove the display panel frame (2) from the display panel.
11. Remove the screws (1) that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover (2) and swing it outward.
13.
Remove the backlight cover.
14.
Turn the display panel right-side up.
124 Chapter 11 Recycling

HP G7000 - Notebook PC Specifications

General

Processor	Intel or AMD (various models available)
RAM	Up to 4 GB DDR2 SDRAM (configuration dependent)
Optical Drive	DVD±RW DL LightScribe
Wireless	802.11b/g
Bluetooth	Optional (configuration dependent)
USB Ports	3
VGA Port	Yes
Audio	Integrated stereo speakers, headphone/line-out, microphone-in
Battery	6-cell Lithium-Ion
Ports	3 x USB 2.0, 1 x VGA, 1 x RJ-45, 1 x Headphone/Line-out, 1 x Microphone-in, 1 x ExpressCard slot
