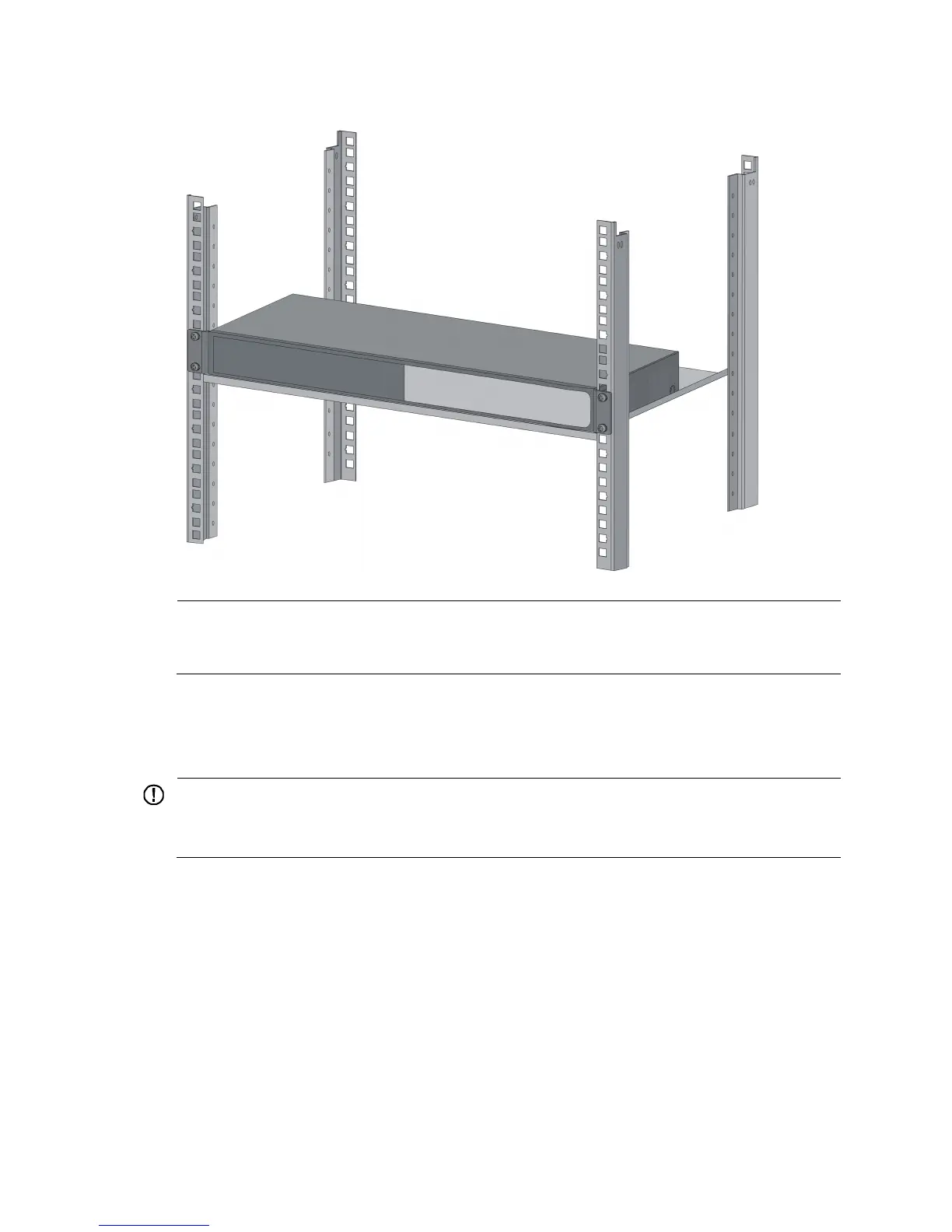

Figure 2 Mounting the HP 1410-24-R switch in the rack
NOTE:
The mounting brackets are used only for attaching the switch instead of bearing the switch weight. A
holder on the rack is used to hold (bear the weight of) the switch.
Mounting the switch on a workbench
IMPORTANT:
• Ensure good ventilation and 10 cm (3.9 in) of clearance around the chassis for heat dissipation.
• Avoid placing heavy objects on the switch.
To mount the switch on a workbench:
1. Make sure the workbench is securely grounded and is stable.
2. Place the switch upside down, and clean the round holes on the bottom of the chassis with a dry
cloth.
3. Attach the rubber feet to the four round holes on the bottom of the chassis.
4. Place the switch with right side up on the workbench.
