HP OMEN 24 User Manual

11

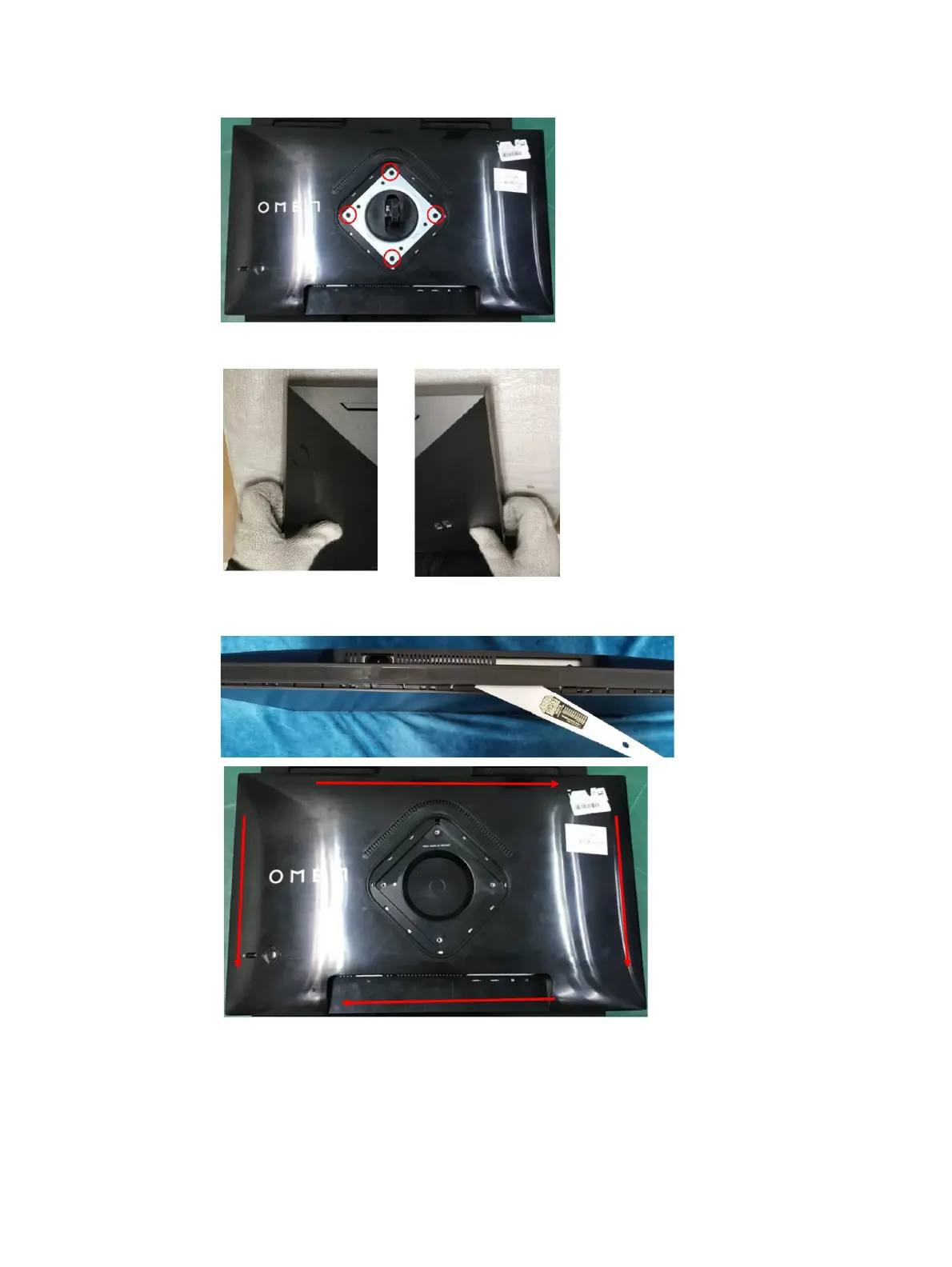

1) Remove 4 screws from the hinge.
2) Use your fingers to split the left and right sides apart between the middle frame and rear case.
3) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate. The hook
opens. Repeat the steps.
4) Disassemble Rear Cover and disconnect the connector.

HP OMEN 24 Specifications

General

Haze rate	25 %
Color depth	8 bit
Color gamut	90 %
Pixel pitch	0.28 x 0.28 mm
Screen shape	Flat
Pixel density	93 ppi
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Native aspect ratio	16:9
Vertical scan range	60 - 165 Hz
Horizontal scan range	30 - 210 kHz
sRGB coverage (typical)	99 %
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
DisplayPort version	1.4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	40 W
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Package depth	164 mm
Package width	595 mm
Package height	407 mm
Package weight	9330 g
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 23 °
Height adjustment	100 mm
Panel mounting interface	100 x 100 mm
Product color	Black
Country of origin	China
Market positioning	Gaming
HP segment	Home
AMD FreeSync type	FreeSync Premium

Weight and Dimensions

Depth (with stand)	198.3 mm
Width (with stand)	539.4 mm
Height (with stand)	465.3 mm
Weight (with stand)	6350 g
Depth (without stand)	52 mm
Height (without stand)	321.5 mm
