SSD (M.2)
Description Spare part number
Generic SSD 128 GB 2280 M2 SATA-3 Value TL 827560-027
Generic SSD 256 GB 2280 M2 PCIe 3x4SS NVMe TLC TL 847109-008
Generic SSD 512 GB 2280 M2 PCIe3x4SS NVMe TLC TL, not for products with AMD Radeon hybrid
graphics
847110-007
Before removing the SSD, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the base enclosure (see Base enclosure on page 32).
5. Disconnect the battery (see Battery on page 34).

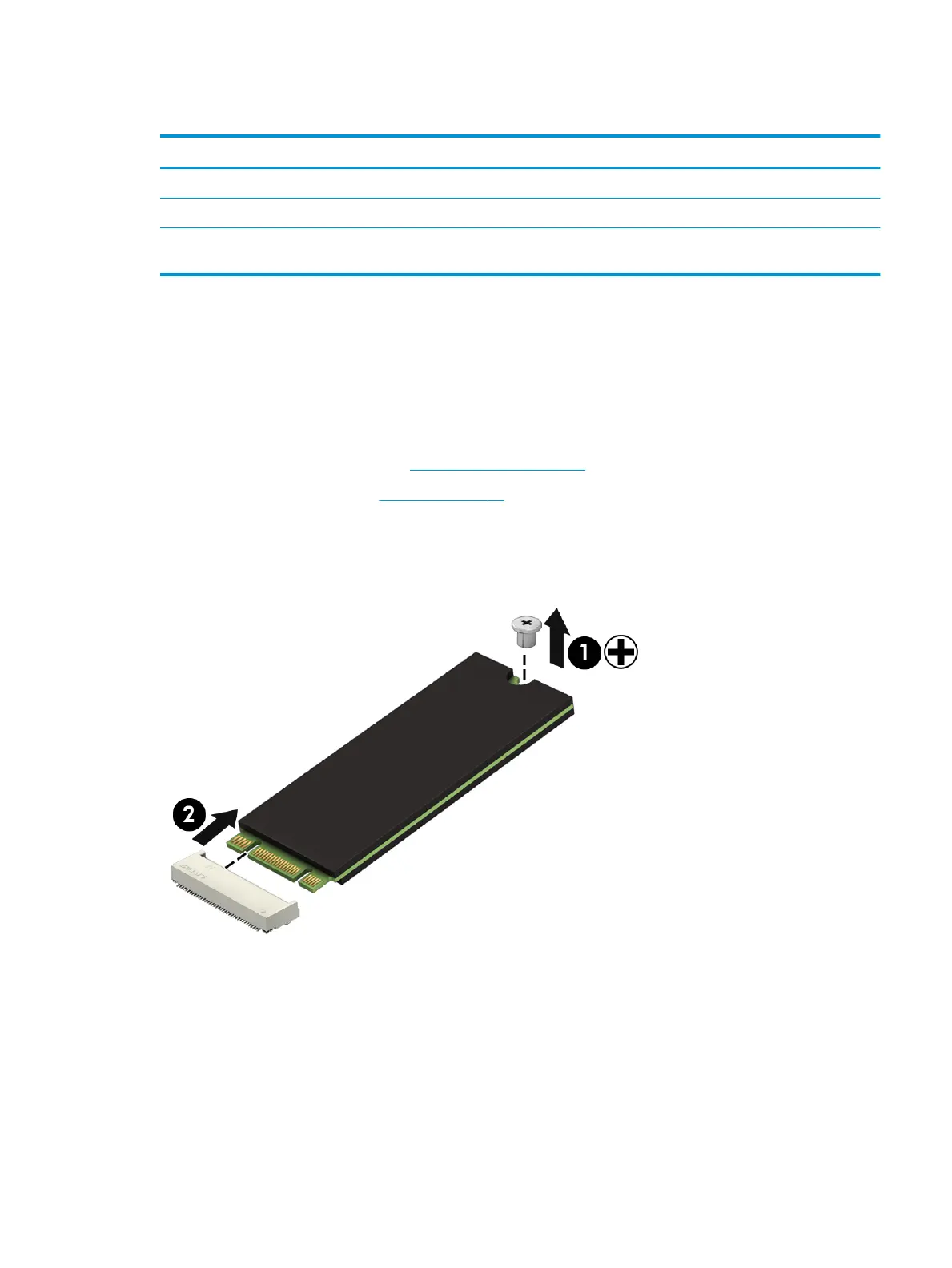

Remove the SSD:
1. Remove the Phillips M2.0 x 2.5 screw (1) that secures the SSD to the system board.
2. Remove the SSD (2) by pulling the drive away from the slot at an angle.
Reverse this procedure to install the SSD.
Component replacement procedures 41
