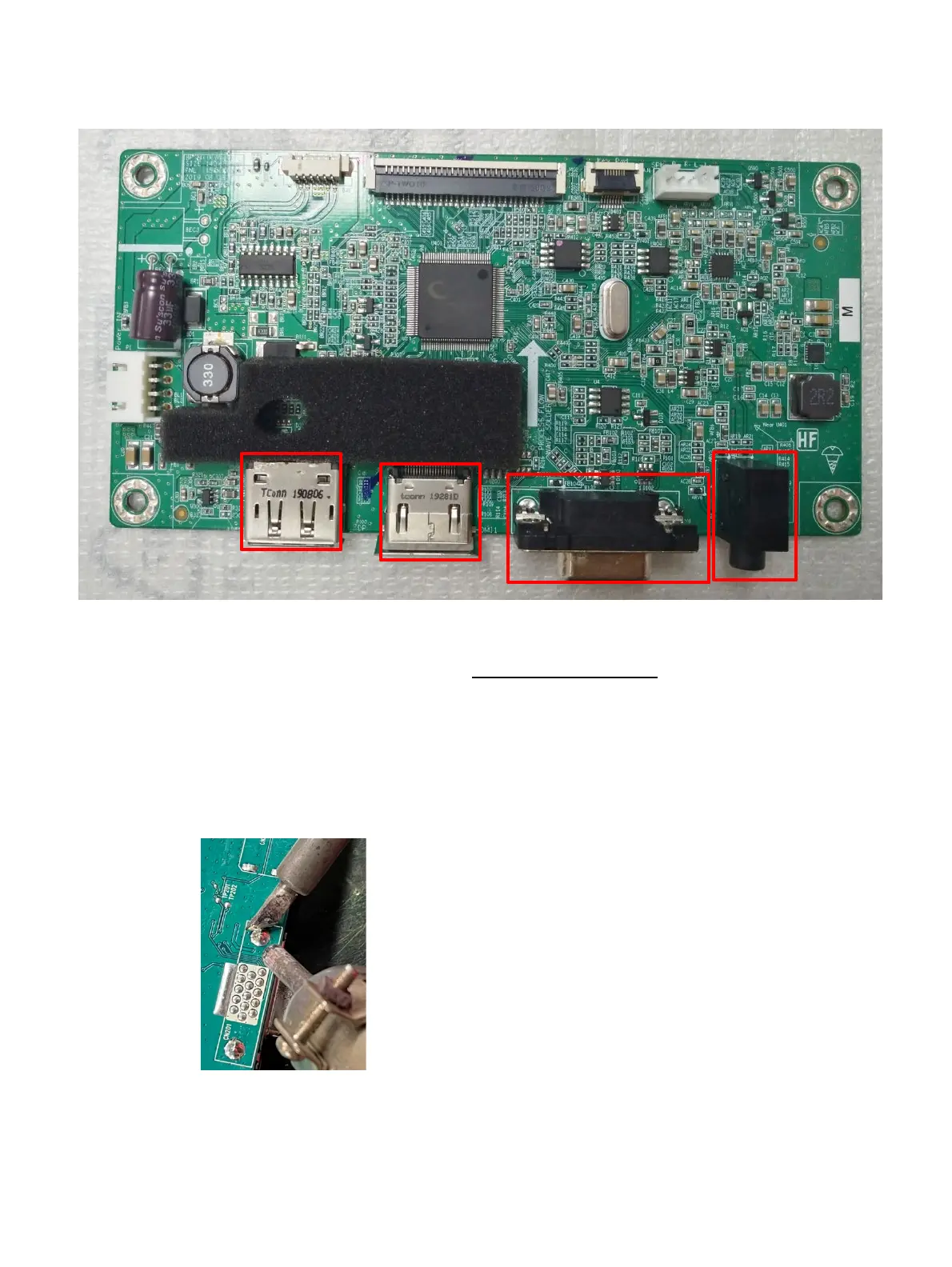

Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 22
.
VGA P101
Repair the VGA connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the CN201 out of the through holes.
2) Lift the P6 connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.
P300
P200
P101
AP1

HP P27h G4 Specifications

General

3D	No
Screen shape	Flat
Display diagonal	27 \
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HP segment	Business
Certification	Australian-New Zealand MEPS; BSMI; CB; CCC; CE; CEL; CSA; EAC; Energy Star; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; TUV-S; UL; VCCI; Vietnam MEPS; WEEE; ISC
Product color	Black
Country of origin	China
Market positioning	Home
Sustainability certificates	ENERGY STAR
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Package depth	190 mm
Package width	696 mm
Package height	450 mm
Package weight	7000 g

Weight and Dimensions

Depth (without stand)	211.6 mm
Width (without stand)	620.1 mm
Height (without stand)	498.6 mm
Weight (without stand)	5120 g
