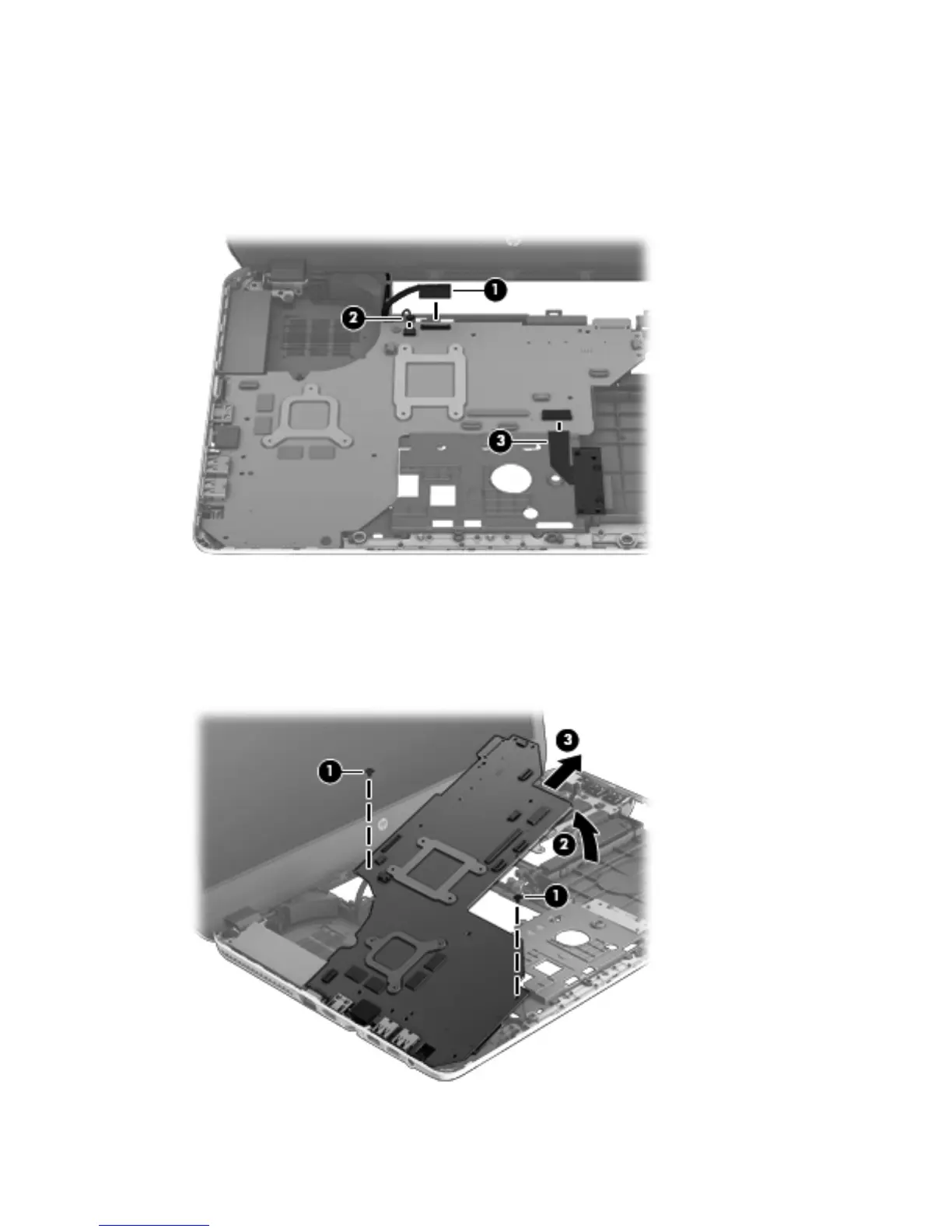

Disconnect the following cables from the system board:
(1) Display panel cable
(2) Left speaker cable
(3) Optical drive connector board ZIF cable
8. Remove the two Phillips PM2.5×3.5 screws (1) that secure the system board to the
base enclosure.
9. Lift the right side of the system board (2) until it rests at an angle.
10. Remove the system board (3) by sliding it up and to the right at an angle.
80 Chapter 4 Removal and replacement procedures
