19

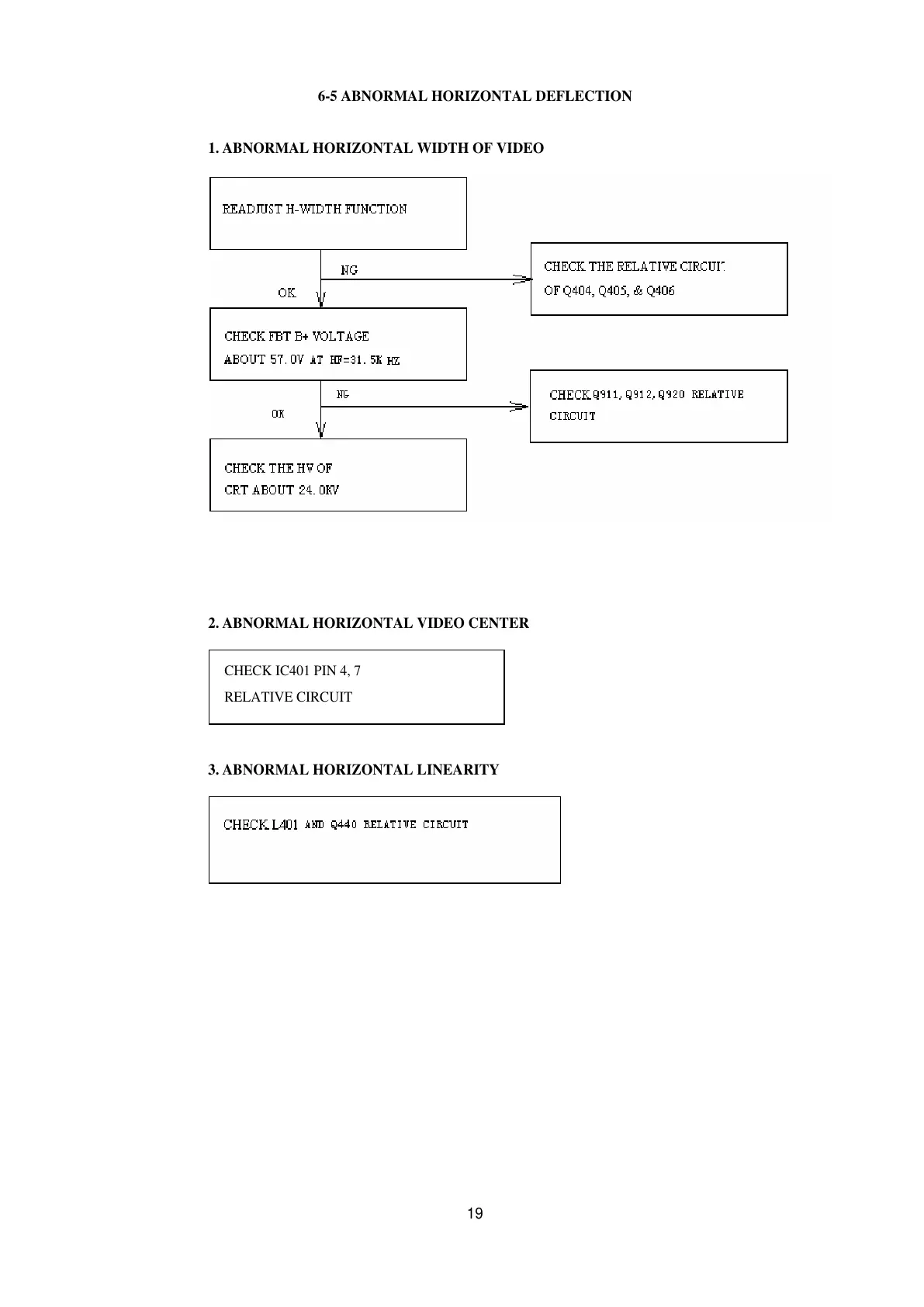

6-5 ABNORMAL HORIZONTAL DEFLECTION
1. ABNORMAL HORIZONTAL WIDTH OF VIDEO
2. ABNORMAL HORIZONTAL VIDEO CENTER
RELATIVE CIRCUIT
CHECK IC401 PIN 4, 7
3. ABNORMAL HORIZONTAL LINEARITY
