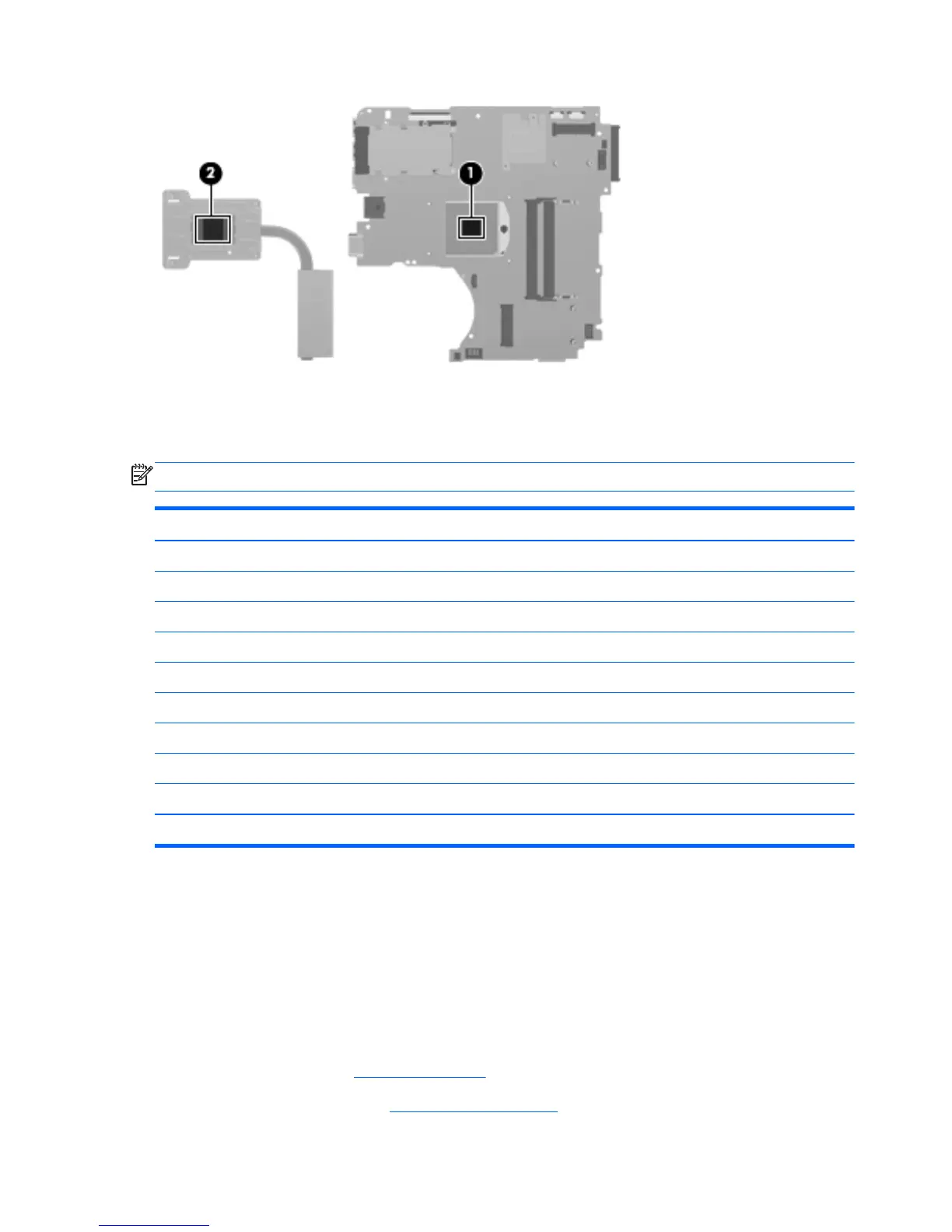

Reverse this procedure to install the heat sink.
Processor
NOTE: All processor spare part kits include replacement thermal material.
Description Spare part number
Intel Core i7 processor, Dual Core
2620M, 2.7-GHz (turbo up to 3.4-GHz) processor with 4-MB L3 cache 631252-001
Intel Core i5 processors, Dual Core
2540M, 2.6-GHz (turbo up to 3.3-GHz) processor with 3-MB L3 cache (includes thermal grease) 631255-001
2520M, 2.5-GHz (turbo up to 3.2-GHz) processor with 3-MB L3 cache (includes thermal grease) 631253-001
2410M, 2.3-GHz (turbo up to 2.9-GHz) processor with 3-MB L3 cache 638039-001
Intel Core i3 processors, Dual Core
2310M, 2.1-GHz processor with 3-MB L3 cache (includes thermal grease) 638037-001
Intel Celeron processor, Dual Core
B810, 1.6-GHz, with 2-MB L3 cache 646760-001
Before removing the processor, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 46).
5. Remove the bottom door (see
Bottom door on page 48).
68 Chapter 4 Removal and replacement procedures

HP ProBook 4430s Specifications

General

Bus type	DMI
Stepping	J1
Tjunction	100 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-2310M
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-2300 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Sandy Bridge
Processor frequency	2.1 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	21
Maximum number of PCI Express lanes	16
HDD speed	7200 RPM
HDD interface	SATA II
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	500 GB
Number of HDDs installed	1
Display diagonal	14 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Power supply type	AC/DC
Intel segment tagging	Enterprise
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
Audio system	SRS Premium Sound
Pointing device	Touchpad
Bluetooth version	2.0+EDR
Cabling technology	10/100/1000Base-T(X)
Operating system installed	Windows 7 Professional
Charging port type	DC-in jack
USB 2.0 ports quantity	3
Firewire (IEEE 1394) ports	0
AC adapter power	65 W
Battery capacity	47 Wh
Number of battery cells	6
Product color	Black
Country of origin	China
On-board graphics card ID	0x116
Discrete graphics card model	Intel® HD Graphics 3000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Processor code	SR04S
Processor ARK ID	52220
Processor package size	37.5 x 37.5 xrPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
