HP ProOne 600 G2 User Manual

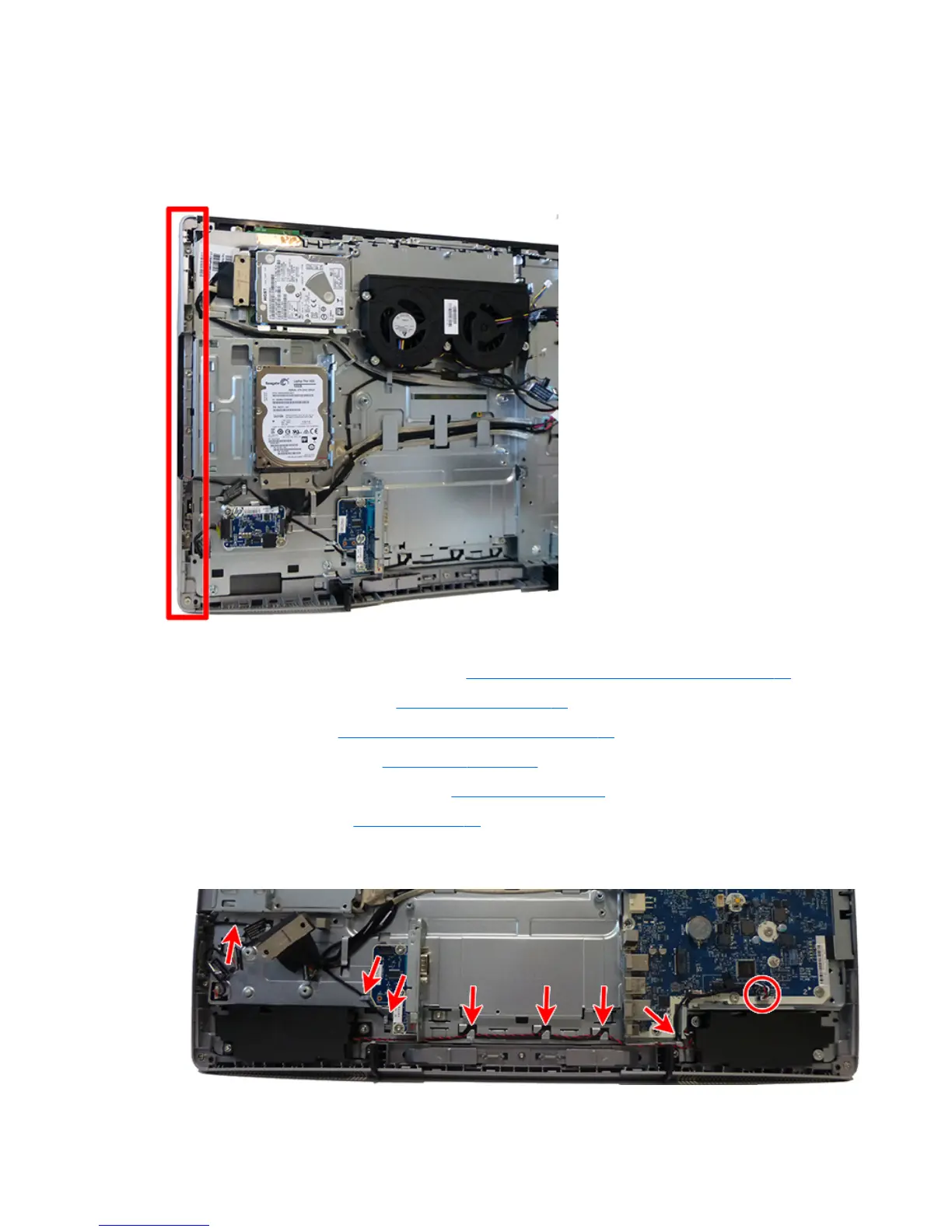

Right trim and ngerprint reader
The right trim can include an integrated ngerprint reader. One cable connects to the ngerprint reader, and
six Torx screws secure the trim. Two of the screws are located under a plastic piece at the mouth of the optical
drive on models so equipped.
To remove the right trim:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 31).
2. Remove the rear port cover (see Rear port cover on page 31).
3. Remove the stand (see Attaching and removing a stand on page 32).
4. Remove the access panel (see Access panel on page 37).
5. If installed, remove the optical drive (see Optical drive on page 41).
6. Remove the top trim (see Top trim on page 45).
7. If installed, disconnect the ngerprint reader cable from the system board and remove the cable from
the routing path near the bottom of the computer.
80 Chapter 4 Removal and Replacement Procedures

HP ProOne 600 G2 Specifications

General

Screen shape	Flat
LED backlight	Yes
Display diagonal	21.5 \
Native aspect ratio	16:9
Intel segment tagging	Enterprise, Professional
Memory slots	2
Internal memory	4 GB
Memory slots type	SO-DIMM
Memory clock speed	2133 MHz
Memory form factor	DIMM/SO-DIMM
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 4 GB
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Total storage capacity	500 GB
Compatible memory cards	SD
Number of storage drives installed	1
Audio system	DTS Studio Sound
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
AC adapter power	160 W
Product type	All-in-One PC
Motherboard chipset	Intel Q150
Total megapixels	2 MP
Product color	Black, Silver
Country of origin	China
Tcase	71 °C
Bus type	DMI3
Stepping	R0
Tjunction	- °C
Processor code	SR2BX
Processor cache	6 MB
Processor cores	4
Processor model	i5-6500
System bus rate	8 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-6500 Desktop series
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Number of QPI links	-
Processor frequency	3.2 GHz
Processor cache type	Smart Cache
Configurable TDP-down	- W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.6 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	65 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	2133, 1333, 1600, 1866 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
On-board graphics card ID	1912
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 530
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
Scalability	1S
Processor ARK ID	88184
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2, AVX 2.0, SSE4.1
Thermal solution specification	PCG 2015C
Intel Stable Image Platform Program (SIPP) version	1.00

Weight and Dimensions

Depth (with stand)	58.9 mm
Width (with stand)	531.4 mm
Height (with stand)	371.7 mm
Weight (with stand)	6760 g
