Huawei AP4030DN Hardware Installation And Maintenance Guide

Huawei AP4030DN
Hardware Installation and Maintenance Guide
2 AP Installation
Issue 02 (2015-05-18)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15

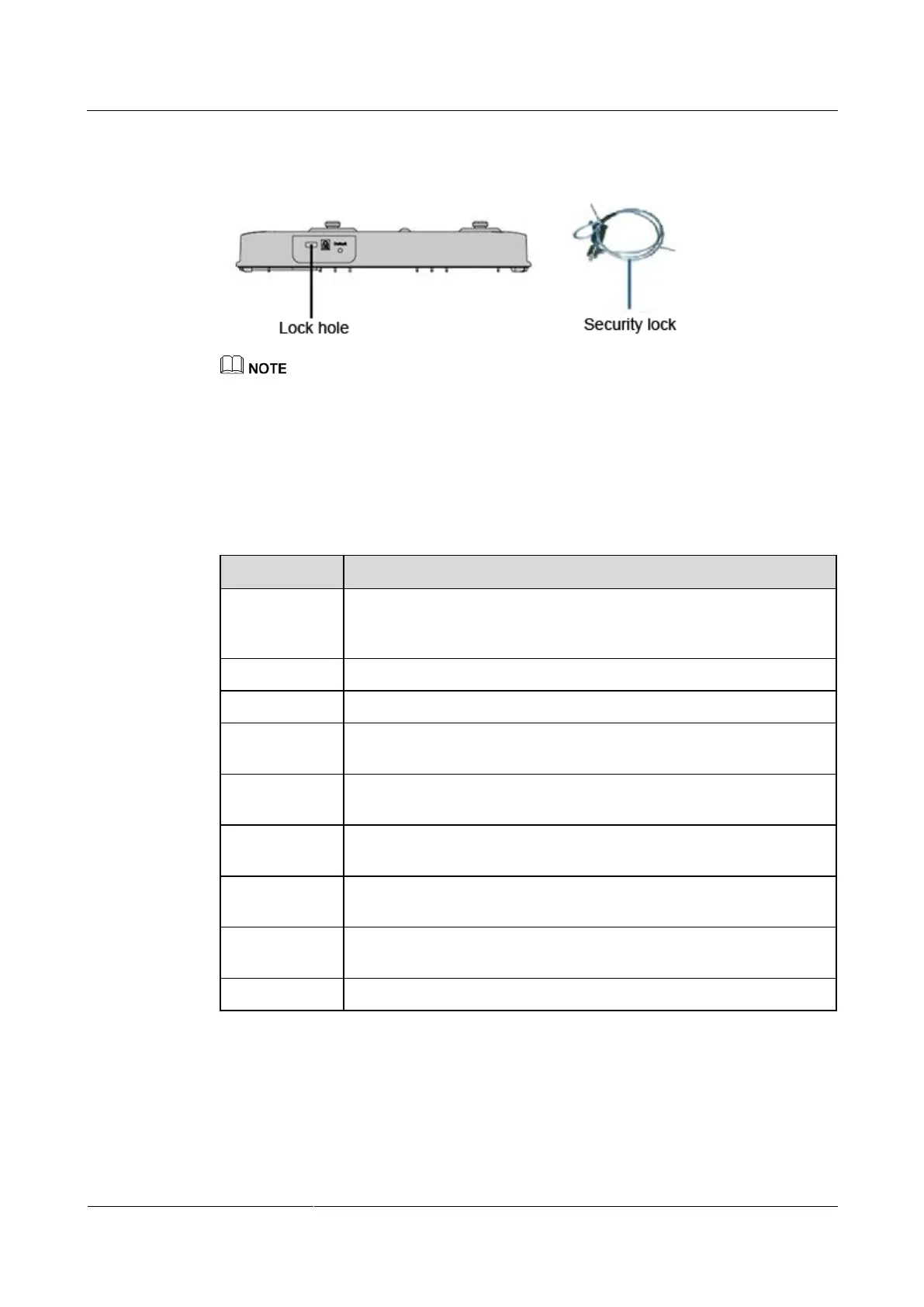

1. Fasten the cable of the security lock to an immovable object around.
2. Insert the security lock into the security slot and lock it.
You need to purchase the security lock separately.
2.8 Checking the AP After Installation
Table 2-3 shows the items to be checked after AP installation is complete.
Table 2-3 AP installation checklist
No.
Check Item
1
The AP is installed by strictly following the design draft. The
installation position meets space requirements, with maintenance space
reserved.
2
The AP is securely installed.
3
The power cables and PGND cables are intact and not spliced.
4
Terminals of the power cables and PGND cables are welded or cramped
firmly.
5
All power cables or PGND cables are not short-circuited or reversely
connected and must be intact with no damage.
6
The power cables and ground cables are separated from other cables and
bundled separately.
7
The working ground, protection ground, and surge protection ground
share the same group of ground bars.
8
Connectors of signal cables are complete, intact, and tightly connected.
The signal cables are not damaged or broken.
9
Labels on cables, feeders, or jumpers are clear and correct.
2.9 Powering on the AP
You can check the power-on status by observing indicators on the AP. For details, see 1.2
Indicator Description.

Huawei AP4030DN Specifications

General

2.4 GHz	Yes
Bandwidth	5 GHz
Frequency band	2.4, 5 GHz
Number of users	256 user(s)
Operating modes	Access Point (AP)
Channels quantity	13 channels
Number of VLAN IDs	4094
Transmitting power	20 dBmW
Scheduling features	Airtime scheduling, Queue mapping & scheduling
Control channel mode	Tagged & untagged
Fit AP mode features	802.11k & 802.11v smart roaming, AC dual-link backup, AC unified management & maintenance, Dual-MPP mesh networking, Mesh networking, Hotspot 2.0, Plug and Play, Service holding upon CAPWAP link disconnection, Unified authentication on the AC, WDS zero-configuration deployment, Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Rate adjustment type	Automatic & manual
Virtual LAN features	SSID-based VLAN assignment
Data unit aggregation	A-MPDU (Tx/Rx), A-MSDU (Rx only)
WLAN channel features	WLAN channel management, WLAN channel rate adjustment
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Location services supported	AeroScout tags, Ekahau tags, Wi-Fi terminals
Number of virtual APs (VAPs)	16
Wi-Fi Multimedia (WMM) features	WMM parameter management for each radio, WMM profile based packet scheduling, WMM profile based priority mapping, WMM power saving
Maximum data transfer rate (5 GHz)	867 Mbit/s
AC input voltage	12 V
Power consumption (max)	10.2 W
Internal	No
Placement	Table
Product color	White
LED indicators	Status
International Protection (IP) code	IP41
Flash memory	32 MB
Internal memory	256 MB
Security algorithms	802.1x RADIUS, WAPI, WEP, WPA, WPA2, WPA2-PSK
Device type identification	DHCP options, Organizationally Unique Identifier (OUI), User Agent (UA)
Service Set Identifier (SSID) features	Hidden SSID
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Operating altitude	-60 - 5000 m
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Local AP management	Serial port, Telnet
Antenna features	Integrated antenna
Antenna gain level (max)	6 dBi

Weight and Dimensions

Width	180 mm
Height	39.5 mm
Weight	400 g
