4 System Architecture
4.1 System Architecture Diagram
Figure 4-1 shows the E5180s-22 system architecture.

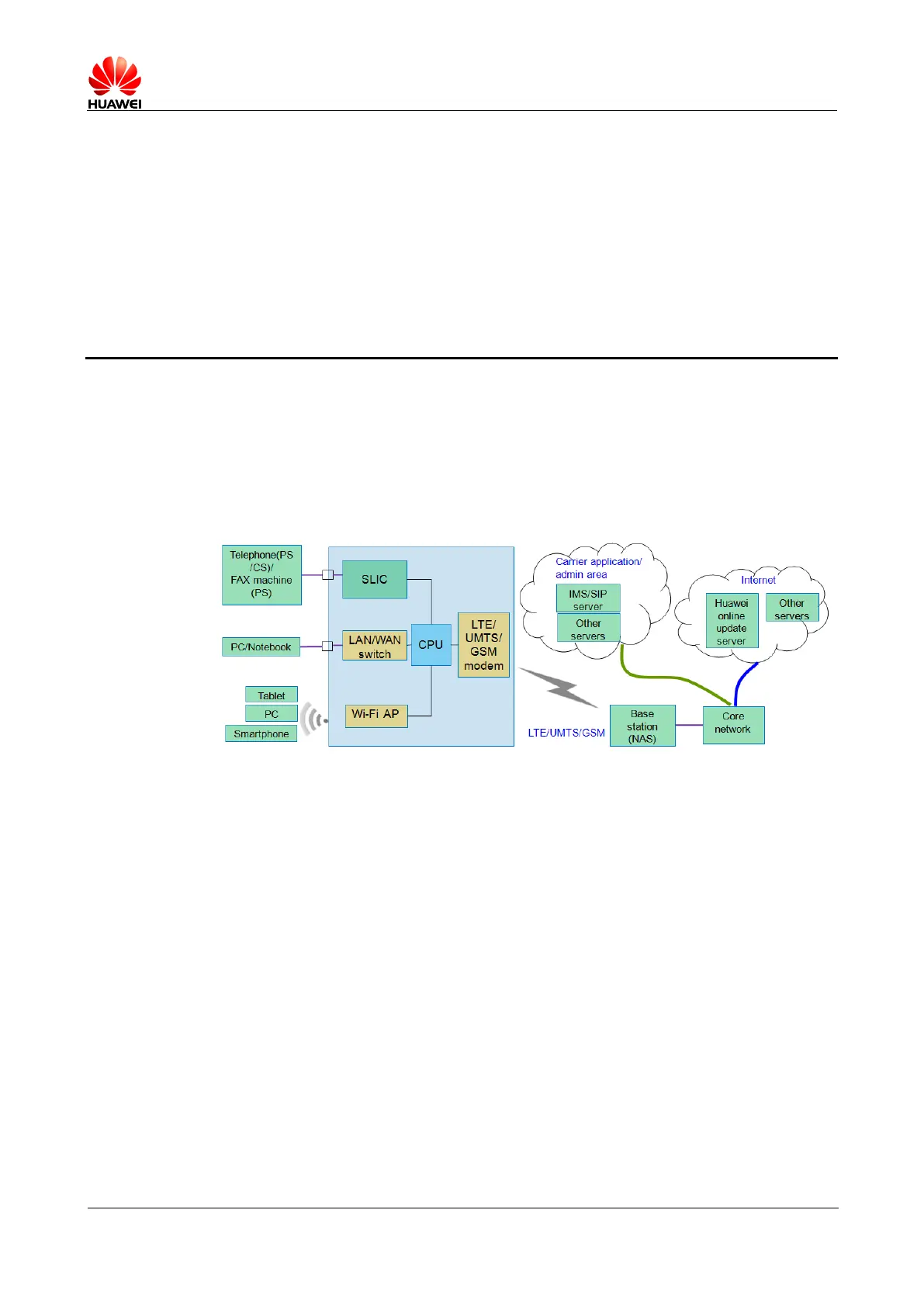

Figure 4-1 E5180s-22 system architecture
4.2 Functional Modules

LTE/UMTS/GSM modem
Processes the access, management, and data transmission of
LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM.

CPU
Transmits data and voices from the wireless metropolitan area network (WMAN)
to the LAN.

Subscriber Line Interface Circuit (SLIC)
Connects telephones or a fax to the E5180s-22.

LAN switch
Transmits data over Ethernet ports.

Wi-Fi access point (AP)
Enables wireless devices to connect to a LTE/UMTS/GSM network using Wi-Fi or
related standards.
