Port/Button

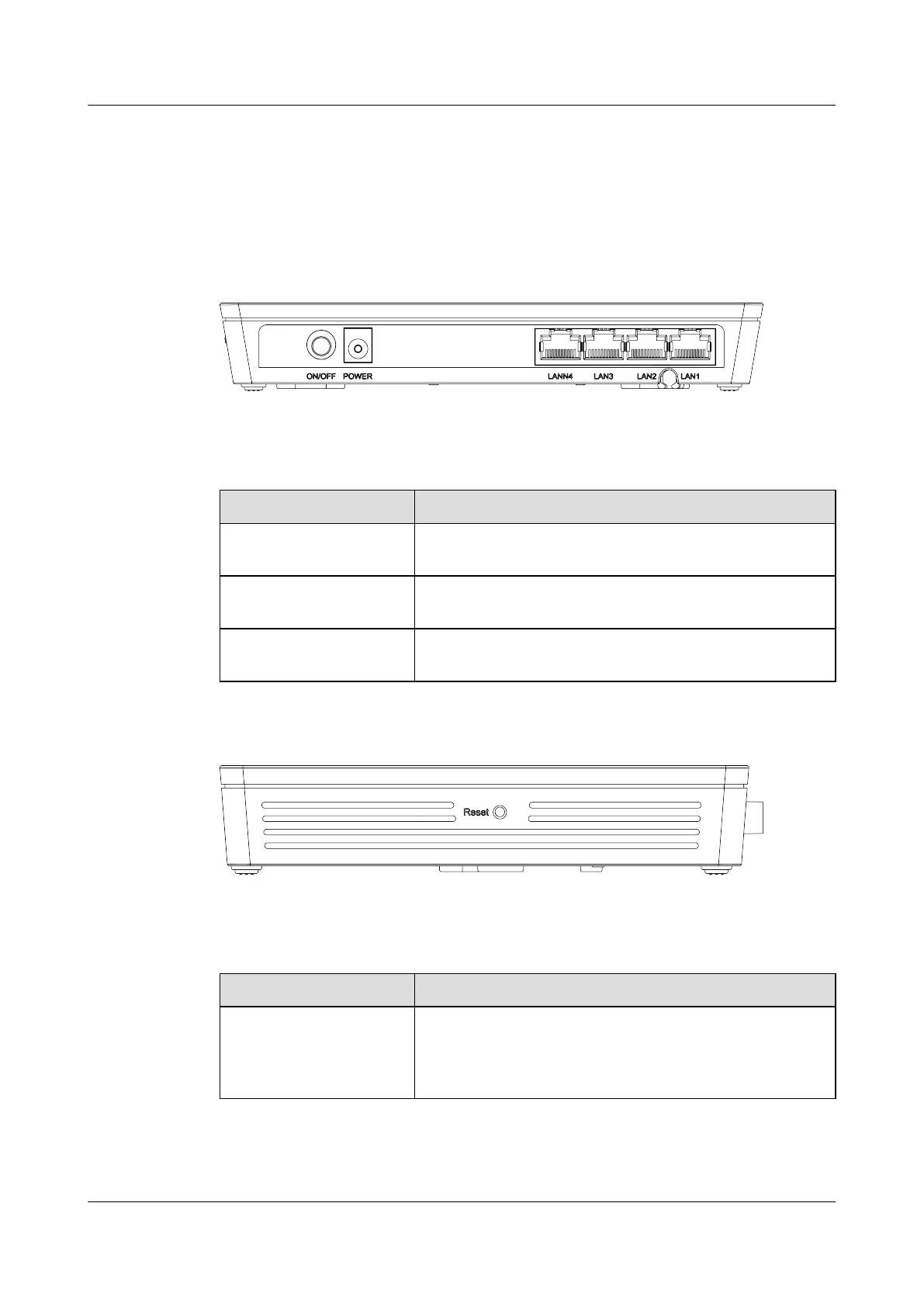

Figure 1-3 and Figure 1-4 show the ports on the rear panel and side panel of the HG8040H
respectively.
Figure 1-3 Ports and buttons on the rear panel of the HG8040H
Table 1-1 Description of ports and buttons on the rear panel of the HG8040H
Port/Button Function
ON/OFF
Indicates the power button. It is used to power on or power off
the device.
POWER
Indicates the power port, used to connect to the power adapter
or backup battery unit.
LAN1–LAN4
Indicates auto-sensing 10/100/1000M Base-T Ethernet ports
(RJ-45), used to connect to PCs or IP set-top boxes (STBs).
Figure 1-4 Ports and buttons on the side cover of the HG8040H
Table 1-2 Description of ports and buttons on the side cover of the HG8040H
Port/Button
Function
Reset
Indicates the reset button. Press the button for a short time to
reset the device; press the button for a long time (longer than
10s) to restore the device to the default settings and reset the
device.
Figure 1-5 shows optical ports on the HG8040H.
EchoLife HG8040H/HG8012H/HG8010H GPON Terminal
Product Description 1 Introduction
Issue 01 (2013-08-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
