The rotation must not be stopped until you hear a click. This is to ensure that the device is securely
installed and will not fall down and be damaged.
NOTICE
The rotation must not be stopped until you hear a click. This is to ensure that the device is securely
installed and will not fall down and be damaged.
NOTICE

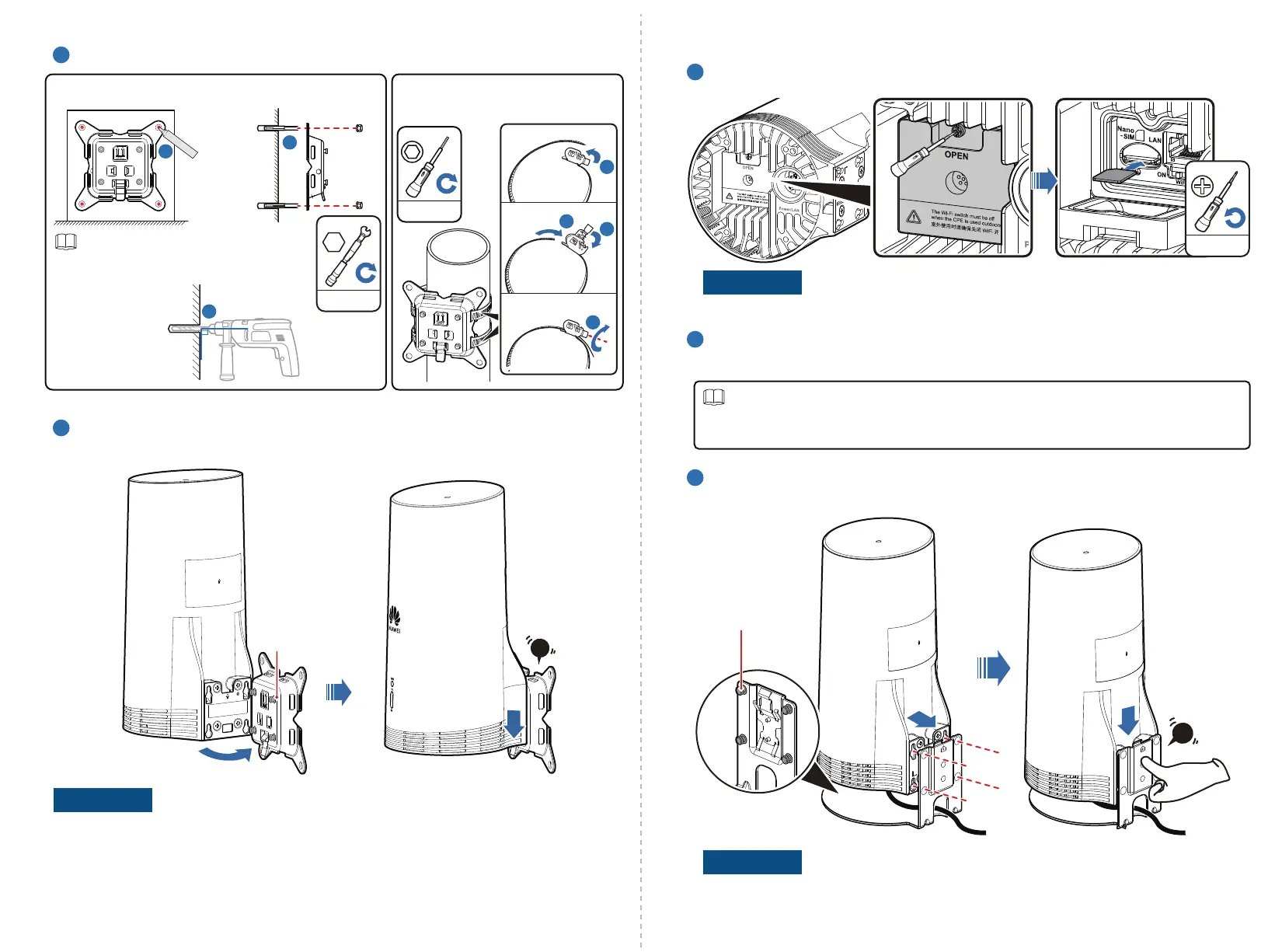

Hang the four cucurbit holes on the metal plate at the rear of the N5368X onto the four
gourd-shaped mounting pegs on the mounting bracket. If you hear a click, the N5368X is
installed properly.
3
NOTE
Installation scenario 1: wall-mounted Installation scenario 2: pole-mounted
1
2
3
7 N•m
M6
1
2
3
4
Install the mounting kits.
3
Hang the four cucurbit holes on the metal plate at the rear of the N5368X onto the four
gourd-shaped mounting pegs on the mounting bracket. If you hear a click, the N5368X is installed
properly.
4
90
。
7 N•m
M6
Recommended: φ8
40 mm to 45 mm
Ensure that the arrow on the mounting
bracket is pointing up.
Ka
Gourd-shaped
mounting peg
NOTE
Indoor Installation
2
Open the maintenance cover of the N5368X, install the nano SIM card, and secure the
maintenance cover.
1
Insert one end of an Ethernet cable into the Power/LAN port, and insert the other end into the
WAN/PWR port on the PSU through the hole at the bottom of the base. If another device needs to
be connected, insert another Ethernet cable into the LAN port in the N5368X maintenance cover.
2
The LAN port of the N5368X is used only indoors. If this port is used outdoors, the waterproof
function of the device may fail.
1.2 N•m
M4
Gourd-shaped
mounting peg
Ka
The WiFi switch must be off when the CPE is used outdoors.
NOTICE
To Next Page
