Huawei SUN2000-36KTL Installation Guide

Locate communication terminals (RS485) as shown in the picture below. There are
two connection terminals on the configuration circuit board: RS485IN and
RS485OUT (used for Daisy Chain connections)

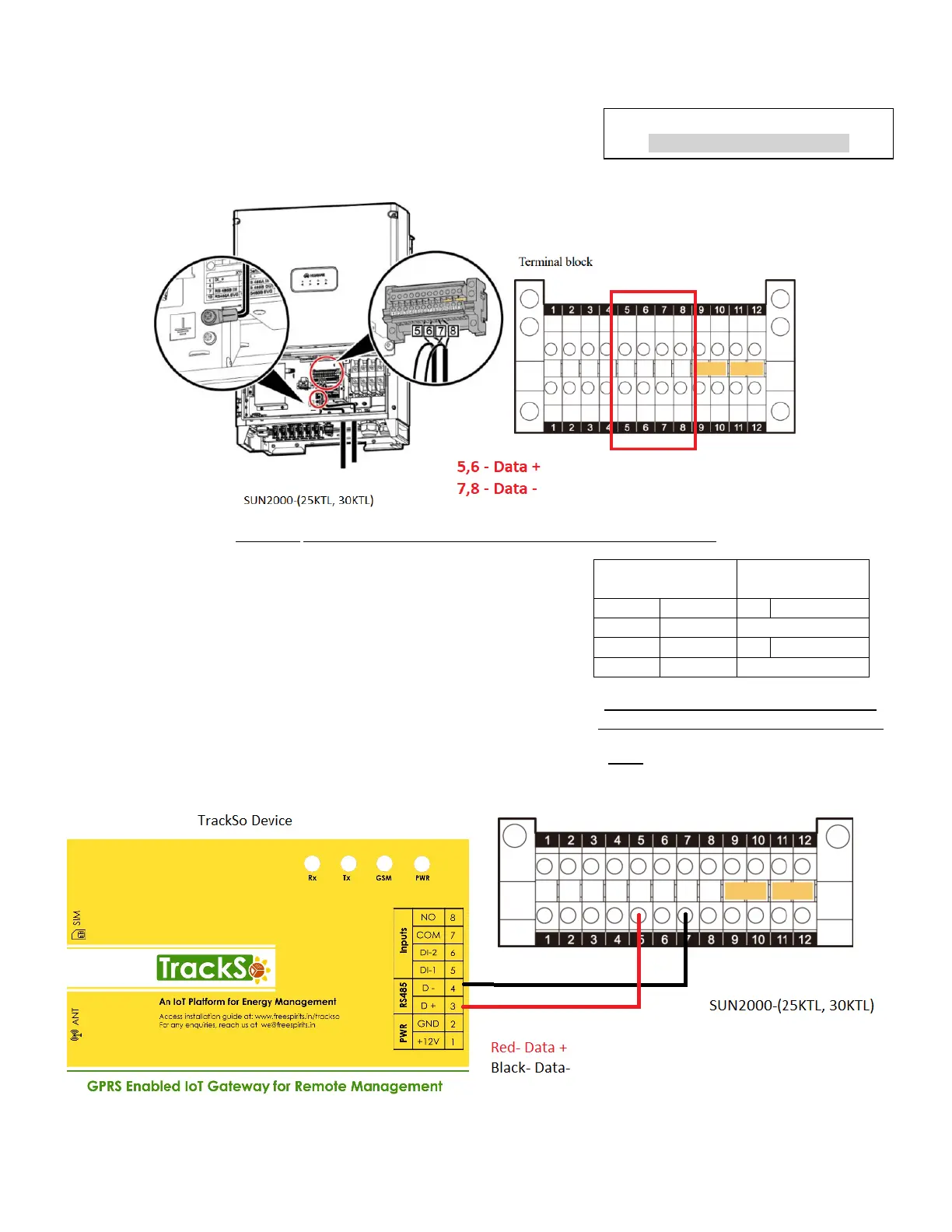

Figure H2: Huawei SUN2000-25KTL,30KTL communicatio port & Connections
Connection steps
• Please unscrew the RS485 terminal as shown in A part of Figure H2.
• Please make the connections from the Terminal Block to TrackSo IoT
Gateway as mentioned in Table – HT2.
• Provide 12V external supply to TrackSo IoT Gateway via 12V, 2A DC adaptor
provided in the package.
Table HT2 – Huawei SUN2000-25KTL,30KTL
RS485 connections with TrackSo IoT Gateway
Note: RS485 Out- Used in case of Multiple
Inverter Connection (Daisy chain).
Huawei Pin no. &
Assignment
TrackSo Pin No.&
Assignment
5
RS485A
3
Data+
6
RS485A
RS485 Out
7
RS485B
4
Data-
8
RS485B
RS485 Out
Following Connection Diagram is valid for
HUAWEI SUN2000-25KTL,30KTL

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
