Huawei SUN2000-36KTL Installation Guide

TRACKSO WORKING
1. Insure correct connections as detailed in the installation guide.

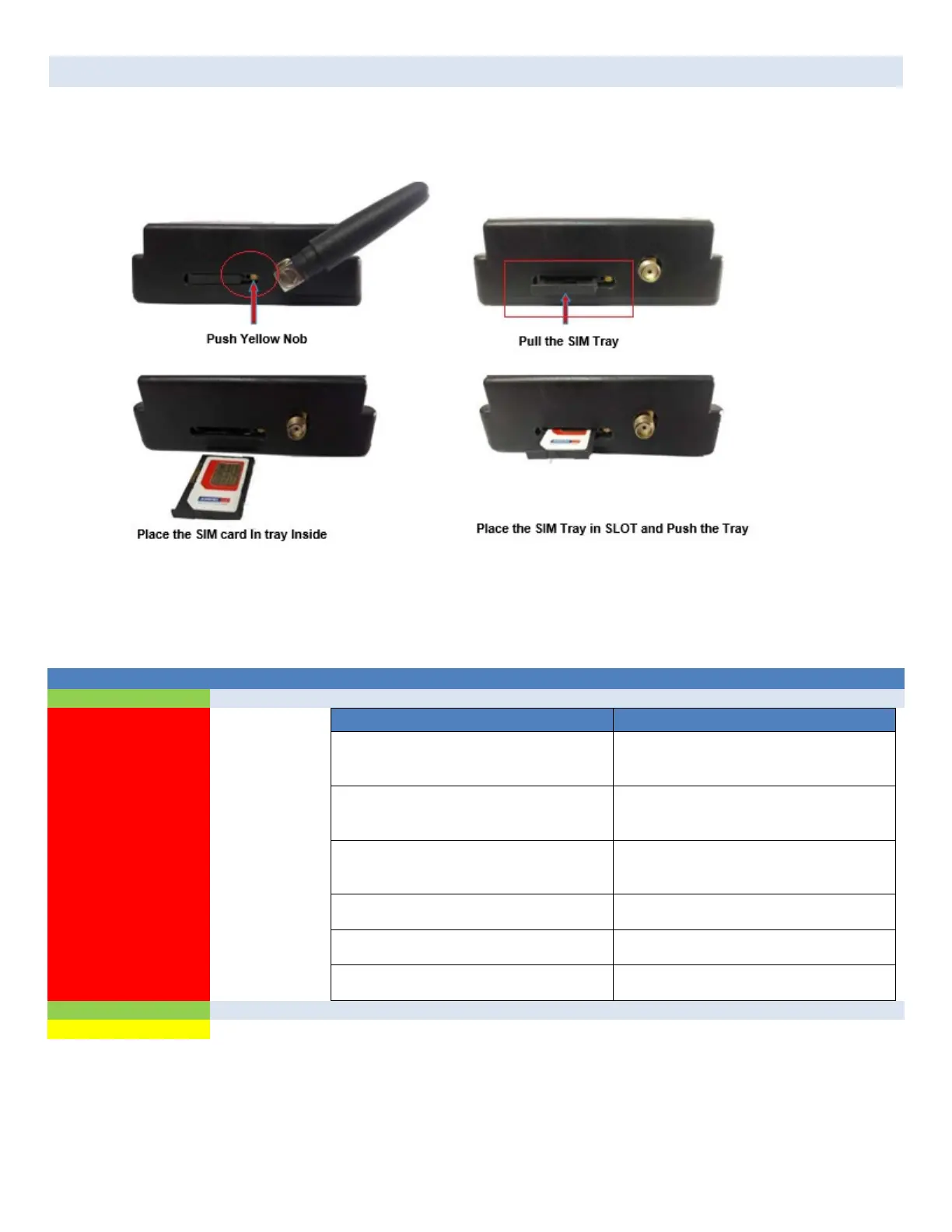

2. Insert the SIM card.
3. Switch on the power to the TrackSo device. (Minimum 12V/1A input is required)
4. Power LED (Red) of TrackSo IoT gateway glows and stays ON.
NOTE: TrackSo IoT Gateway will only be able to send data if the GPRS network is available at the installed location.
LED
NAME
DESCRIPTION
GREEN
POWER
Light when Power on the device
RED GSM
LED Status
Connection State
Flashing (ON for 100ms and OFF for
100ms)
SIM Card not found
Flashing (ON for 500ms and OFF for
500ms)
Searching for GSM Network
Flashing (ON for 0.1s and OFF for 2.9s)
Once at every 3sec
GSM Network Registered
Flashing twice at every 3sec
GPRS IP Connected
Flashing 5times
GPRS IP Sending data
LED OFF
GSM Fault
GREEN
COM TX
Blink on data transmission in RS485 port
YELLOW
COM RX
Blink on data reception in RS485 port

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
