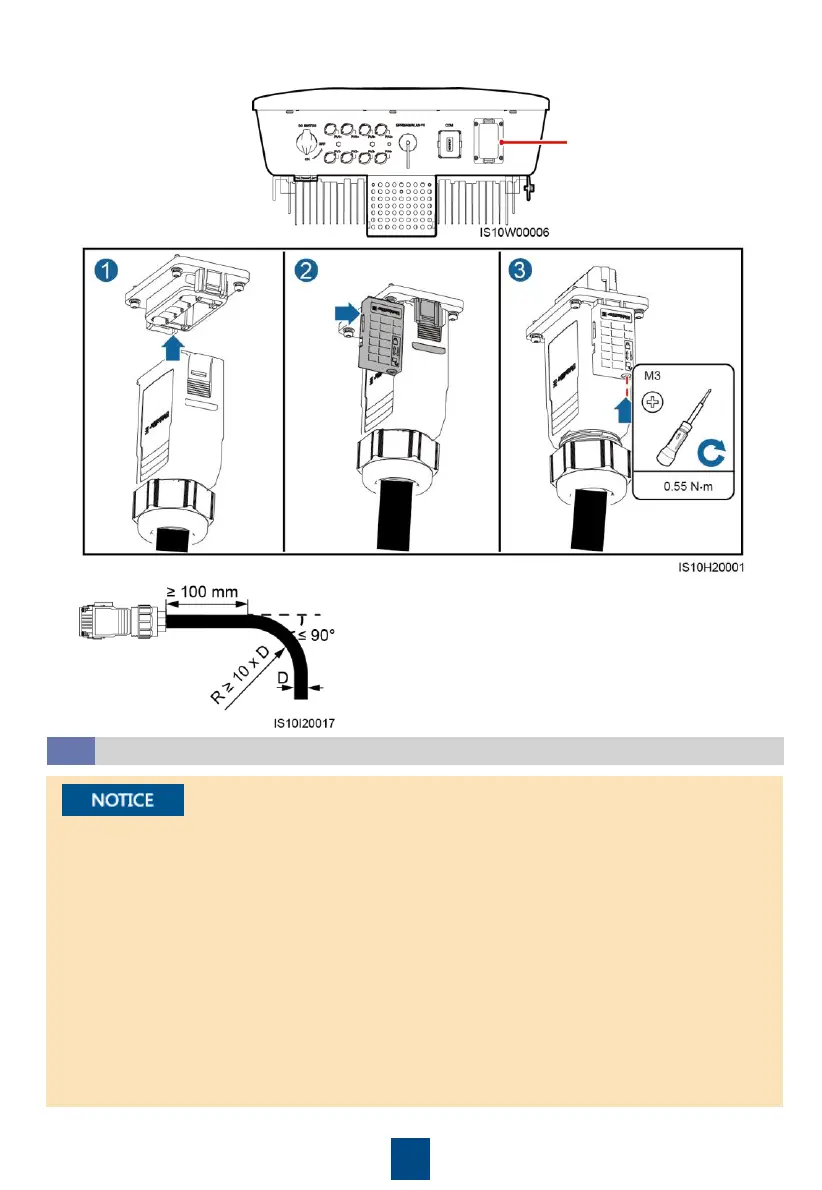

2. Connect the AC connector to the AC output port.
AC output port (AC)
7
Installing the DC Input Power Cable
3.4
3. Check the route of the AC output power cable.
1. Use the Amphenol Helios H4 PV connectors supplied with the inverter. If the PV connectors are
lost or damaged, purchase the connectors of the same model. The device damage caused by
incompatible PV connectors is not covered under any warranty.
2. Crimp the metal stamping forming contacts using crimping tool H4TC0003 (Amphenol,
recommended) or H4TC0002 (Amphenol).
3. Ensure that the PV module output is well insulated to ground.
4. The DC input voltage of the inverter shall not exceed 1080 V DC under any circumstance.
5. Before installing the DC input power cable, label the cable polarities to ensure correct cable
connections.
6. If the DC input power cable is reversely connected, do not operate the DC switch as well as
positive and negative connectors immediately. Failing to do so may cause device damage, which
is not covered under any warranty. Wait until the night when solar irradiance declines and the PV
string current drops to below 0.5 A. Then set the DC switch to the OFF position, remove the
positive and negative connectors, and correct the polarities of the DC input power cable.
