12 13
TANK
PRESSURE
GAUGE

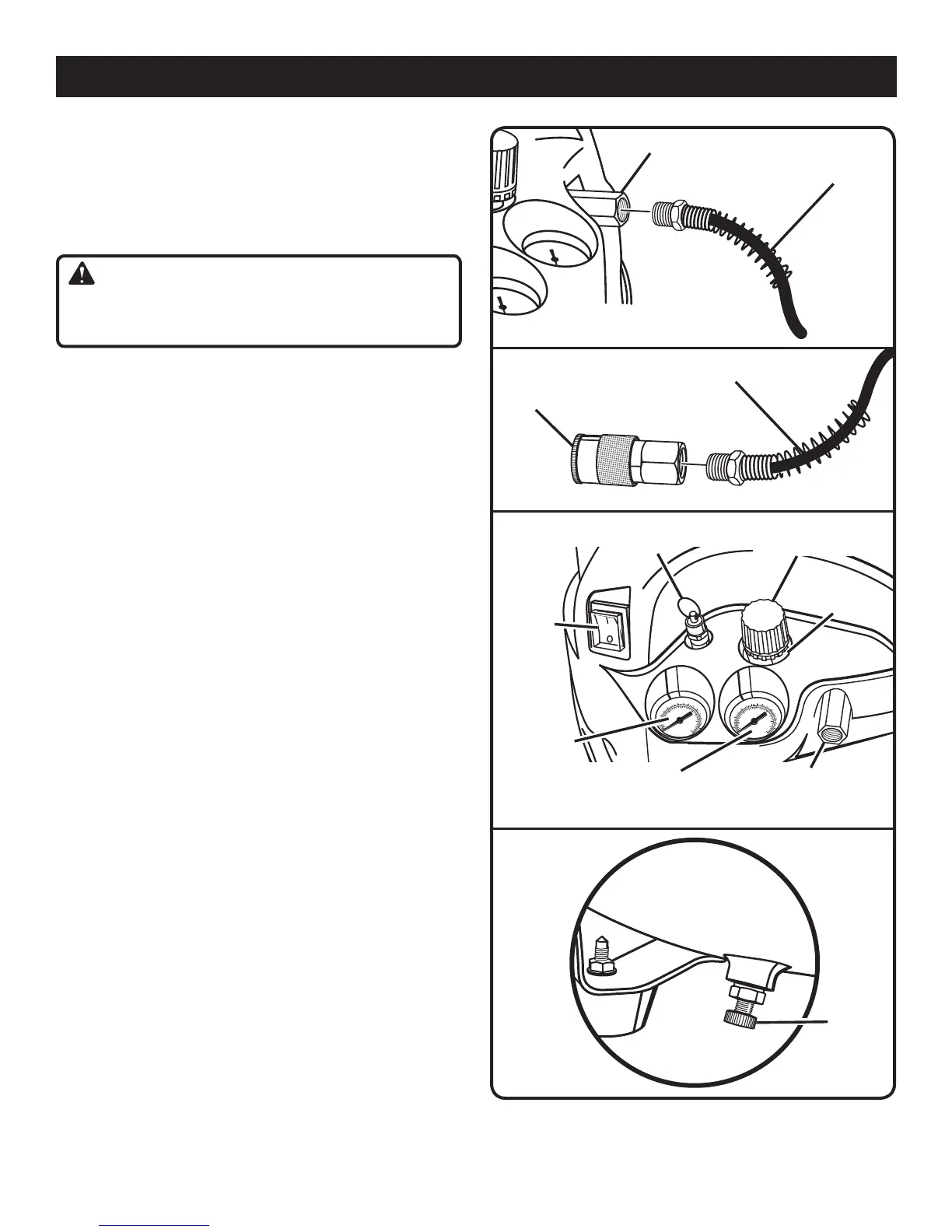

n Insert thread end of hose into open end of air outlet fit-
ting. Use open-end wrench to tighten securely.
NOTE: Be careful not to allow threads to become
cross-threaded.
n Attach quick coupler to open end of hose and tighten
securely.
WARNING:
Do not attach air chuck or other tool to the open end of
the hose until start-up has been completed.
n Firmly grasp the open end of the hose; hold facing
away from yourself and others.
BREAKING IN THE PUMP
See Figures 6 - 7.
n Check and tighten all bolts, fittings, etc.
n Turn the pressure regulator knob fully clockwise to
open the air flow. Turn the locking nut clockwise to
lock.
n Place the switch in the OFF position and plug in the
power cord.
n Open the drain valve completely.
n Turn the air compress ON ( l ) and run the air compres-
sor for 10 minutes to break in pump parts.
n Place the switch in the OFF position.
n Close the drain valve.
Fig. 6
Fig. 7
6
0
4
0
8
0
4
6
2
1
0
1
2
b
ar
p
s
i
1
0
0
1
2
0
1
40
6
0
4
0
8
0
4
6
2
1
0
1
2
b
a
r
p
s
i
1
0
0
1
2
0
14
0
ON/OFF
SWITCH
SAFETY
VALVE
PRESSURE
REGULATOR KNOB
REGULATOR
PRESSURE GAUGE
AIR
OUTLET
DRAIN
VALVE
ASSEMBLY
AIR OUTLET FITTING
HOSE
Fig. 4
Fig. 5
COUPLER
HOSE
LOCKING
NUT
