REPAIR PARTS BAG OF PARTS
SNOW THROWER - MODEL NO.
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

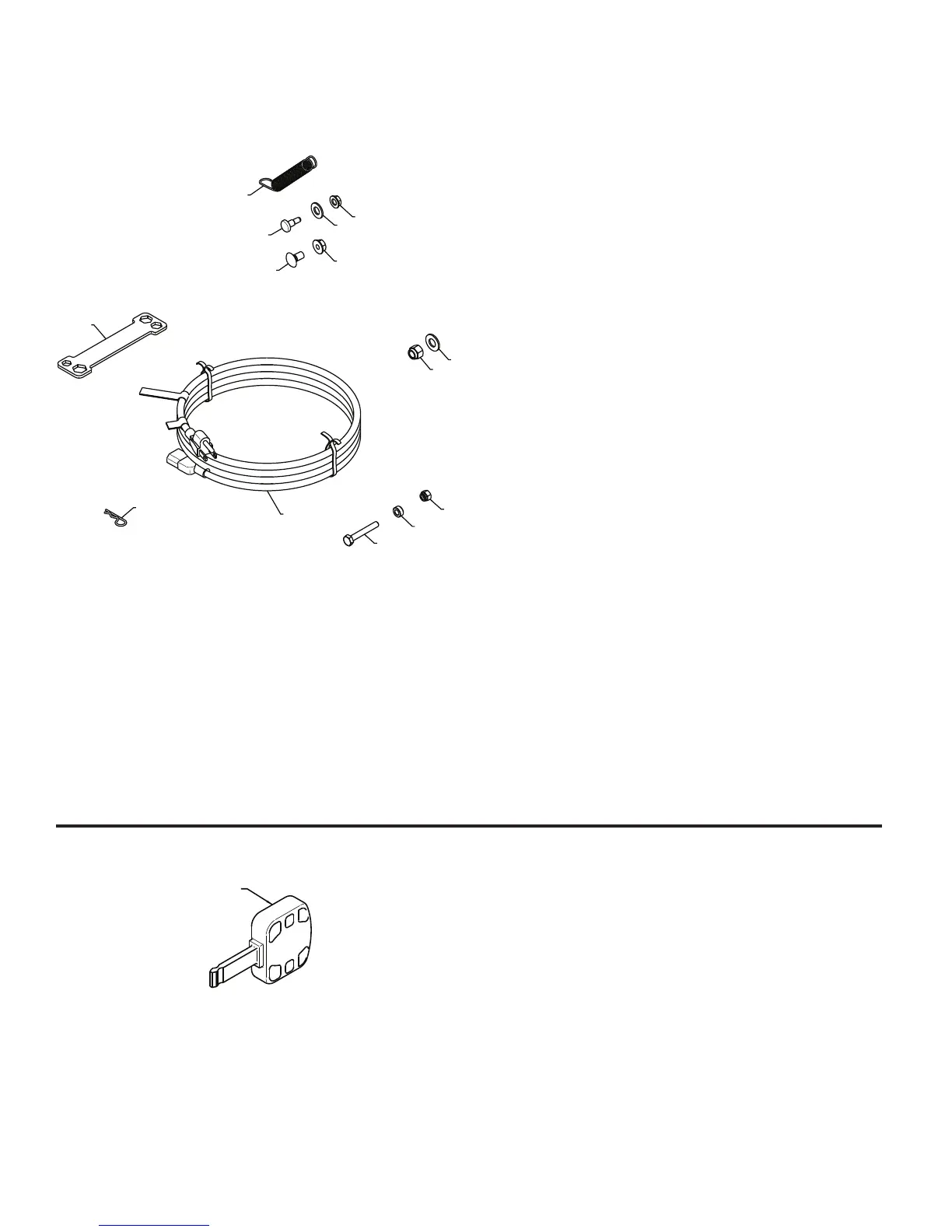

KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
01.14.008-A
1 532 03 50-62 SAFETY IGNITION KEY
1
2
3
4
5
6
7
8
9
10
11
14
12
13
01.14.003-A
1 532 19 85-63 POWER CORD
2 532 16 96-75 RETAINER PIN
3 532 18 06-84 WRENCH
4 532 18 45-05 REMOTE SPRING
5 532 17 98-29 SHOULDER BOLT 1/4−20
6 532 17 92-46 NYLON WASHER 1/4−20
7 532 19 17-30 LOCKNUT 1/4−20
8 872 25 05-05 CARRIAGE BOLT 5/16−18 X 5/8
9 532 75 11-53 LOCKNUT 5/16−18
10 873 80 06-00 LOCKNUT 3/8−16
11 819 13 13-16 WASHER 3/8
12 532 19 86-36 SHEAR BOLT 1/4−20 X 1−3/4
13 532 19 86-38 SPACER
14 873 80 04-00 LOCKNUT 1/4−20
