English
14

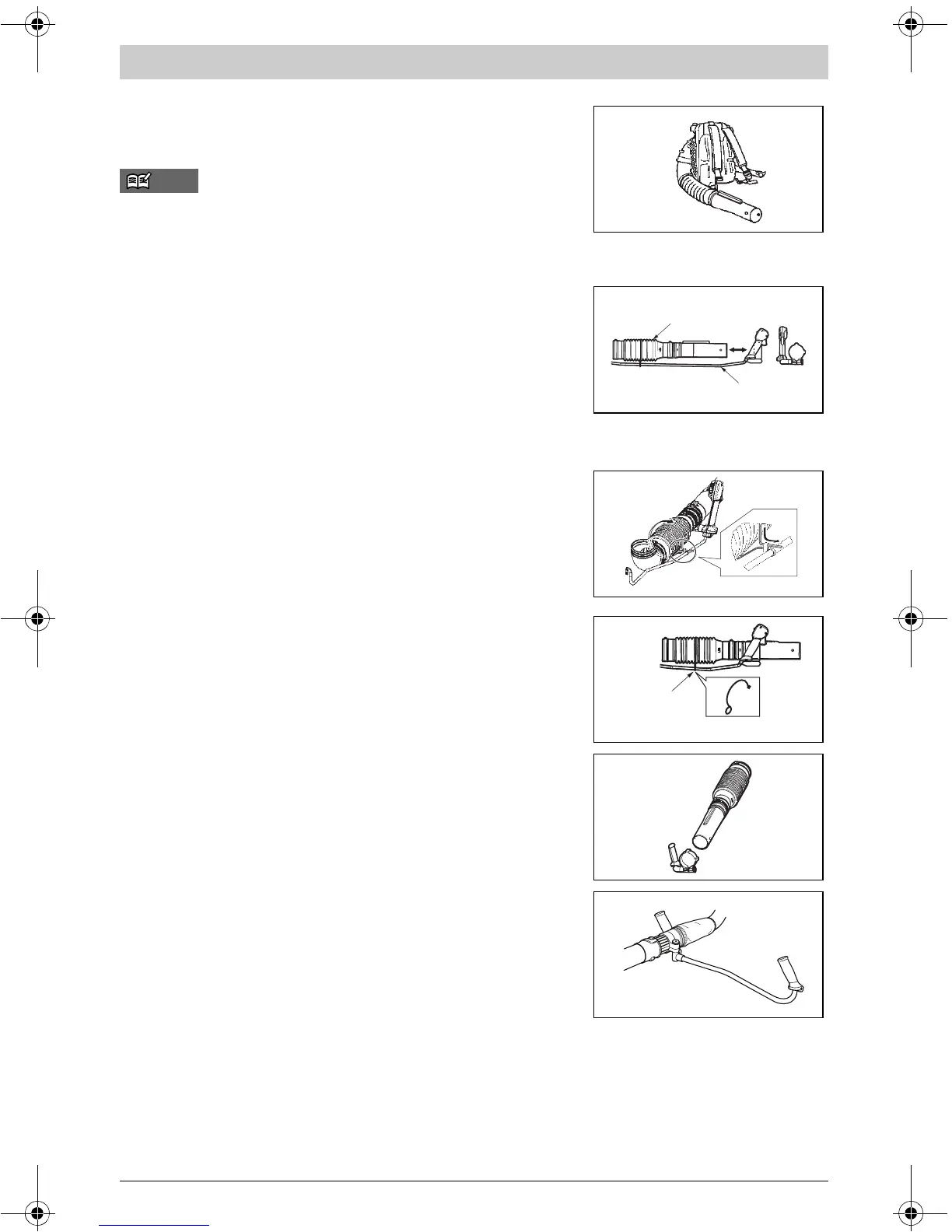

SWIVEL JOINT
1. Connect the blower and swivel joint with flexible hose. Clamp both
ends of the flexible hose securely with the hardware supplied with the
unit.
NOTE
A light lubricant may be used to ease assembly of flexible hose to
blower elbow.
THROTTLE LEVER [130BT/150BT/170BT/180BT]
1. Set up the throttle holder to the swivel and tighten the screw on the
holder.
When setting up the holder, please make sure to match the holder to the
convex on the swivel joint as shown in F2.
2. Adjust the position and angle to achieve a comfortable working
position, and tighten the throttle lever.
(1) Cable
(2) Hose
THROTTLE CABLE [130BT/150BT/170BT/180BT]
[130BT]
• Fasten the throttle cable at central position of the hose by the band
attached to the throttle cable.
First, wrap the hose with the band fixed to the throttle cable from the
lower side.
Then, pass the band through a hole of the band as shown in figure.
Please note that there is a possibility of damaging the hose if the
band is fastened too tightly.
[150BT] [170BT] [180BT]
• Use the clamp to fasten the colgate tube containing the throttle cable
and the power cable to the hose.
(1) Clamp
RIGHT HANDLE [150BF/170BF/180BF]
• Insert the handle holder to the swivel and tighten the screw on the
holder.
When setting up the holder, please make sure to match the holder to the
convex on the swivel joint as shown in F5.
HANDLEBAR [OPTION] [130BT/150BT/170BT/
180BT]
1. Insert the holder, then assemble the handlebar (OPTION) and tighten it
securely.
F1
(1)
(2)
F2
F3
[130BT]
(1)
F4
[150BT] [170BT] [180BT]
F5
F6
Assembly
130BT&180BTUS‑65.fmPage14Friday,December7,20071:05PM
