6 – English
WHA T IS WHA T?

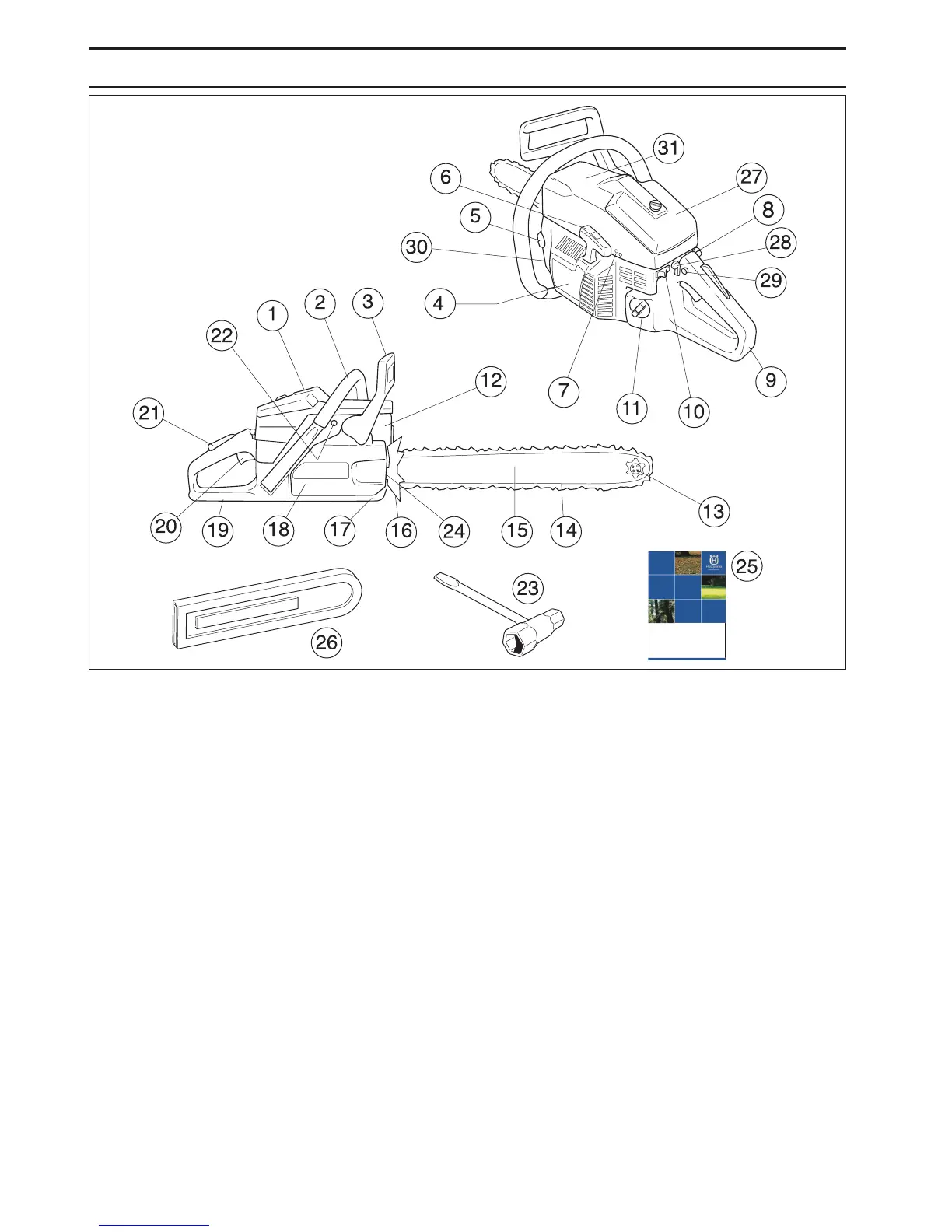

What is what on the c hain saw?
1 Cylinder cover
2 Front handle
3 Front hand guard
4 Starter
5 Chain oil tank
6 Starter handle
7 Adjuster screws carburetor
8 Choke control
9 Rear handle
10 Stop switch (Ignition on/off switch.)
11 Fuel tank
12 Muffler
13 Bar tip sprocket
14 Chain
15 Bar
16 Bumper spike
17 Chain catcher (Catches chain if it jumps or breaks.)
18 Clutch cover with built-in chain brake.
19 Right hand guard (Protects right hand if chain breaks
or jumps.)
20 Throttle control
21 Throttle lockout (Prevents accidental operation of
throttle control.)
22 Decompression valve
23 Combination spanner
24 Chain tensioning screw
25 Operator’s manual
26 Bar guard
27 Air filter cover
28 Lever for extra chain oil.
29 Half throttle lock button.
30 Product and serial number plate
31 Information and warning decal
