Husqvarna 125C User Manual

12

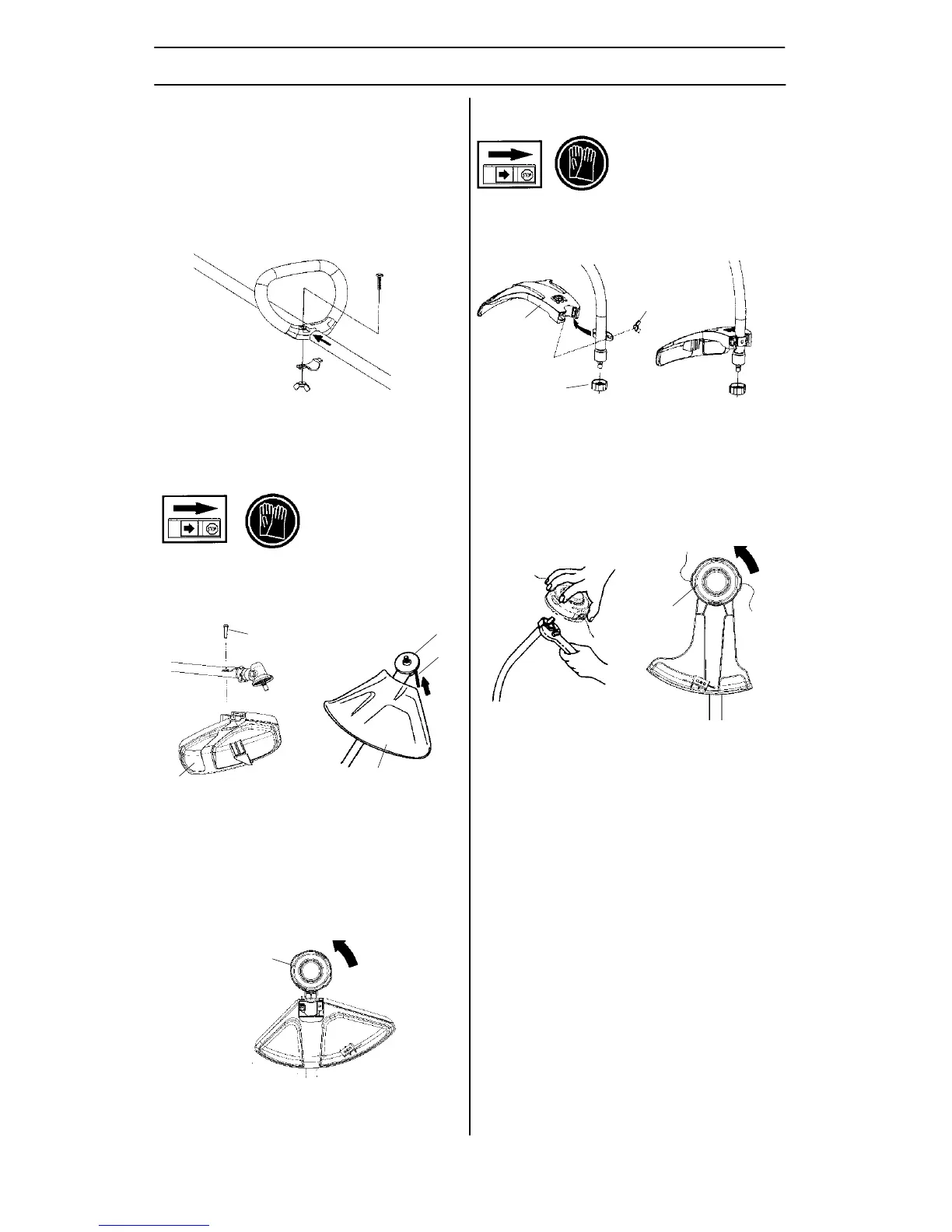

ASSEMBLY
Fitting the trimmer g uard and
trimmer head (Model 125L)
S Fit the correct trimmer guard (A) for use
with the trimmer head. Hook the trimmer
guard/combination guard onto the fitting
on the shaft and secure with the bolt (D).
Make sure unit is assembled
correctly as shown in this
manual.
Fitting the loop handle
S Position the handle on the shaft. Note
that the handle must be mounted be-
tween the two arrows on the shaft.
S Fit the screw, securing plate and wing
nut as shown in the diagram.
S Tighten the wing nut.
A
D
A
B
C
S Fit the drive disc (B) on the output shaft.
S Turn the shaft until one of the holes in the
drive disc aligns with the corresponding
hole in the gear housing.
S Insert hex wrench (C) in the hole to lock
the shaft.
S Screw on the trimmer head (H) in the op-
posite direction to the direction of rota-
tion.
H
S To dismantle, follow the instructions in
the reverse order.
Fitting the trimmer guard and
trimmer head (Model 125C)
S Fit the correct trimmer guard (A) for use
with the trimmer head. Hook the trimmer
guard/combination guard onto the fitting on
the shaft and secure with the wing nut (B).
A
C
B
S Fit the dust cup (C) on the shaft. The nut
must be completely covered by the dust
cup.
S Hold the dust cup with a wrench to pre-
vent the shaft from rotating.
S Screw the trimmer head (D) onto the
shaft.
S To dismantle, follow the instructions in
the reverse order.
D

Husqvarna 125C Specifications

General

Brand	Husqvarna
Model	125C
Category	Trimmer
Language	English
