1 2 3
_23 24 21
9
10

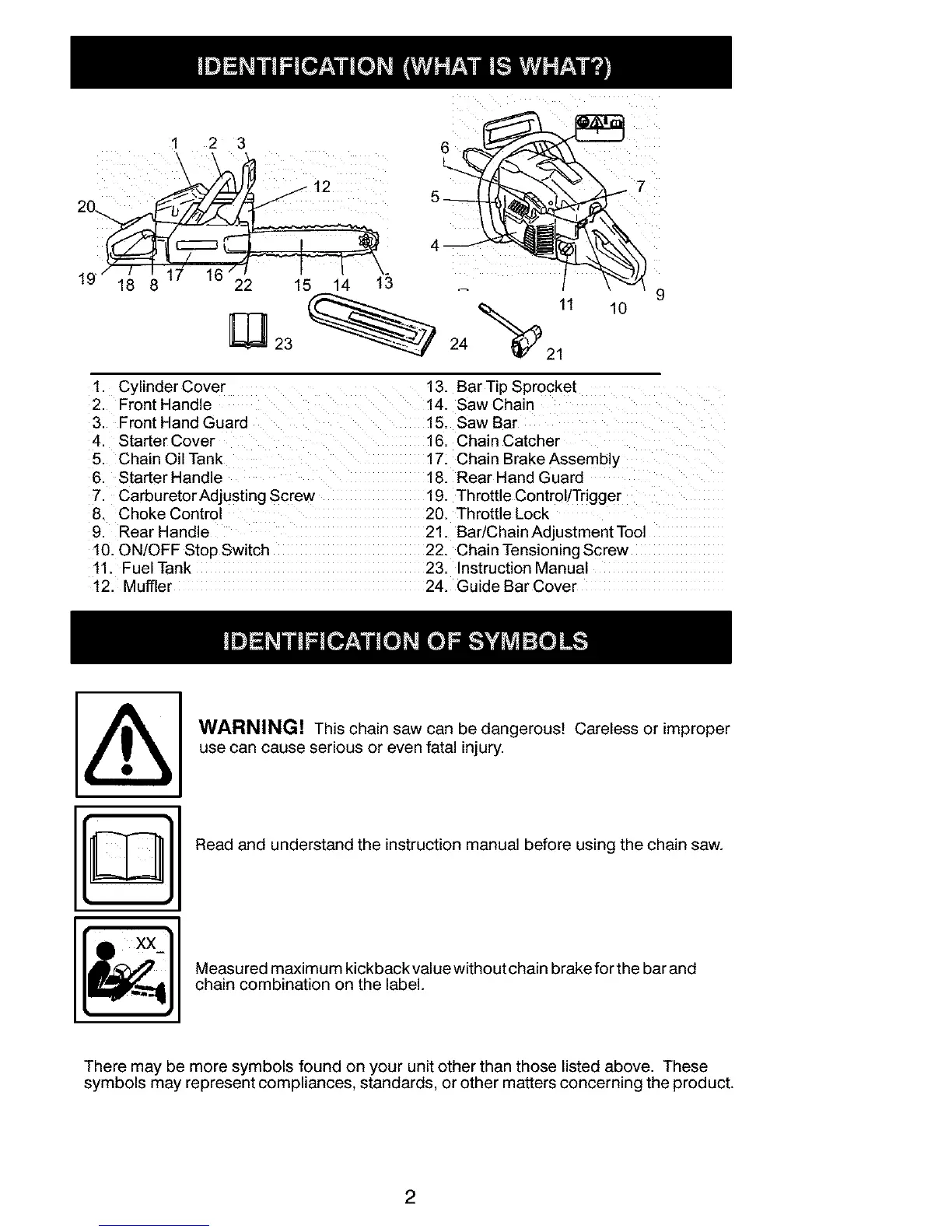

1. Cylinder Cover
2. Front Handle
3. Front Hand Guard
4. Starter Cover
5. Chain Oil Tank
6. Starter Handle
7. CarburetorAdjusting Screw
8. Choke Control
9. Rear Handle
10. ON/OFF Stop Switch
11. Fuel Tank
13. Bar Tip Sprocket
14. Saw Chain
15. Saw Bar
16. Chain Catcher
17. Chain Brake Assembly
18. Rear Hand Guard
19. Throttle Control/Trigger
20. Throttle Lock
21. Bar/Chain Adjustment Tool
22. Chain Tensioning Screw
23. nstruction Manual
12. Muffler 24. Guide Bar Cover
m
/
WARNING! This chain saw can be dangerous! Careless or improper
use can cause serious or even fatal injury.
Read and understand the instruction manual before using the chain saw.
Measured maximum kickback valuewithout chain brake for the bar and
chain combination on the label.
There may be more symbols found on your unit other than those listed above. These
symbols may represent compliances, standards, or other matters concerning the product.
2
