TRACTOR - - MODEL NUMBER 2146XLS (96043006700), PRODUCT NO. 960 43 00-67

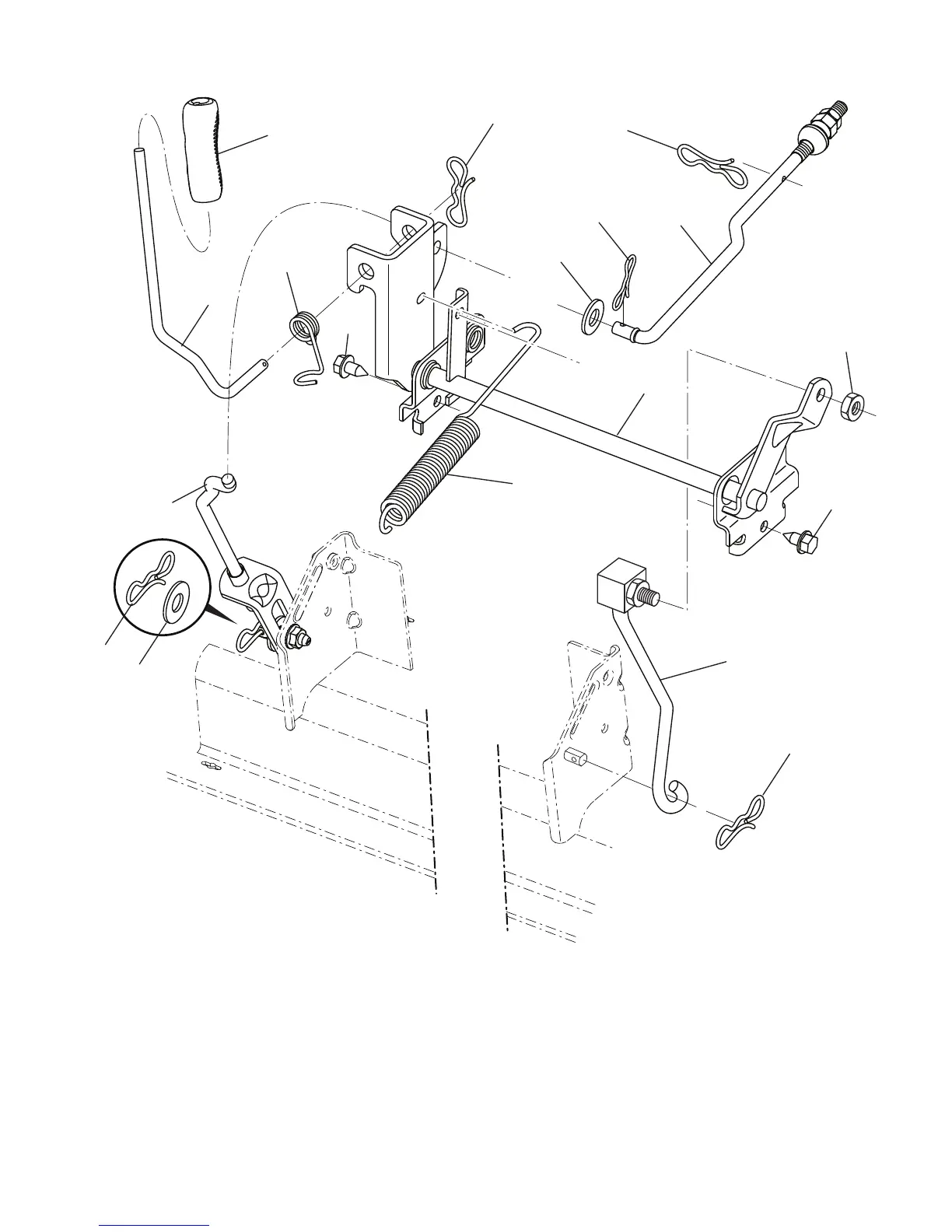

MOWER LIFT
7
3
87
10
88
2
113
90
87
98
97
97
lift-tex_16
91
91
87
100
89
87
2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-30 Lever Lift Handle
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 51-81 Link Lift Susp Mower Rear
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
97 817 00 06-12 Screw 3/8-16 x 3/4
98 532 19 52-70 Link Asm. Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
113 819 17 19-19 Washer 17/32 x1-3/16 x 12 Ga.
