Husqvarna 235F User Manual

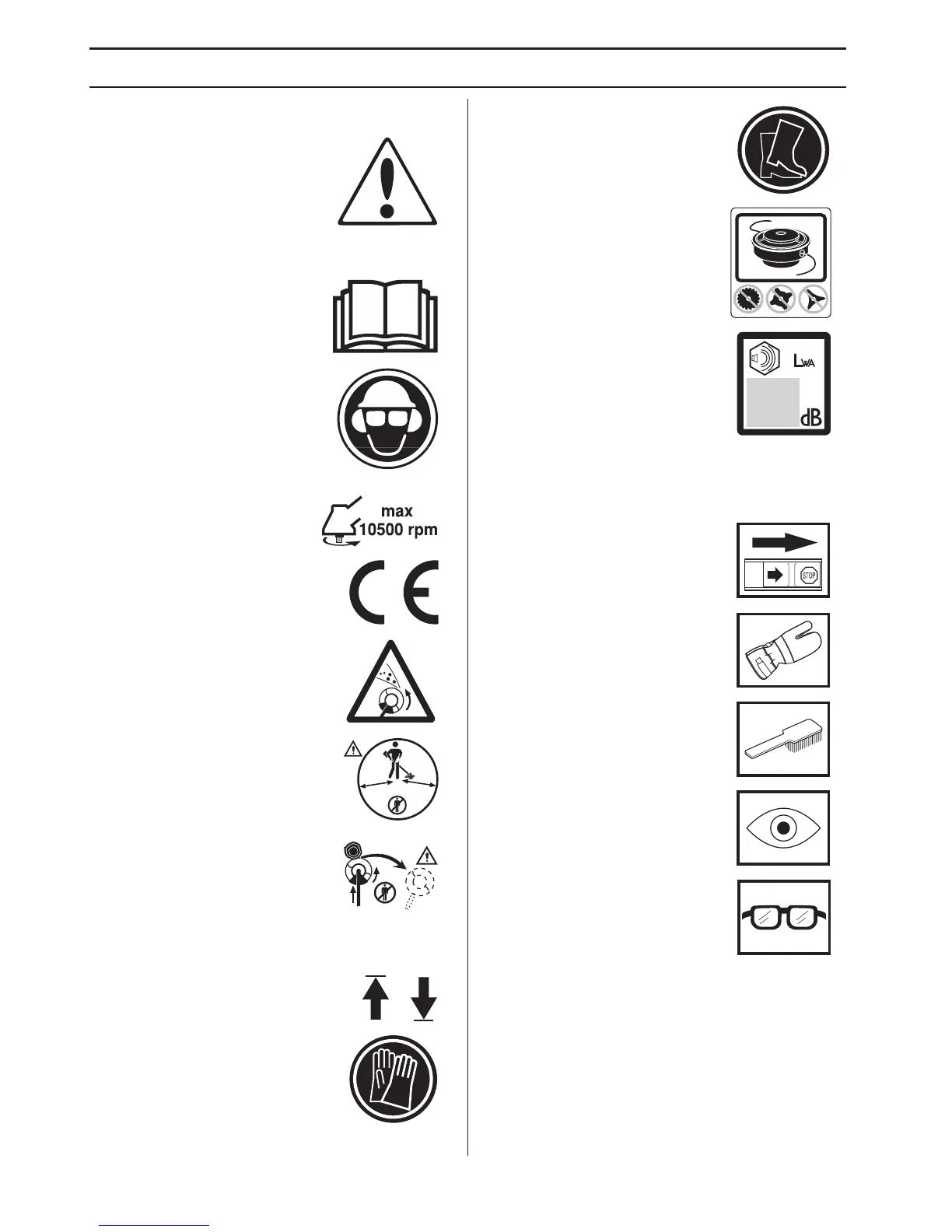

KEY T O SYMBOLS
2 – English
Symbols
W ARNING! Clearing saws,
brushcutters and trimmers can be
dangerous! Careless or incorrect
use can result in serious or fatal
injury to the operator or others. It is
extremely important that you read
and understand the contents of the
operator’s manual.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• A protective helmet where there
is a risk of falling objects
• Approved hearing protection
• Approved eye protection
Max. speed of output shaft, rpm
This product is in accordance with
applicable EC directives.
Watch out for thrown objects and
ricochets.
The operator of the machine must
ensure, while working, that no
persons or animals come closer than
15 metres.
Machines fitted with saw blades or
grass blades can be thrown violently
to the side when the blade comes
into contact with a fixed object. This is
called blade thrust. The blade is
capable of amputating an arm or leg.
Always keep people and animals at least 15 metres from
the machine.
Arrows which show limits for handle
positioning.
Always wear approved protective
gloves.
Wear sturdy, non-slip boots.
Only use non-metallic, flexible
cutting attachments, i.e. trimmer
heads with trimmer cord.
Noise emission to the environment
according to the European
Community’s Directive. The
machine’s emission is specified in
chapter Technical data and on label.
Other symbols/decals on the mac hine refer to
special certification requirements for certain
markets.
Switch off the engine by moving the
stop switch to the STOP position
before carrying out any checks or
maintenance.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Approved eye protection must always
be used.
50FT
15 m
50FT
1
5
m

Husqvarna 235F Specifications

General

Engine Type	2-stroke
Displacement	34.6 cm³
Fuel Tank Volume/Capacity	0.5 L
Shaft Type	Straight
Vibration Level	3.5 m/s²
Power Output	1.3 kW

Summary

Key to Symbols

General Safety Precautions

Personal Protective Equipment

Details required personal protective equipment for safe operation.

Machine's Safety Equipment

Describes the machine's safety equipment and its checks.

Throttle Lockout

Cutting Attachment Guard

Cutting Equipment

How to choose and maintain cutting equipment to reduce risks.

Trimmer Head

Important instructions for using trimmer heads and cords.

Assembly

Fitting the Handlebar

Step-by-step instructions for fitting the handlebar.

Assembling the Cutting Equipment

Instructions for assembling cutting equipment, including warnings.

Fitting Blade Guard, Grass Blade and Grass Cutter

How to fit guards and blades for grass cutting.

Fitting Blade Guard and Saw Blade

Fitting Trimmer Guard and Trimmer Head Trimmy Sll

Fitting Other Guards and Cutting Attachments

Adjusting the Harness and Brush Cutter

Fuel Handling

Fuel Safety

Safety precautions to take before starting the machine regarding fuel.

Transport and Storage

Fuel

Two-Stroke Oil

Mixing Ratio

Recommended fuel and oil mixing ratios for the engine.

Mixing

Step-by-step instructions for mixing petrol and two-stroke oil correctly.

Fuelling

Precautions to take when refuelling the machine to prevent fire.

Starting and Stopping

Check Before Starting

Essential checks to perform before starting the machine for safety.

Starting and Stopping

Overview of the starting and stopping procedures for the machine.

Cold Engine

Warm Engine

For Throttle Handles with a Start Throttle Lock

Starting

The correct method for starting the engine using the starter cord.

Stopping

Simple instructions on how to stop the engine safely.

Working Techniques

General Working Instructions

Basic Safety Rules

Fundamental safety rules to follow while operating the machine.

Working Methods

Blade Thrust

Explains the danger of blade thrust and how to avoid it.

Forestry Clearing Using a Saw Blade

Brush Cutting with a Saw Blade

Grass Clearing Using a Grass Blade

Grass Trimming with a Trimmer Head

Cutting

Maintenance

Carburettor

Adjustment of the Idle Speed

Adjusting the Start Throttle Speed

Muffler

Air Filter

Cleaning the Air Filter

Spark Plug

Maintenance Schedule

A schedule outlining daily, weekly, and monthly maintenance tasks.

Technical Data

Approved Accessories 235R, 235FR
