ASSEMBLY
English – 15
1151475-95 Rev. 1 2009-01-16

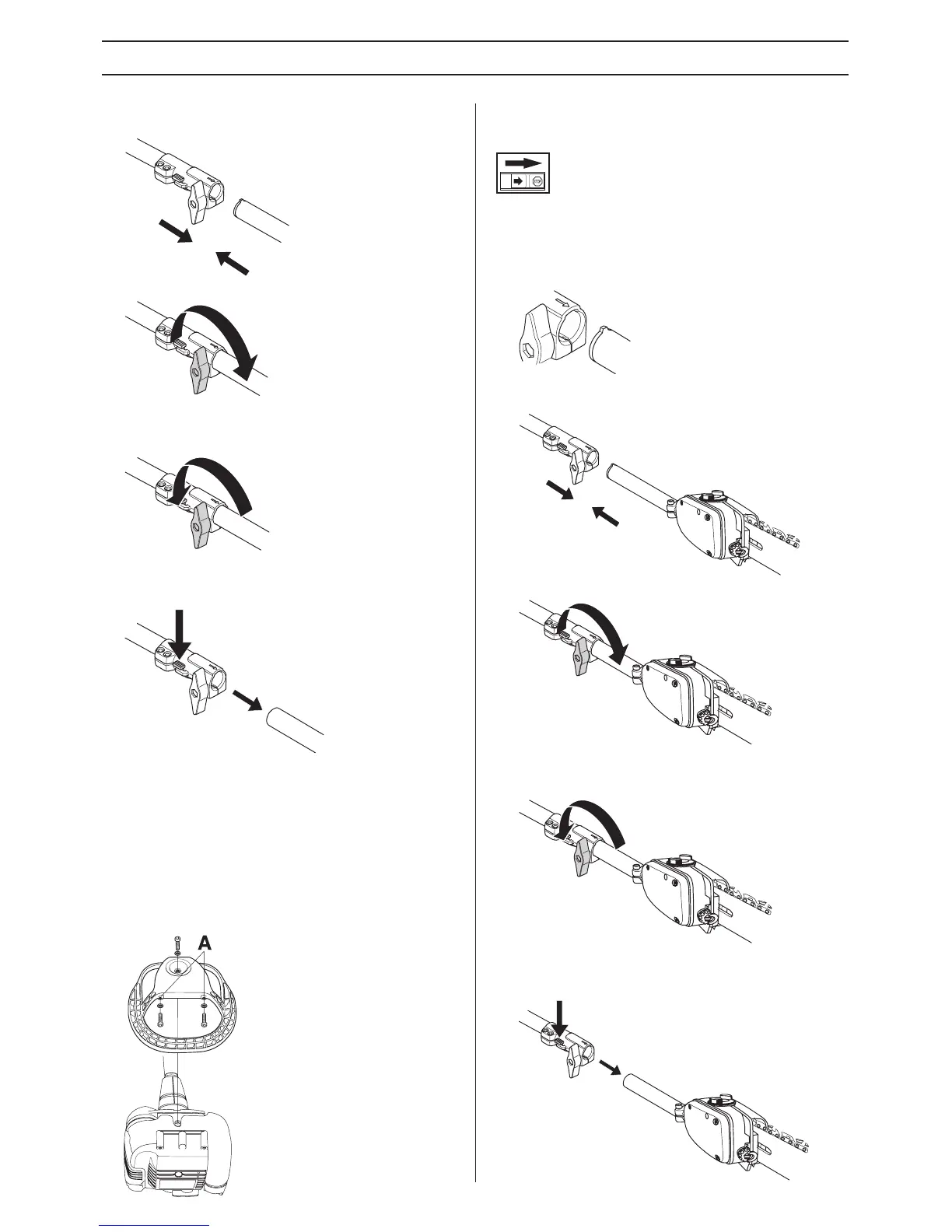

• Push the attachment into the coupling until the attachment
snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling:
Loosen the coupling by turning the knob (at least 3 times).
• Push and hold the button (C). While securely holding the
engine end, pull the attachment straight out of the
coupling.
Fitting the impact guard
(326P5)
If the machine has a protective guard bolted under the engine
this should be removed before the impact guard is
assembled.
Fit the guard using the three screws and washers. Fit the two
short screws in hole A. Tighten the screws to a torque of 4
Nm. After the machine has been in use for around 20 hours,
re-tighten the screws to 4 Nm.
Assembly of the saw attachment
(326P5)
Assembly
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on the
coupling (B).
• Push the attachment into the coupling until the attachment
snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling
• Loosen the coupling by turning the knob (at least 3 times).
• Push and hold the button (C). While securely holding the
engine end, pull the attachment straight out of the
coupling.
C
A
B
