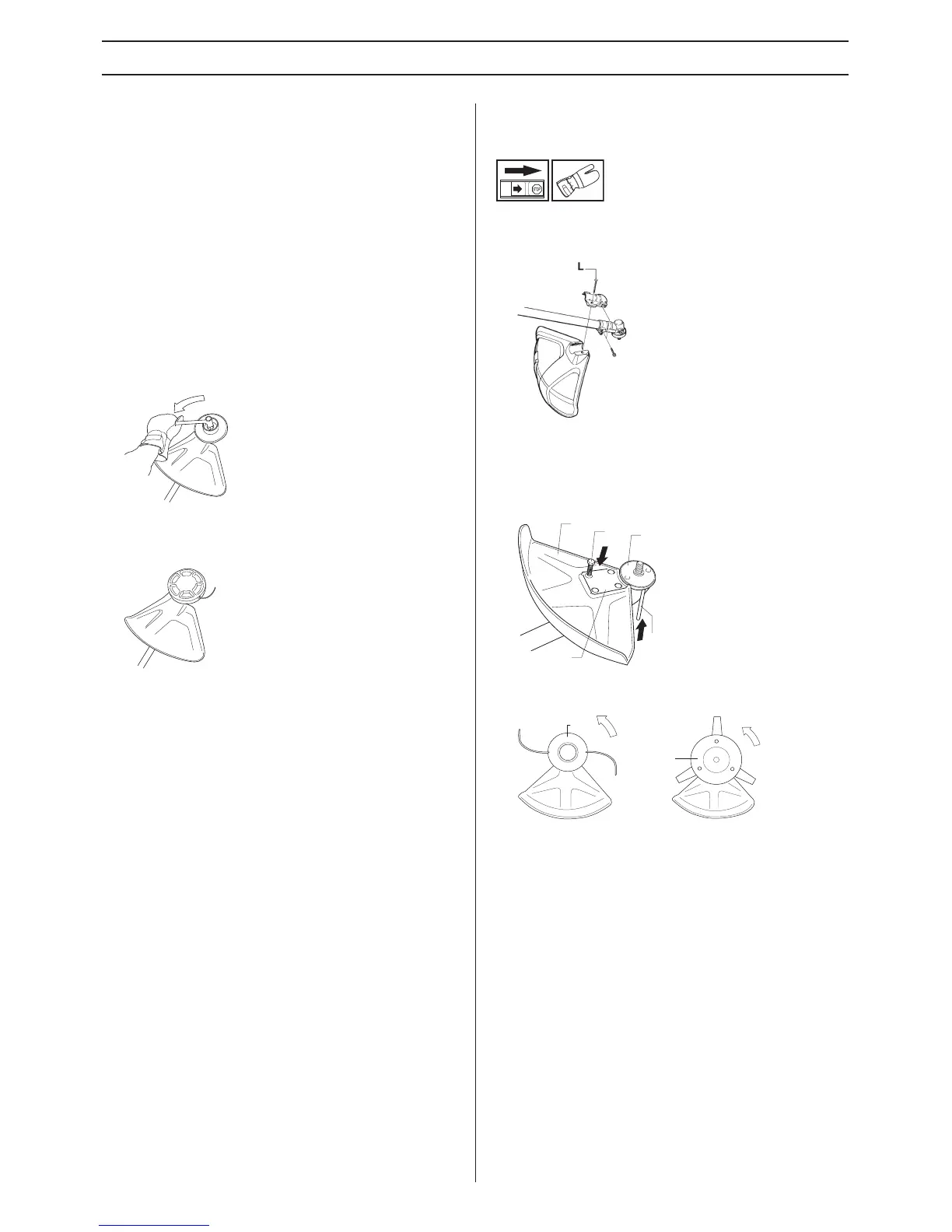

ASSEMBLY
• To fit the trimmer head, first separate the two halves (see
diagram). Proceed as follows:
Insert a finger into the centre hole of the cover (I) while
grasping the cover with your other fingers. Using the index
finger and thumb of your other hand, release the two
catches (J) that engage in the cut-outs in the bottom half
(K). Pull apart the trimmer head, grasping the cover firmly.
• Place the cover (I) and the support flange (F) on the
output shaft.
• Fit the nut (G). Tighten the nut to a torque of 35-50 Nm
(3.5-5 kpm). Use the socket spanner in the tool kit. Grasp
the handle of the spanner as close to the trimmer guard
as possible.
• To tighten the nut, turn the spanner in the opposite
direction to the direction of rotation (Caution! left-hand
thread).
• Fit the bottom half of the trimmer head (K) to the cover (I)
by pressing them together, with the cut-outs on the bottom
half aligned with the catches on the cover.
• To dismantle, follow the instructions in the reverse order.
Fitting other guards and cutting
attachments
• Fit the trimmer guard/combination guard (A) intended for
use with the trimmer head/plastic blades. Hook the guard
onto the fitting on the shaft and secure it with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
• To dismantle, follow the instructions in the reverse order.
