ASSEMBLY
16 – English
1156924-49 REV. 1 2014-05-26

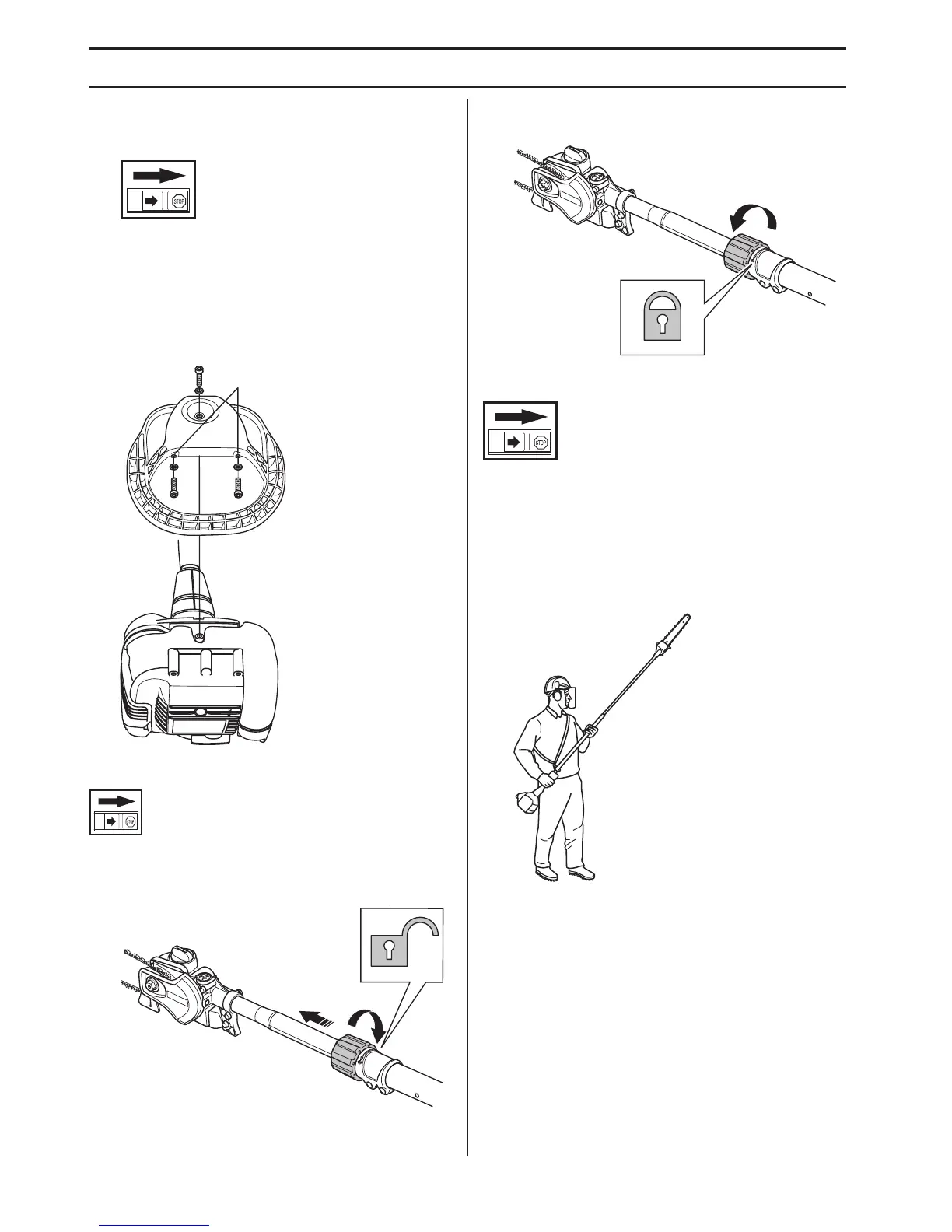

Fitting the impact guard (only
some models)
If the machine has a impact guard bolted under the
engine this should be removed before the impact guard is
assembled.
Fit the guard using the three screws and washers. Fit the
two short screws in hole A. Tighten the screws to a torque
of 4 Nm. After the machine has been in use for around 20
hours, re-tighten the screws to 4 Nm.
Telescopic function
The shaft of the machine is telescopic. To change the
length of the shaft, do the following:
• Undo the knob.
• Pull out the shaft to the desired length.
• Tighten the knob.
Adjusting the harness
You should always use the harness with the machine to
give maximum control over the machine and reduce the
risk of fatigue in your arms and back.
• Put on the harness.
• Hook the harness in one of the hooks on the machine.
• Adjust the length of the harness so that the support
hook is roughly level with your right hip.
